We bundled our top-selling products in our Magswitch Welding Starter Kit Bundle! Included in our Welding Bundle Starter Kit: Magsquare 165, 300 Amp Ground Clamp, and Mini Multi-Angle.

Bundle Includes:

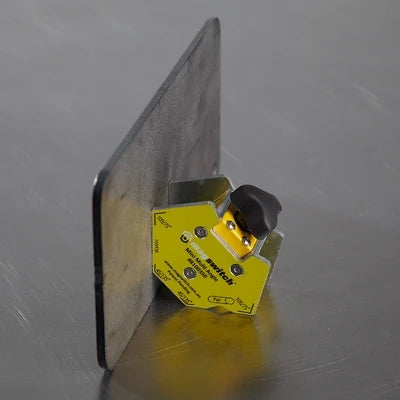

1x MAGSWITCH MINI MULTI ANGLE - 8100350

Our magnetic workholding tool with multiple angles in one! Offers 45/135°, 60/120°, 75/105°, and 90° angles. Switch on and off 76 pounds of magnetic holding force.

FEATURES & BENEFITS

  • Magnet turns completely on and off.
  • Magnet stays clean.
  • Does not use an electrical power source.
  • Holds flat and round surfaces of steel.
  • Accommodates flat sheets and pipes.
  • Offers several common angles.
  • Sturdy and compact.

SPECIFICATIONS

  • Max Breakway: 76 lbs (34 kg)
  • 2:1 Shear Working Load: 6 lbs (2.7 kg)
  • Product Weight: 0.4 lbs (0.2 kg)
  • Dimensions: 2.8 x 1.3 x 2.6 in (71.1 x 33 x 66 mm)
  • Magnetic Pole Footprint: 32 mm x 72 mm

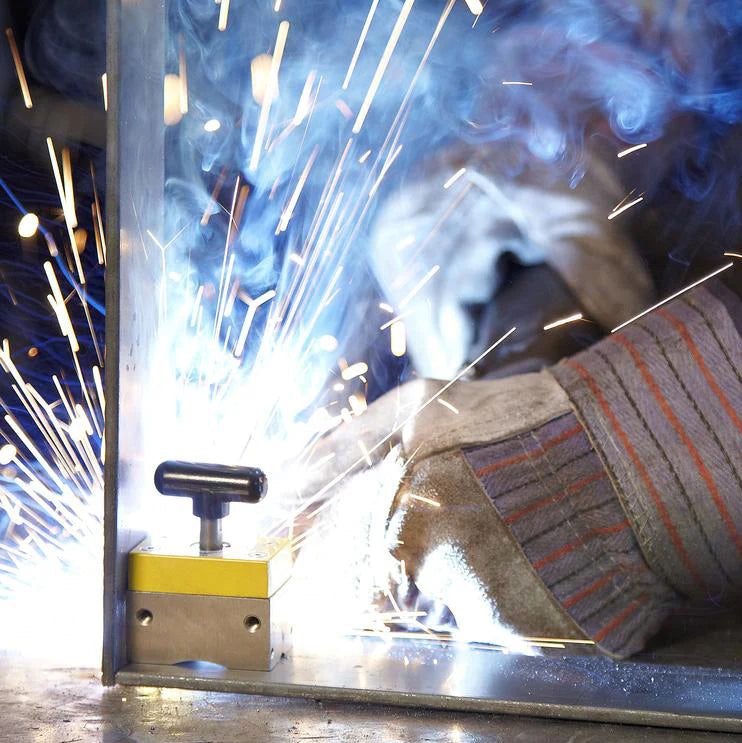

1x MAGSWITCH MAGSQUARE 165 - 8100494

The most versatile workholding and fixturing tool ever! Align and secure flat or round pieces of steel to fabricate angles. Pull corners, secure steel for cutting, use as a guide, make your own fixtures and more! Turn the knob on and off to control 150 pounds of magnetic holding force.

FEATURES & BENEFITS

  • Magnetic field turns completely on and off mechanically.
  • Does not use an electrical power source.
  • Magnet stays clean.
  • Holds flat and round surfaces of steel.
  • Multiplane magnetic grip on five sides.
  • Machined at 90-degrees.
  • Pre-tapped holes on four sides for mounting.

SPECIFICATIONS

  • Max Breakaway: 150 lbs / 68 kg
  • Full Saturation Thickness: 0.25 in / 6.35 mm
  • 2:1 Shear Working Load: 18.5 lbs / 8.4 kg
  • Product Weight: 0.7 lbs / 0.31 kg
  • Dimensions: 1.9 x 1.2 x 2.5 in / 48.2 x 30.4 x 63.5 mm
  • Magnetic Pole Footprint: 48 mm x 31 mm

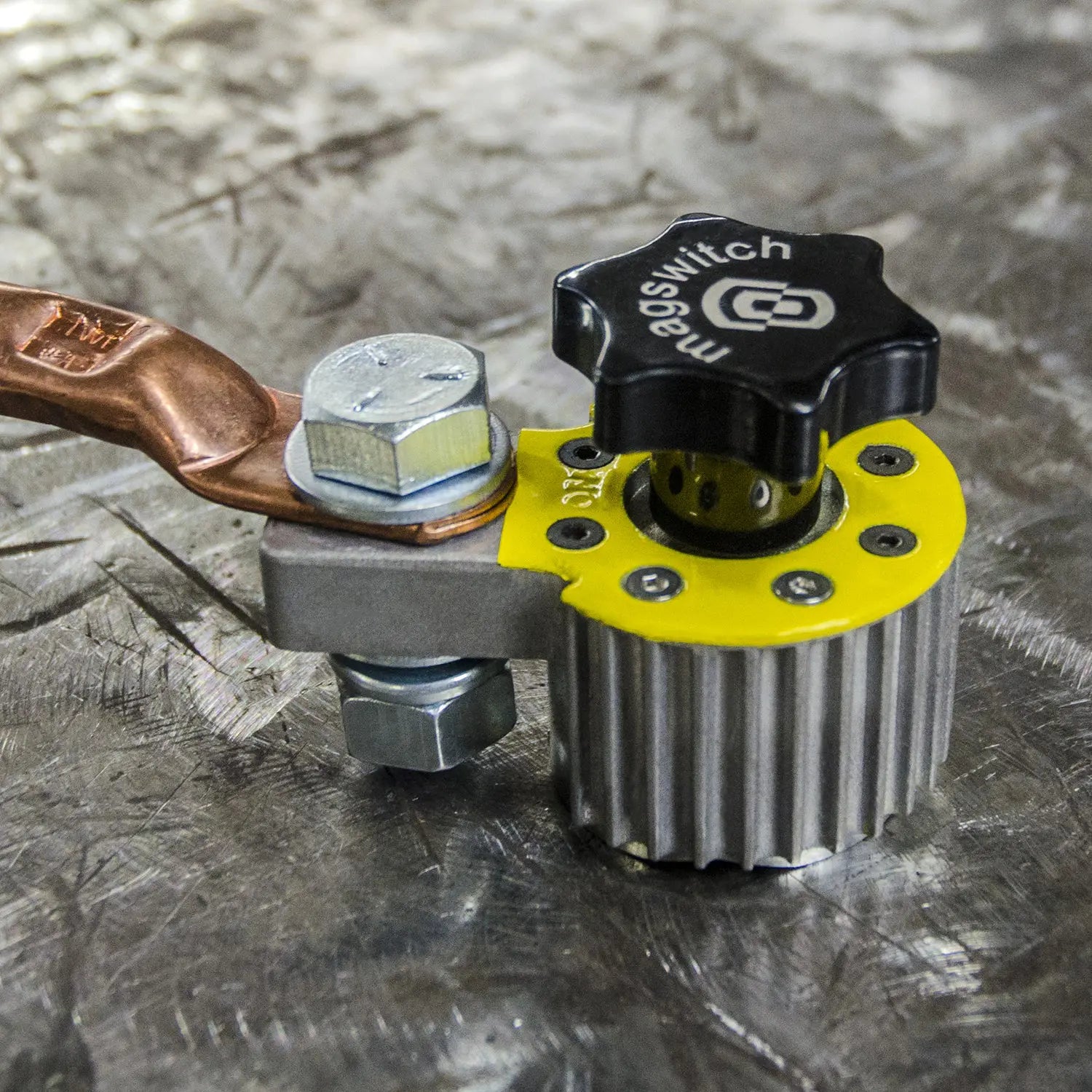

1x 300 AMP MAGNETIC WELDING GROUND CLAMP - 8100746

Allows welders to quickly set up, weld, and move on to the next job. Simply place it on a clean work surface, turn it on, and start welding.

FEATURES & BENEFITS

  • Optimized fin design lowers the temperature by almost 27%.
  • No more searching for or creating a ground location.
  • Grounds instantly.
  • Turn on the Magswitch and start welding.
  • Stays clean.
  • Turn off the Magswitch and wipe away debris.
  • Reusable – saves welders time and money.
  • Quick and easy connect and disconnect.
  • Easily attaches to flat or round surfaces.
  • No more tacking on tabs in large sheet-weld or pipe jobs.

SPECIFICATIONS

  • Max Breakaway: 90 lbs / 40 kg
  • Product Weight: 0.9 lb / 0.4 kg
  • Dimensions: 2.9 x 1.9 x 2.3 in / 73.1 x 49 x 57.3 mm
  • Magnetic Pole Footprint: 40 mm diameter
