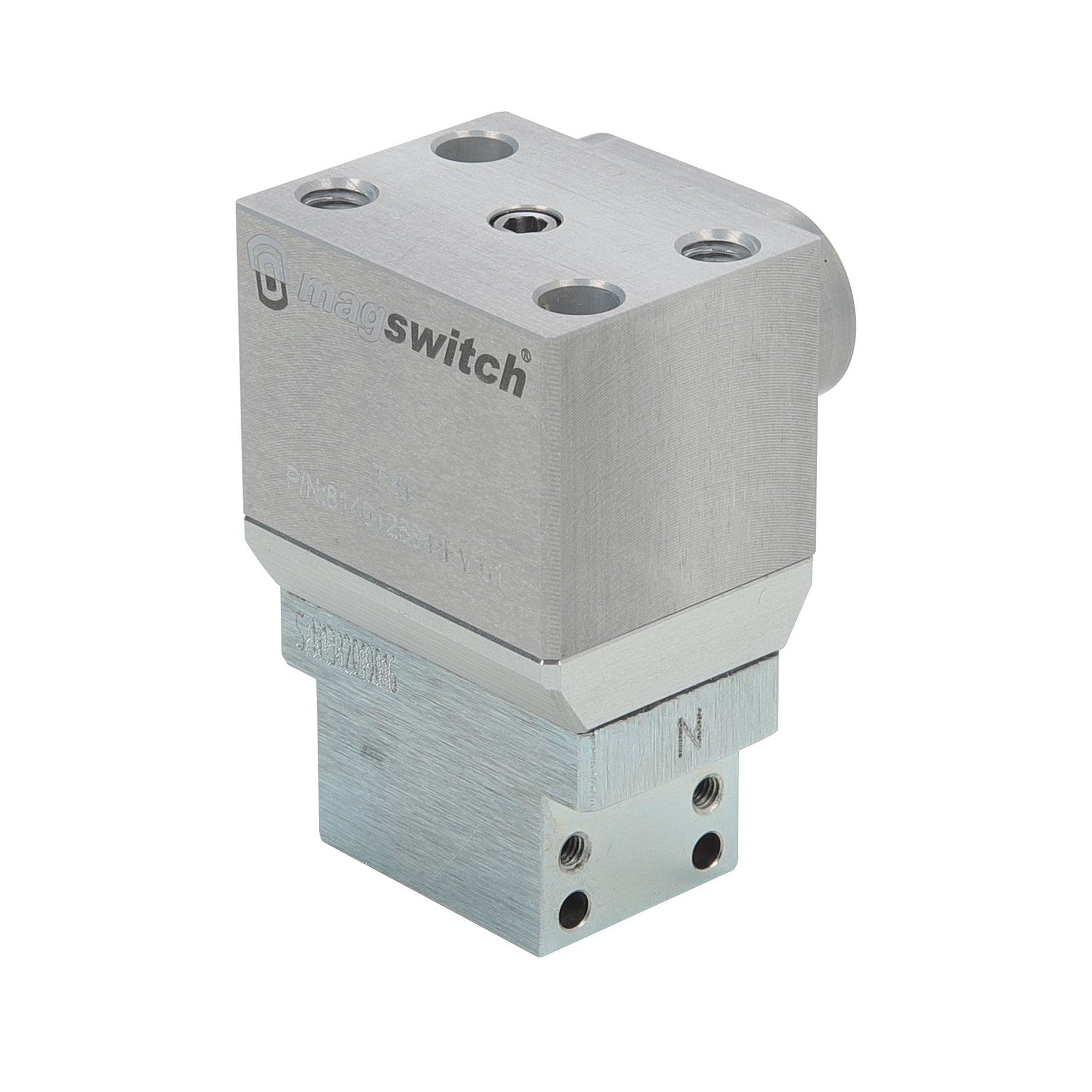

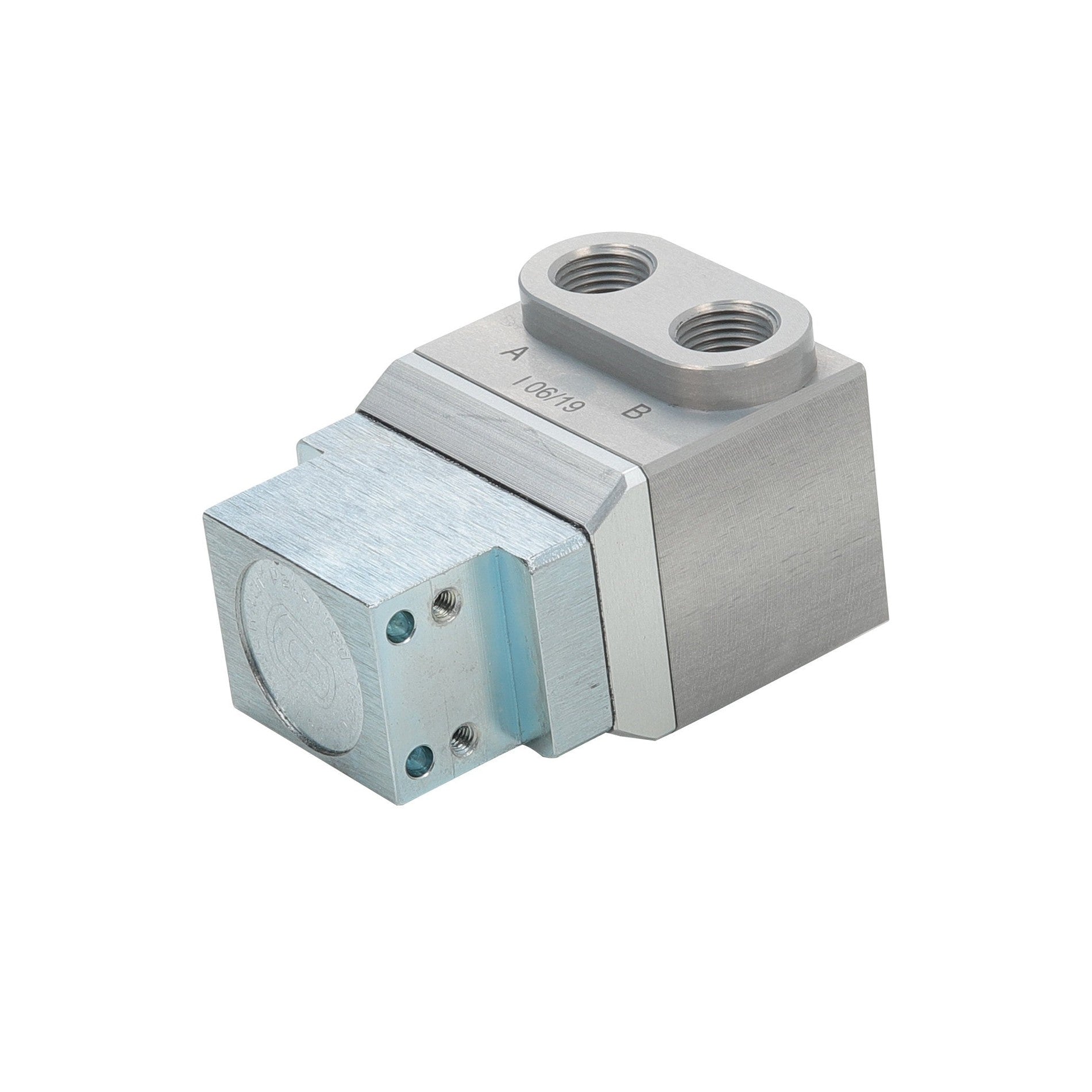

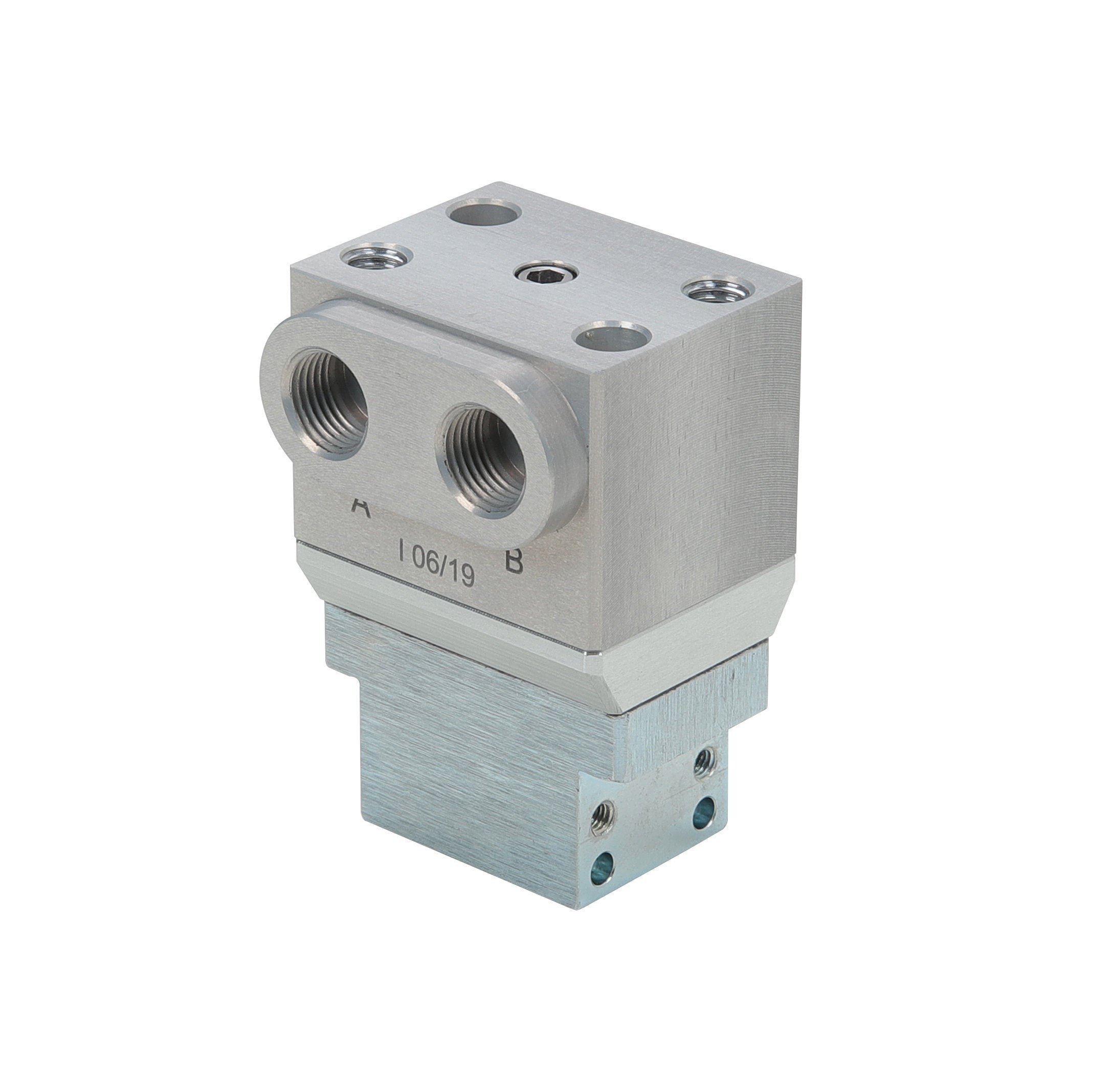

Magswitch T20 - 81401258

Magswitch T20 - 81401258, , Mag-Tools,Mag-Tools - Magswitch Tools
Magswitch T20 - 81401258, , Mag-Tools,Mag-Tools - Magswitch Tools
Magswitch T20 - 81401258, , Mag-Tools,Mag-Tools - Magswitch Tools

Magswitch T20 - 81401258

Write a review
$1,926.00
$1,926.00
Shipping calculated at checkout.
Quantity must be 1 or more

The Magswitch T20 is compact and powerful, boasting cutting edge technology enhancements and precision mounting interfaces. This tool is great for fixtures, pin locating, and thin part material handling. Additional custom pole shoe geometry allows for extreme flexibility in applications. This tool is a precision fit for your next project!

FEATURES & BENEFITS

  • Larger airports (G1/8) for increased compatibility and robust connections
  • Manufactured to precision tolerances with top-face NAAMS mounting
  • Tool is equipped with externally accessible manual override
  • 54x36x32.5 dimension and Maximum Breakaway of 75.4 lbs/34kg*
  • In case of power loss and maintenance inspections, the external manual override is included which saves the day!

ACCESSORIES (Sold Separately)

Product SKU Product Name
8800864 T20 Prox Cap Kit
8800840 Standard Pole Shoe Kit T20
8800906 T20 Pin Clamp Pole Shoe Kit
8800878 T20 Thin Optimized Pole Shoe Kit
88001122 PSK, T20, 135deg V-CUT POLE SHOE
88001444 ARMOR KIT, T20, STANDARD BIN PICKING
88001445 PSK, T20, FLAT POLE SHOES. ARMOR READY
88001446 PSK, T20, 135deg V-CUT POLE SHOES, ARMOR READY
88001447 PSK, T20, 155deg V-CUT POLE SHOES, ARMOR READY
8800997 BRACKET KIT, T20, REPLACE AR20 NAAMS KNS
8800999 BRACKET KIT, T20, REPLACE AR20 NAAMS, TOP HOLES
8800998 BRACKET KIT, T20, REPLACES AR20 NAAMS KNE
88001016 BRACKET KIT, T20, REPLACES AR20 NAAMS, FRONT HOLES

*Pole Shoes are required. Not Included with base tool.

SPECIFICATIONS

Maximum Breakaway Force 1,2 75lbs / 34kg
Maximum Shear 1,2 22lbs / 10kg
Minimum Thickness for De-Stack 3 0.118in / 3.0mm
Overall Height 2.1in / 54.0mm
Overall Length 1.4in / 36.0mm
Overall Width 1.3in / 32.5mm
Net Weight 0.42lbs /0.19kg
Magnetic Pole Footprint 1.4×0.8in / 36.0×21.0mm
Max Allowable Pressure 90psi / 0.62MPa
Material Thickness – mm (in) 0.5
(.020)		 0.6
(.024)		 0.7
(.028)		 0.8
(.031)		 1
(.039)		 1.5
(.059)		 2
(.079)		 3
(.118)		 4
(.157)
Maximum Force – kg (lbs) 4.1
(9.0)		 5.1
(11.2)		 6.5
(14.3)		 8.2
(18.1)		 13.2
(29.1)		 17.9
(39.5)		 25.6
(56.4)		 34.2
(75.4)		 34.2
(75.5)
Required Air Pressure 4 – bar (psi) 3.0
(44)		 3.0
(44)		 2.8
(41)		 2.8
(41)		 2.6
(38)		 2.4
(35)		 2.2
(32)		 2.2
(32)		 2.2
(32)
  • SWL (Safe Working Load) = Maximum Force5/ Safety Force (≥5)
  • 1Determined in laboratory environment on 2” thick SAE1018 Steel with surface roughness 63 micro inches with optimized pole shoes. Many factors contribute to the actual breakaway force and safe working load in each application. Consult a Magswitch Applications Engineer and test the Magswitch in each application before deployment.
  • 2All data applies to unit with flat pole shoes installed.
  • 3Determined with SAE1018 Steel L=200mm W=200mm.
  • 4Values may vary by +/- 5%.
  • 5Maximum forces listed above are not safe lifting forces. Designer must take into account safety factor when specifying tool. Magswitch recommends SWL = 5:1 for most applications.
