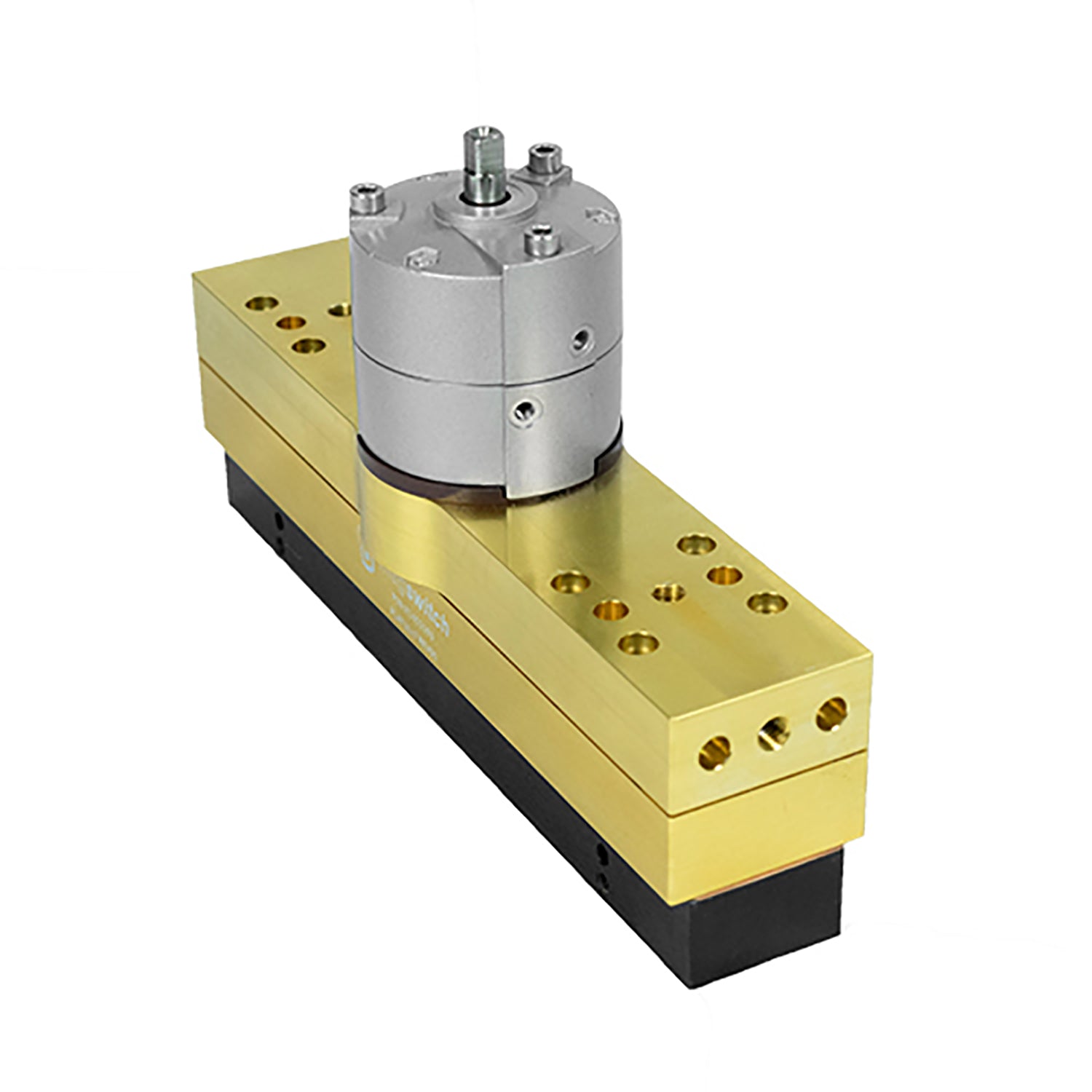

Magswitch PLAY 30x7 brings the power of multiple magnets together with a single point of actuation. Use these tools when handling long pipes or beams. These tools are capable of handling heavyweight applications. With customizable pole elements, you can improve handling in any application.


  • Customizable Contact Surface
  • Deep field technology
  • Ideal for handling long components
  • Saves energy
  • Fail-safe operation

ACCESSORIES (Sold Separately)

Product Code Product Description
8800758 KIT, PLAY30X7 PROX CAP
8800748 Pole Shoe Kit, PLAY30x7, 2mm comb/tooth

*Pole Shoes are required. Not Included with base tool.


Max Breakaway* 782.6lbs / 355kg
Working Load 4:1* 195.6lbs / 88.7kg
Full Saturation Thickness 1/2” / 12.7mm
Max Shear 2:1* 107.6lbs / 48.8kg
Minimum Thickness for De-Stack 3/16″ / 4.76mm
Min Actuation Pressure 26psi / 1.8Bar
Max Actuation Pressure 116psi / 8.0Bar
Off Target Pressure 61psi / 4.2Bar
Volume of Actuator 80cm3
Net Weight 10.6lbs / 4.8kg
Air Port Thread 2x M5x0.8
Mounting Thread 4x Side: Ø5-M5-Ø5 NAAMS


2x Top: Ø8-M8-Ø8 NAAMS

Overall Height 179.8mm
Magnetic Pole Footprint 41 x 258.2mm

* Max Breakaway determined in laboratory environment on 2” thick SAE1018 Steel with surface roughness 63 micro inches. Many factors contribute to the actual breakaway force in each application. Always test the magswitch in each application before deployment. Refer to the magswitch information booklet for more information.

  • SWL (Safe Working Load) = Maximum Force5/ Safety Force (≥5)
  • 1Determined in laboratory environment on 2” thick SAE1018 Steel with surface roughness 63 micro inches with optimized pole shoes. Many factors contribute to the actual breakaway force and safe working load in each application. Consult a Magswitch Applications Engineer and test the Magswitch in each application before deployment.
  • 2All data applies to unit with flat pole shoes installed.
  • 3Determined with SAE1018 Steel L=200mm W=200mm.
  • 4Values may vary by +/- 5%.
  • 5Maximum forces listed above are not safe lifting forces. Designer must take into account safety factor when specifying tool. Magswitch recommends SWL = 5:1 for most applications.
