Magswitch MagSquare 1000 - 8100099

Magswitch MagSquare 1000 - 8100099 - Magswitch
Magswitch MagSquare 1000 - 8100099 - Magswitch
Magswitch MagSquare 1000 - 8100099 - Magswitch
Magswitch MagSquare 1000 - 8100099 - Magswitch

Magswitch MagSquare 1000 - 8100099

1 Review
Regular price
$762.00
Sale price
$762.00
Shipping calculated at checkout.
Quantity must be 1 or more

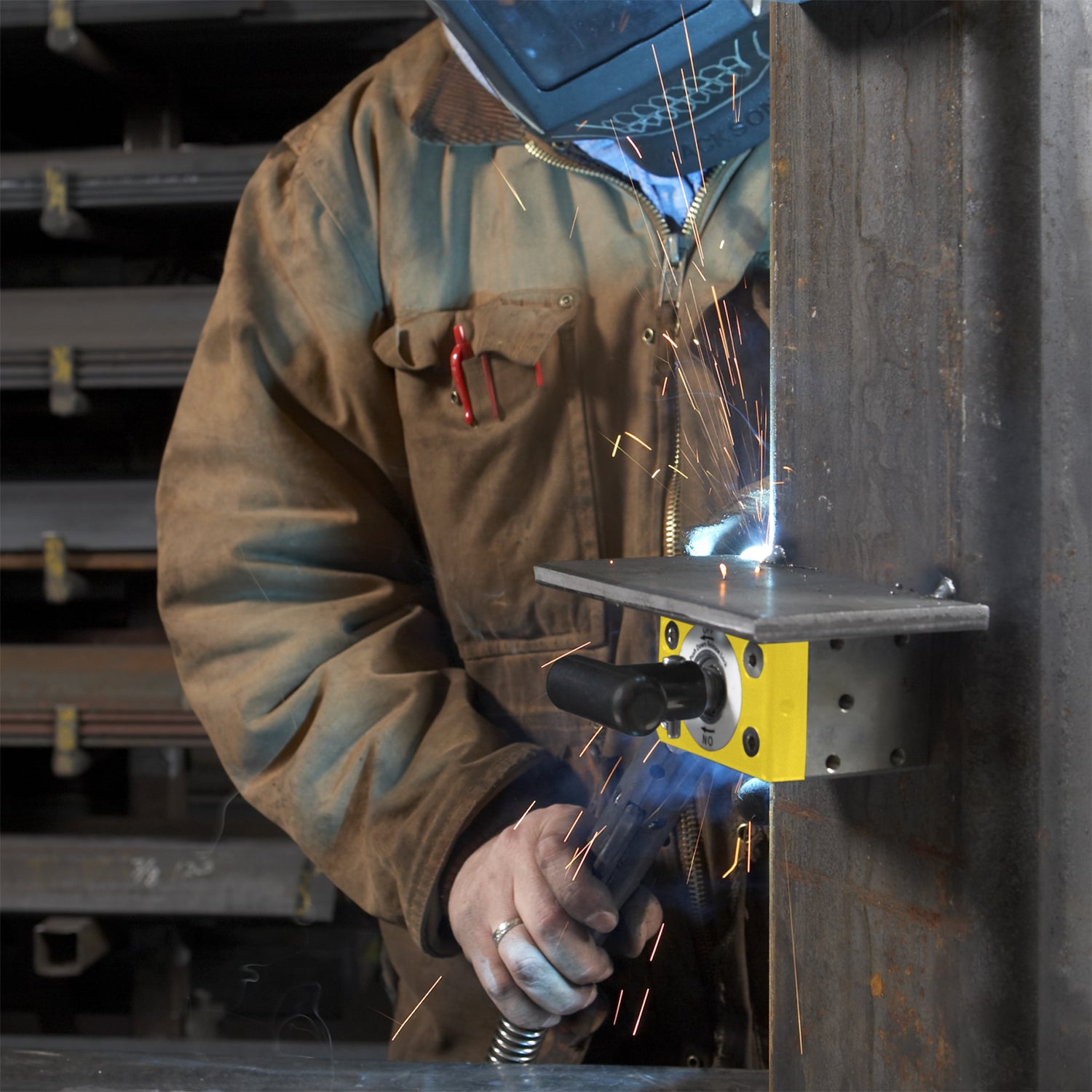

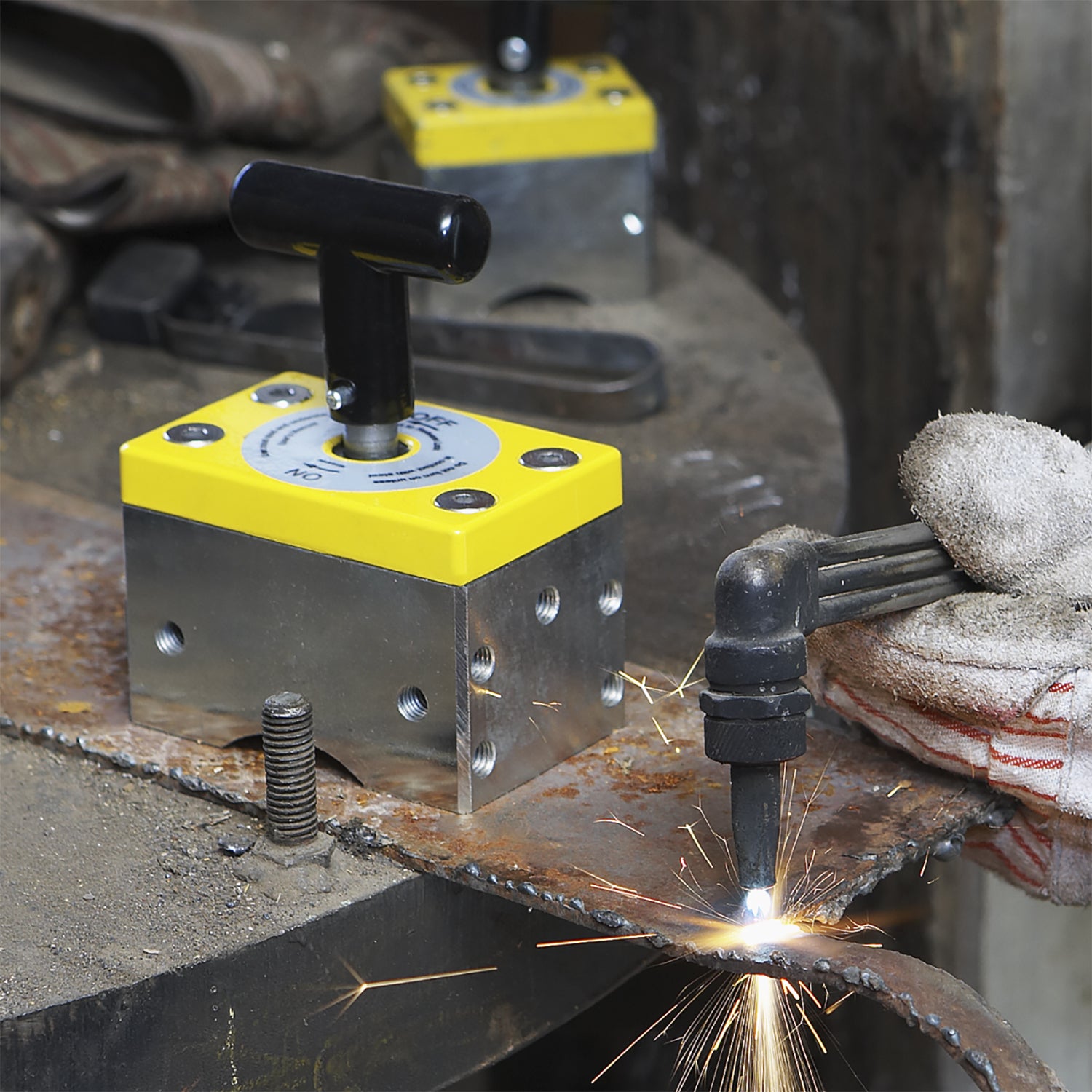

The most versatile workholding and fixturing tool ever! Align and secure flat or round pieces of steel to fabricate angles. Pull corners, secure steel for cutting, use as a guide, make your own fixtures and more! Turn the knob on and off to control 1000 pounds of magnetic hold force.

FEATURES & BENEFITS

  • Magnet turns completely On and Off.
  • Magnet stays clean.
  • Does not use an electrical power source.
  • Holds flat and round surfaces of steel.
  • Multiplane magnetic grip on five sides.
  • Machined at 90-degrees.
  • Pre-tapped holes on four sides for mounting.

SPECIFICATIONS

  • Max Breakaway: 1052 lbs (477.1 kg)
  • Full Saturation Thickness: 0.5'' (13 mm)
  • 2:1 Shear Working Load: 148 lbs (67 kg)
  • Product Weight: 7.9 lbs (3.58 kg)
  • Dimensions: 4.3 x 2.8 x 5.8 in (76.2 x 71.1 x 147.3 mm)
  • Magnetic Pole Footprint: 72 mm x 108 mm
