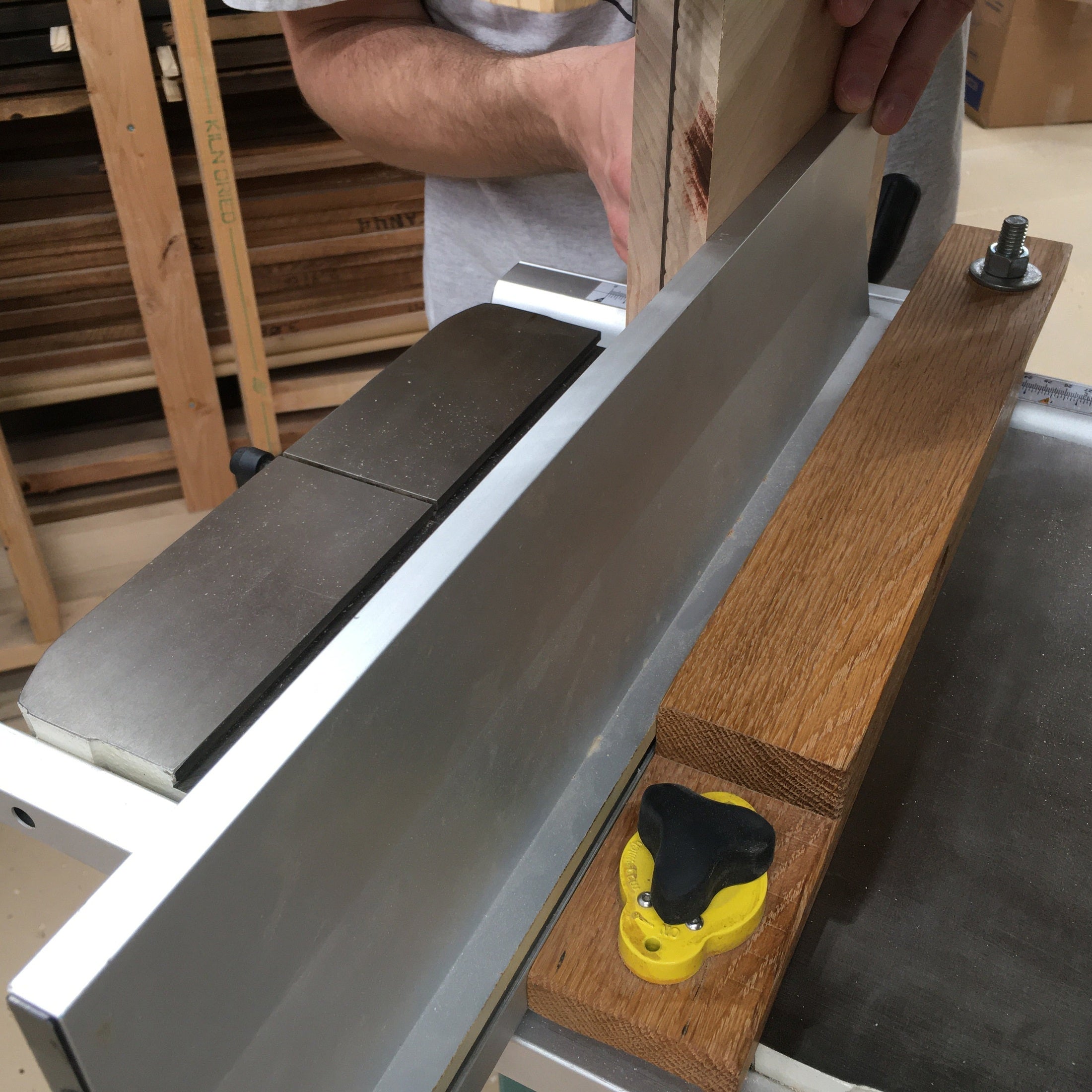

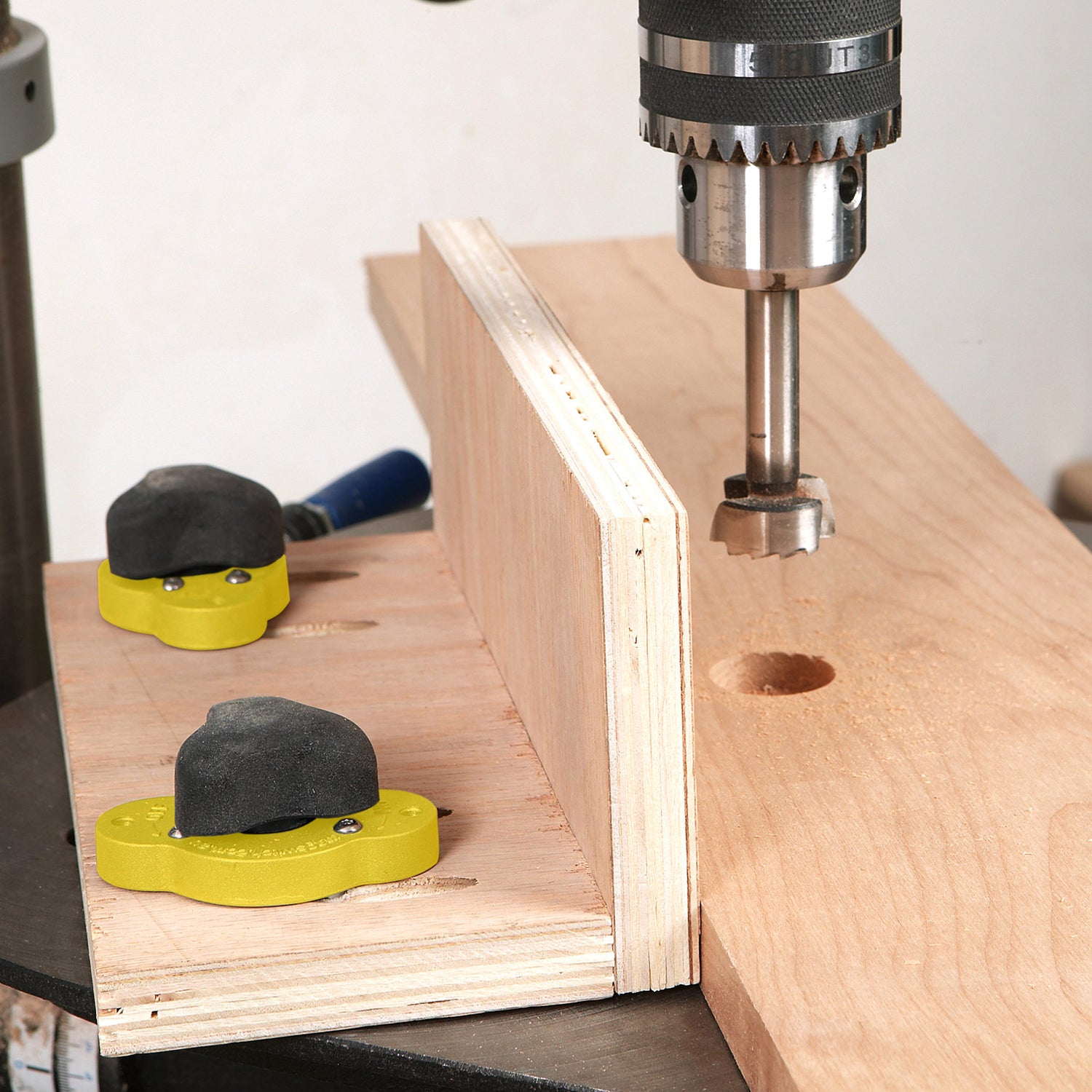

Magnetic fixturing clamp will secure your fixture into place. Rotate the knob to turn on and off 133 pounds of magnetic hold force. Simply drill a hole in a fixture and place the MagJig in to use for downward pressure clamping.

FEATURES & BENEFITS

• Magnetic field turns completely on and off mechanically.
• Does not use an electrical power source.
• Magnet stays clean.
• Holds flat and round surfaces of steel.
• 3/4" standoff for flush mount.
• Designed with screw holes to add more security in a fixture.
• Excellent for woodworking, welding, and fabrication.

SPECIFICATIONS

• Max Breakaway: 133 lbs (60.3 kg) on 1'' steel
• 2:1 Shear Working Load: 15 lbs (6.8 kg)
• Product Weight: 0.2 lbs (0.1 kg)
• Dimensions: 2.6 x 1.7 x 2.1 in (66 x 43.1 x 53.3 mm)
• Magnetic Pole Footprint: 40 mm x 31 mm

Downloads

MAGJIG 150 Downloads:

• MagJig 150 Spec Sheet
• MagJig 150 STEP File
• MagJig 150 SketchUp Files

Magswitch Downloads:

• Welding & Fabrication Brochure
• Woodworking Brochure
• Magswitch Manual Catalog
