E50 Compliance Device - 88001628

E50 Compliance Device - 88001628
E50 Compliance Device - 88001628
E50 Compliance Device - 88001628
E50 Compliance Device - 88001628
E50 Compliance Device - 88001628
E50 Compliance Device - 88001628
E50 Compliance Device - 88001628
E50 Compliance Device - 88001628
E50 Compliance Device - 88001628

E50 Compliance Device - 88001628

Write a review
Regular price
$430.00
Sale price
$430.00
Shipping calculated at checkout.
Quantity must be 1 or more

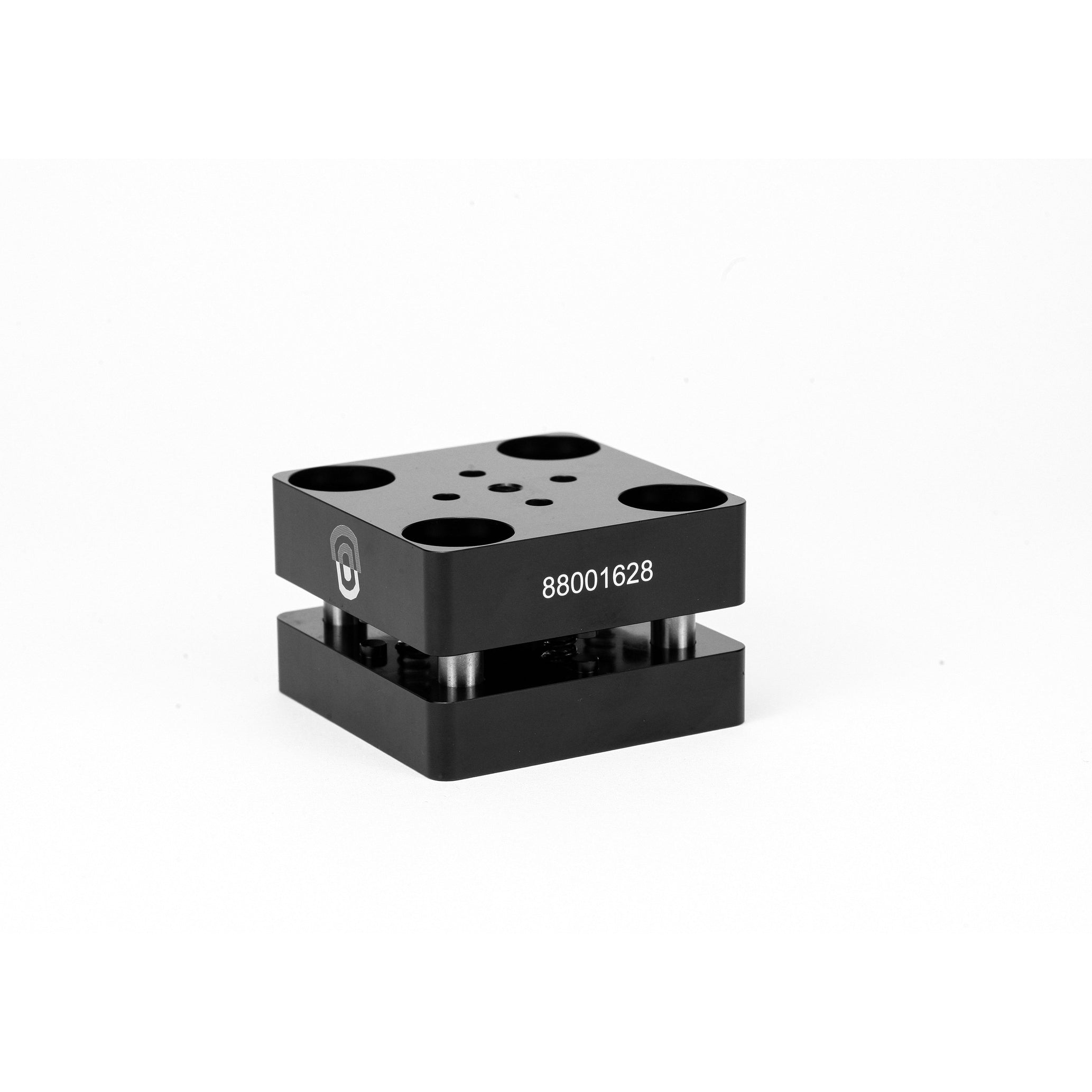

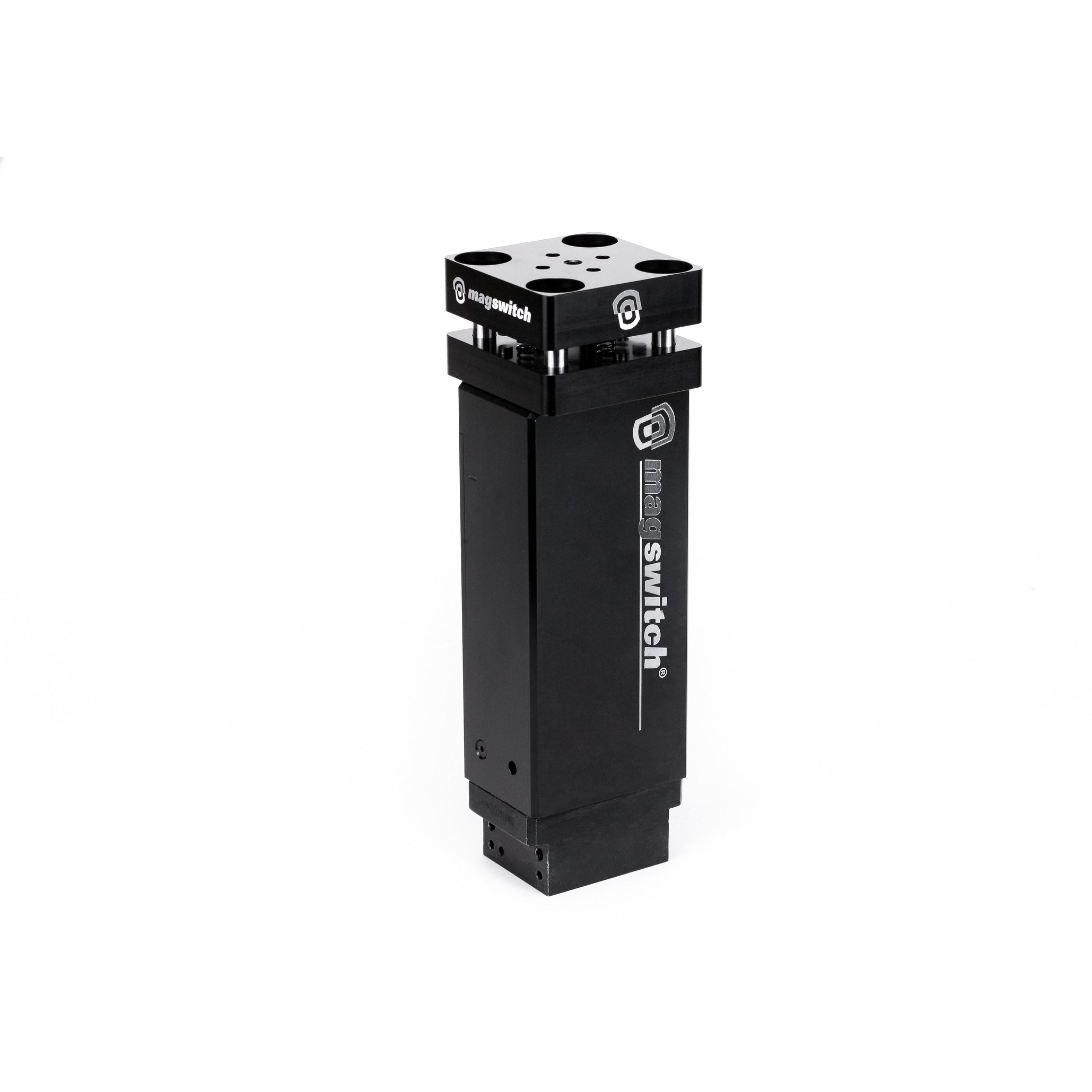

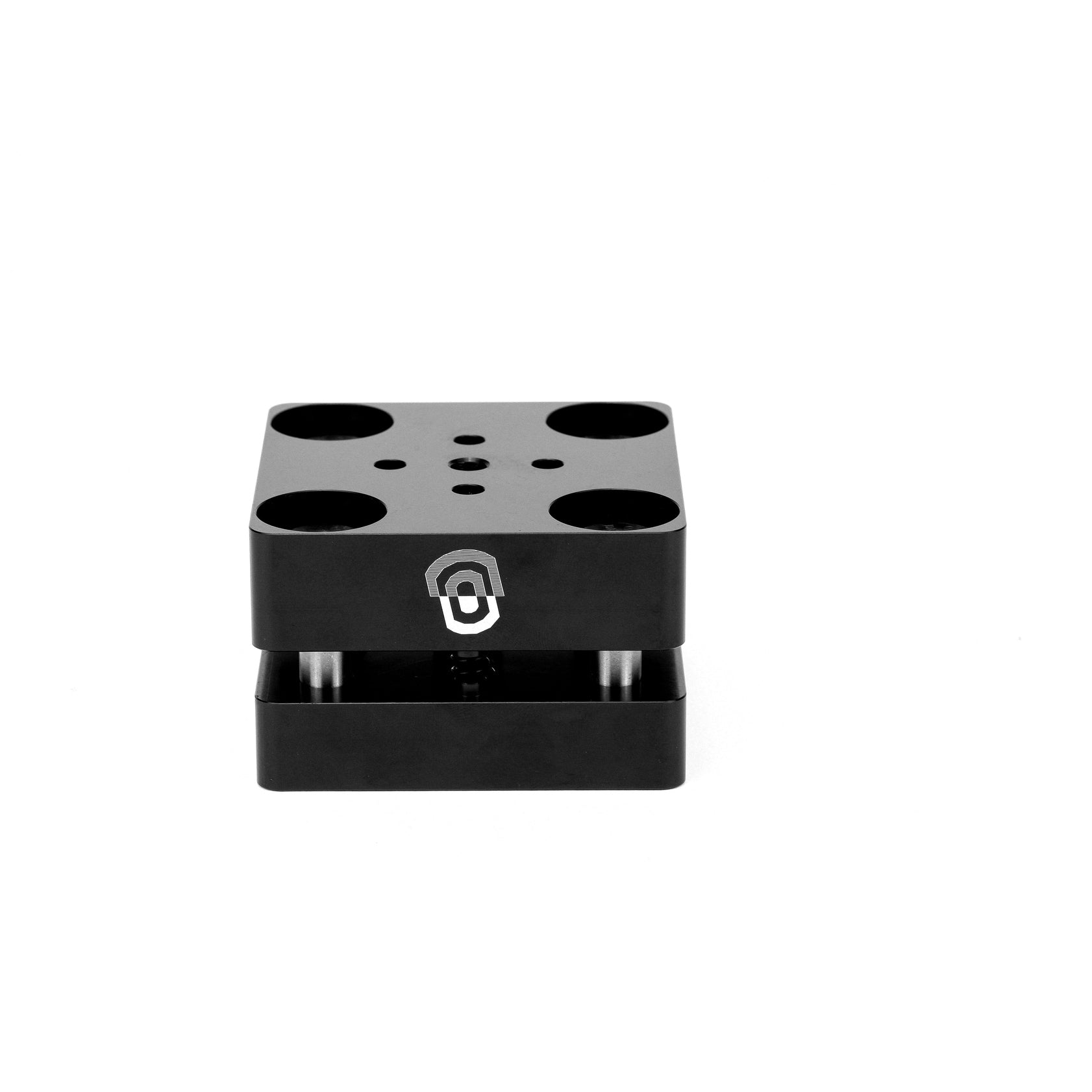

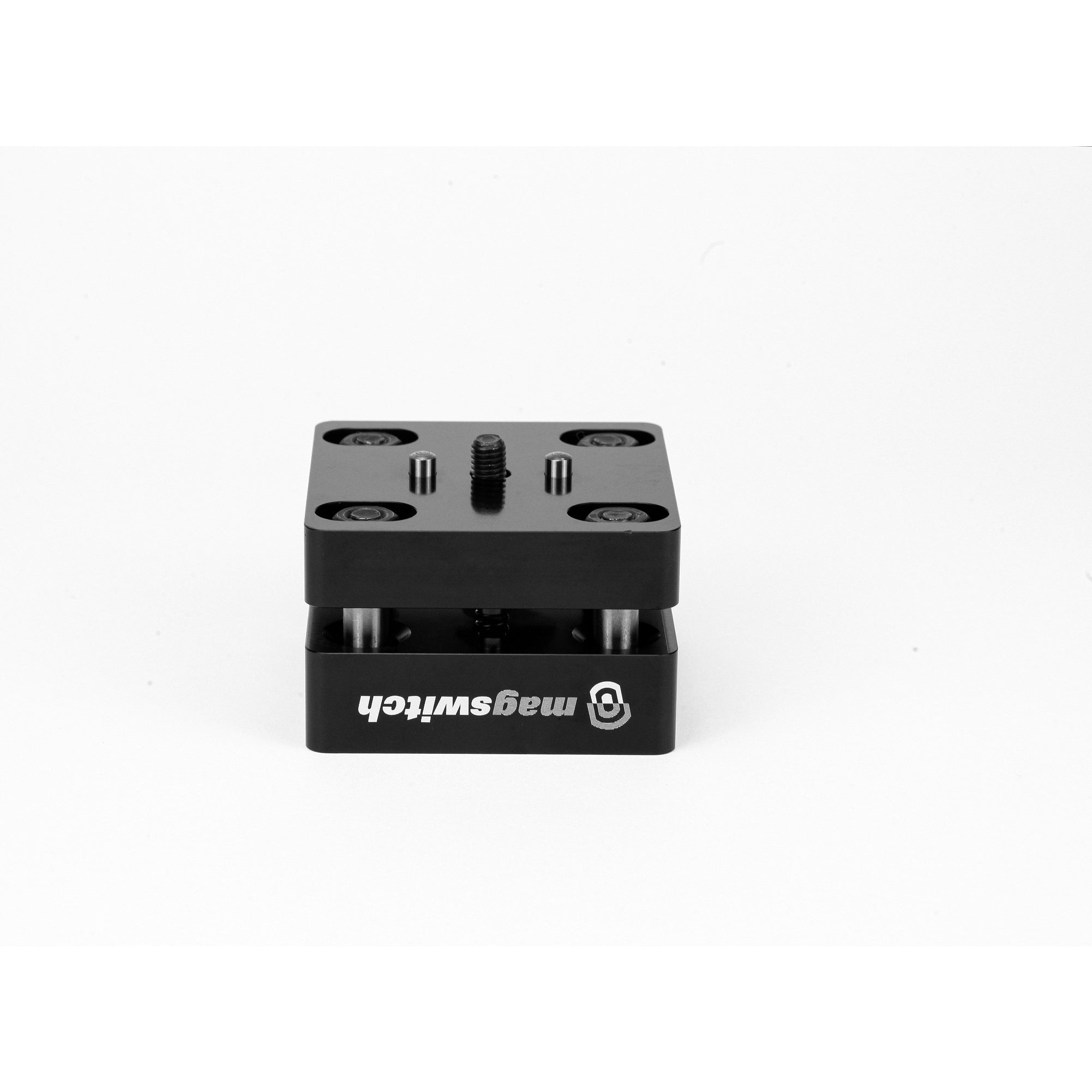

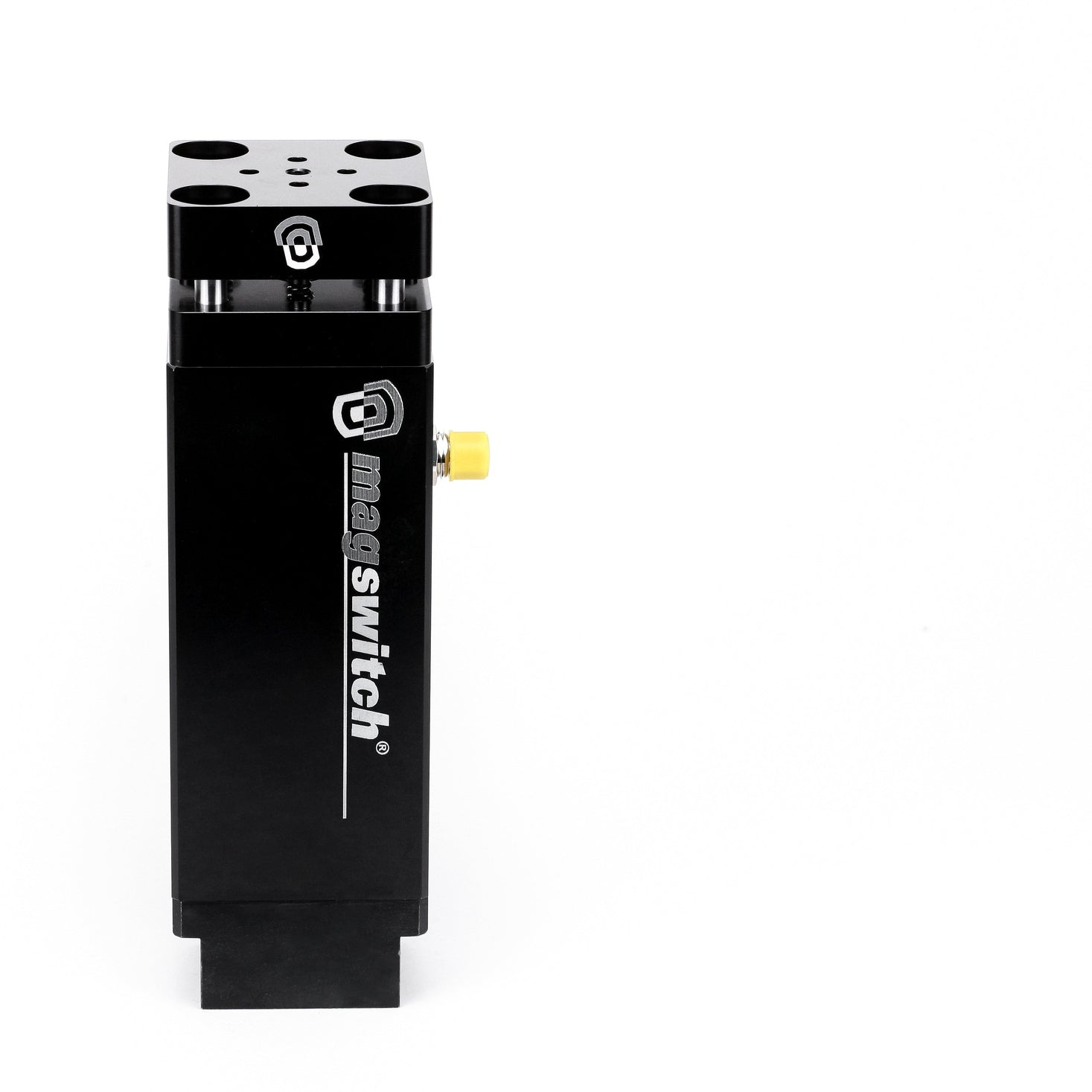

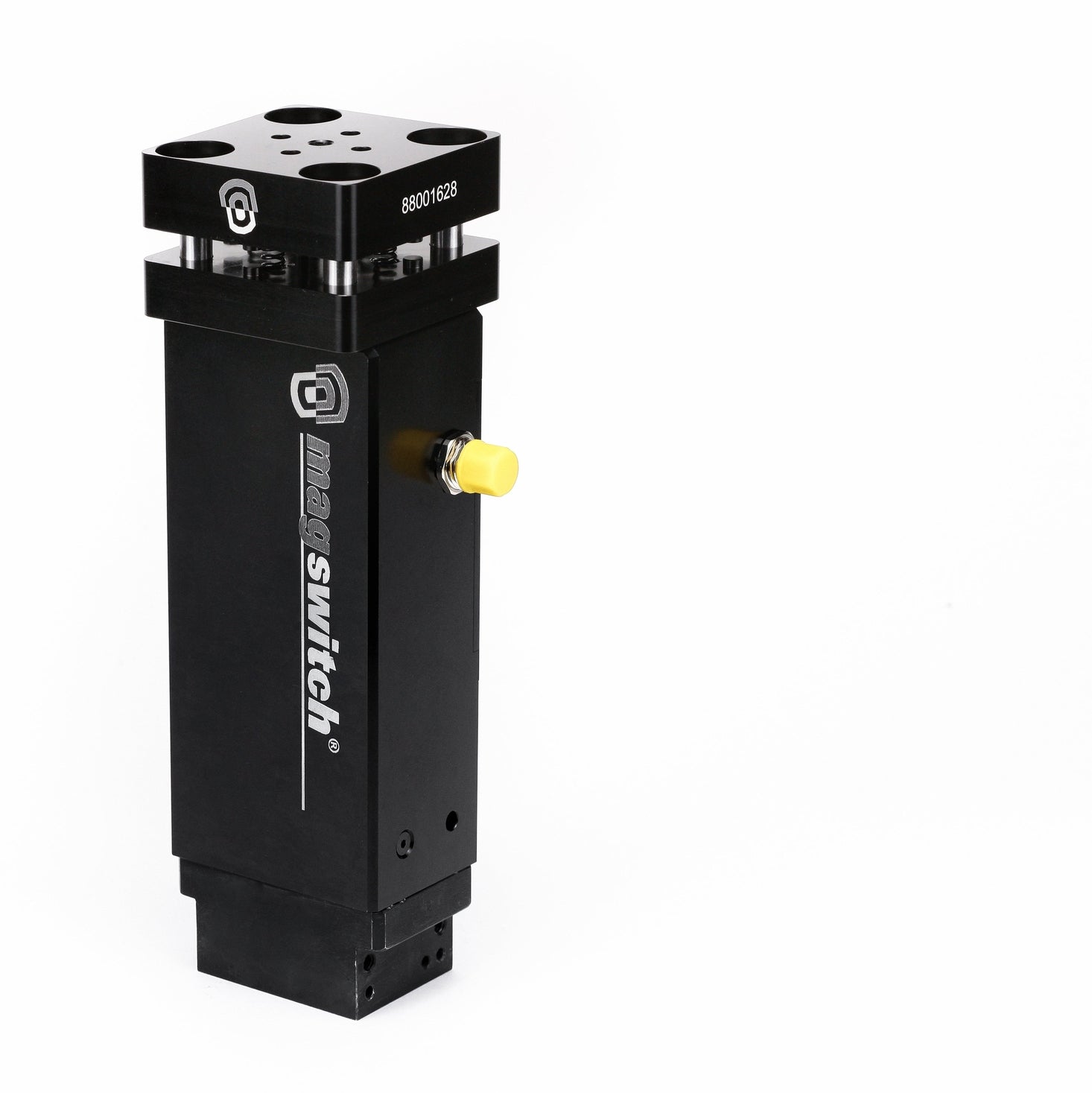

The Magswitch E50 compliance device is an accessory to the E50 magnetic gripper. The E50 compliance device simplifies setup for your end-effector by compensating for part variation and can be used with flat and near-flat contact surfaces. This device delivers angular compliance around the X and Y axes as well as vertical compression about the Z axis. The additional flexibility also improves the handling of sagging sheets ensuring the maximum performance of the E50 magnet and your end of arm tool.

SPECIFICATIONS

Net Weight (Compliance Device Only) 1.65 lb / 0.75 kg
Pitch Forward/Backward (X-axis) +/-4.5°
Roll Left/Right (Y-axis) +/-4.5°
Yaw Clockwise/Counterclockwise (Z-axis) Negligible Movement
Z-axis Compression -5mm
X-axis or Y-axis Lateral Movement +/-1.5mm if in compression
Dimensions (Compliance Device Only) 80mm x 80mm x 50.67mm
  • SWL (Safe Working Load) = Maximum Force5/ Safety Force (≥5)
  • 1Determined in laboratory environment on 2” thick SAE1018 Steel with surface roughness 63 micro inches with optimized pole shoes. Many factors contribute to the actual breakaway force and safe working load in each application. Consult a Magswitch Applications Engineer and test the Magswitch in each application before deployment.
  • 2All data applies to unit with flat pole shoes installed.
  • 3Determined with SAE1018 Steel L=200mm W=200mm.
  • 4Values may vary by +/- 5%.
  • 5Maximum forces listed above are not safe lifting forces. Designer must take into account safety factor when specifying tool. Magswitch recommends SWL = 5:1 for most applications.
