Magswitch E50 – Pick and De-stack Robotic End-of-Arm Tooling (EOAT) for Industrial Automation
Magswitch E50 – Pick and De-stack Robotic End-of-Arm Tooling (EOAT) for Industrial Automation
Magswitch E50 – Pick and De-stack Robotic End-of-Arm Tooling (EOAT) for Industrial Automation
Magswitch E50 – Pick and De-stack Robotic End-of-Arm Tooling (EOAT) for Industrial Automation

E50 - 81401264

Write a review
$6,312.00
$6,312.00
Shipping calculated at checkout.
Quantity must be 1 or more

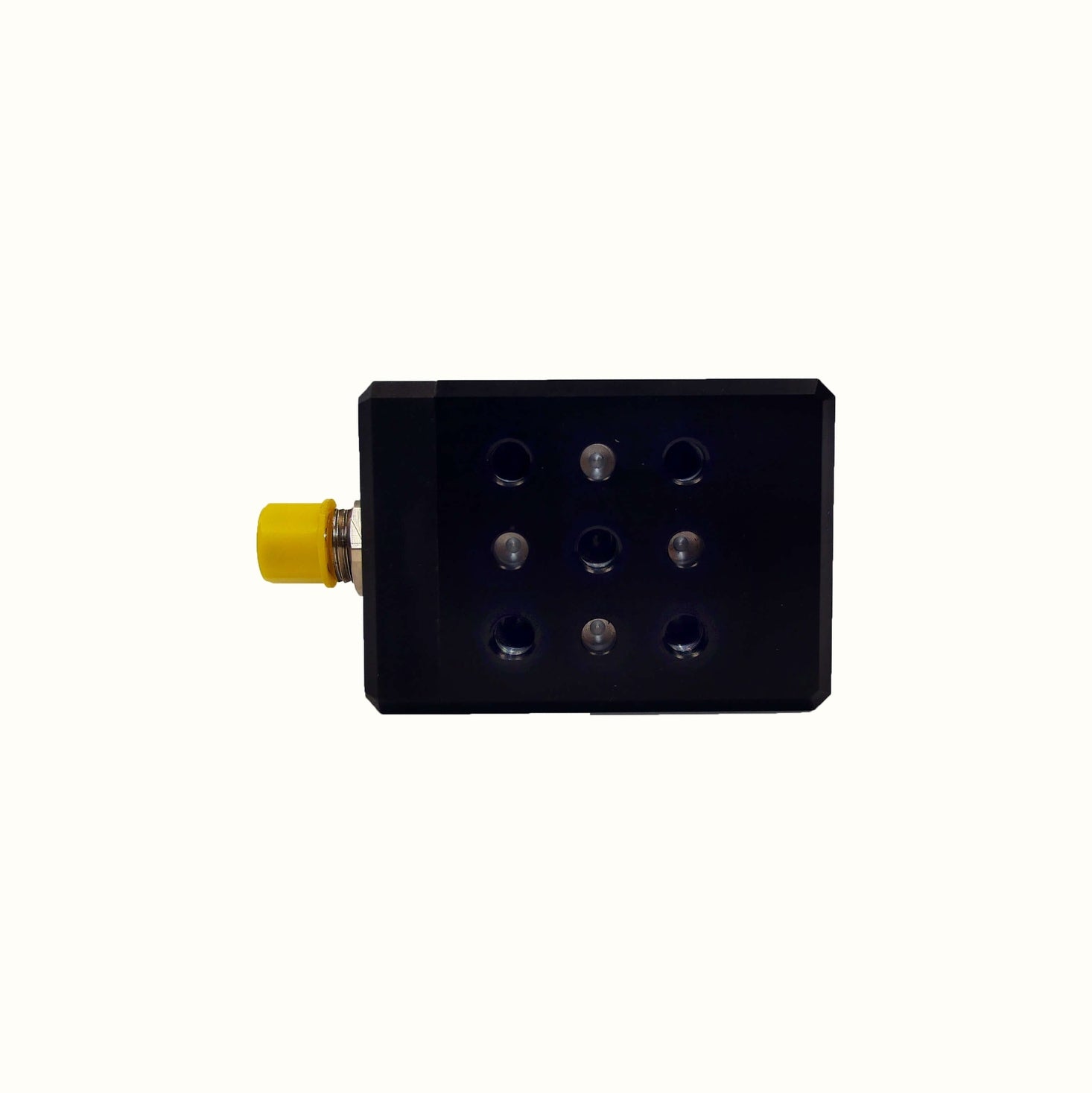

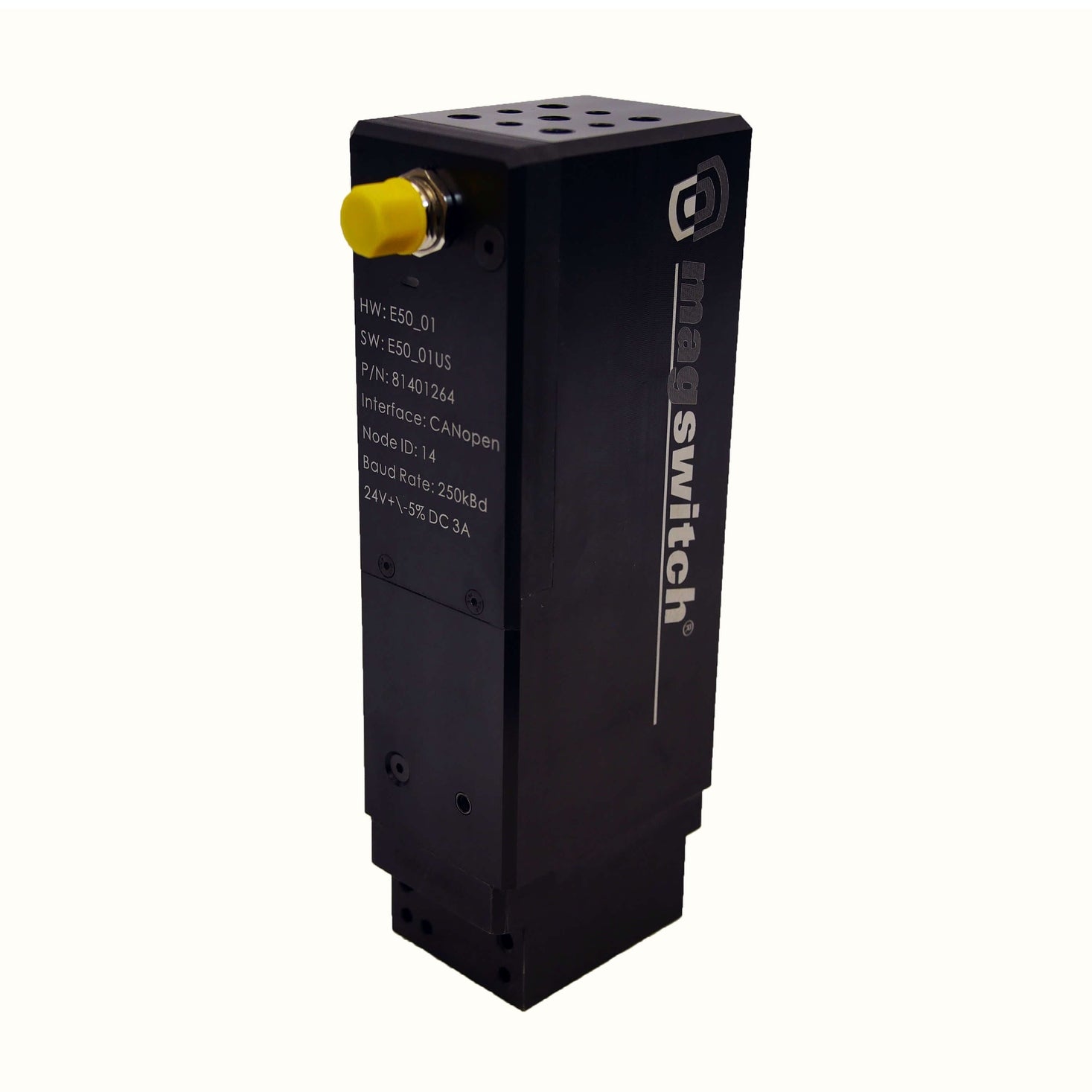

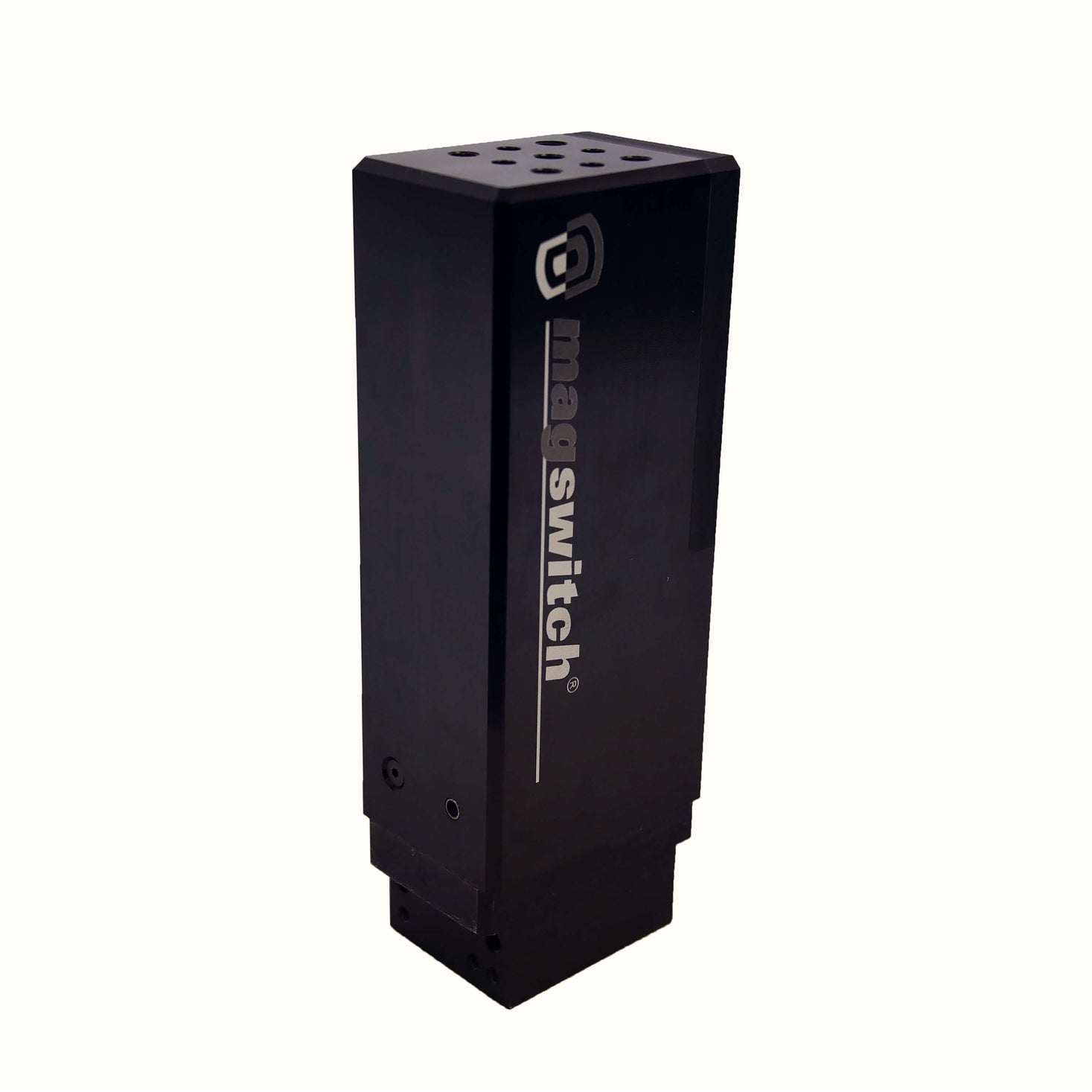

The Magswitch E50 features the all-new Variable Field Output (VFO) allows the tool to de-stack thin material and optimize performance for your component. Once the part is gripped and separated from adjacent parts, the tool can be switched to full power for maximum performance. Once full on the tools can then report back a proper part present verifying a proper pick. Proper part present is an innovative feature enabling customers to teach the tool what a good part looks like, introducing compact and faster error proofing of your process. With a fail-safe built in, the Magswitch electrically actuated line of automation will improve the way things are done!

FEATURES & BENEFITS

  • Slim profile optimized for EOAT applications
  • 24VDC operation below 3A (E50)
  • Serial communication
  • Combine power and communication in one cable
  • Smart tool – Proper Part Present
  • Variable Field Output (VFO)
  • Destack thin parts (VFO)
  • Enhanced bin pick capabilities (VFO and Proper Part Present)

    ACCESSORIES (Sold Separately)

    Product SKU Product Description
    8800837 Standard Pole Shoe Kit E50
    88001419 ARMOR KIT, E50, STANDARD BIN PICKING
    88001420 PSK, E50, FLAT POLE SHOES, ARMOR READY
    88001421 PSK, E50, V-CUT 135deg PS, ARMOR READY
    88001422 PSK, E50, V-CUT 155deg PS, ARMOR READY

    *Pole Shoes are required. Not Included with base tool.

    SPECIFICATIONS

    Maximum Breakaway Force 1,2 465 lb / 211 kg
    Maximum Shear 1,2 161 lb / 73 kg
    Nominal Supply Voltage 24 V DC
    Peak Power Draw 3 A @ 24 V DC
    Net Weight 6.5 lb / 2.95 kg
    Connector Type Male M12x1.0 –5 Pin –A-coded
    Mounting Options Ø6-M8-Ø6 NAAMS pattern(x2)
    M8-Ø6-M8 NAAMS pattern (x4)
    Top Mount for all patterns
    Nominal Supply Voltage 24 V DC
    Material Thickness – mm (in) 0.5
    (.020)    		 1
    (.039)    		 2
    (.079)    		 3
    (.118)    		 4
    (.157)    		 5
    (.197)    		 6
    (.236)    		 7
    (.276)    		 12.7
    (.500)    		 50
    (1.969)
    Maximum Force – kg (lbs) 14.60
    (32.19)    		 37.83
    (83.41)    		 70.10
    (154.5)    		 110.47
    (243.5)    		 153.40
    (338.2)    		 182.90
    (403.2)    		 194.47
    (428.7)    		 202.67
    (446.8)    		 210.50
    (464.1)    		 210.70
    (464.5)
    • SWL (Safe Working Load) = Maximum Force5/ Safety Force (≥5)
    • 1Determined in laboratory environment on 2” thick SAE1018 Steel with surface roughness 63 micro inches with optimized pole shoes. Many factors contribute to the actual breakaway force and safe working load in each application. Consult a Magswitch Applications Engineer and test the Magswitch in each application before deployment.
    • 2All data applies to unit with flat pole shoes installed.
    • 3Determined with SAE1018 Steel L=200mm W=200mm.
    • 4Values may vary by +/- 5%.
    • 5Maximum forces listed above are not safe lifting forces. Designer must take into account safety factor when specifying tool. Magswitch recommends SWL = 5:1 for most applications.
