E30 - 81401263

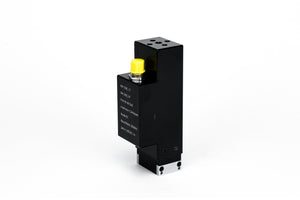

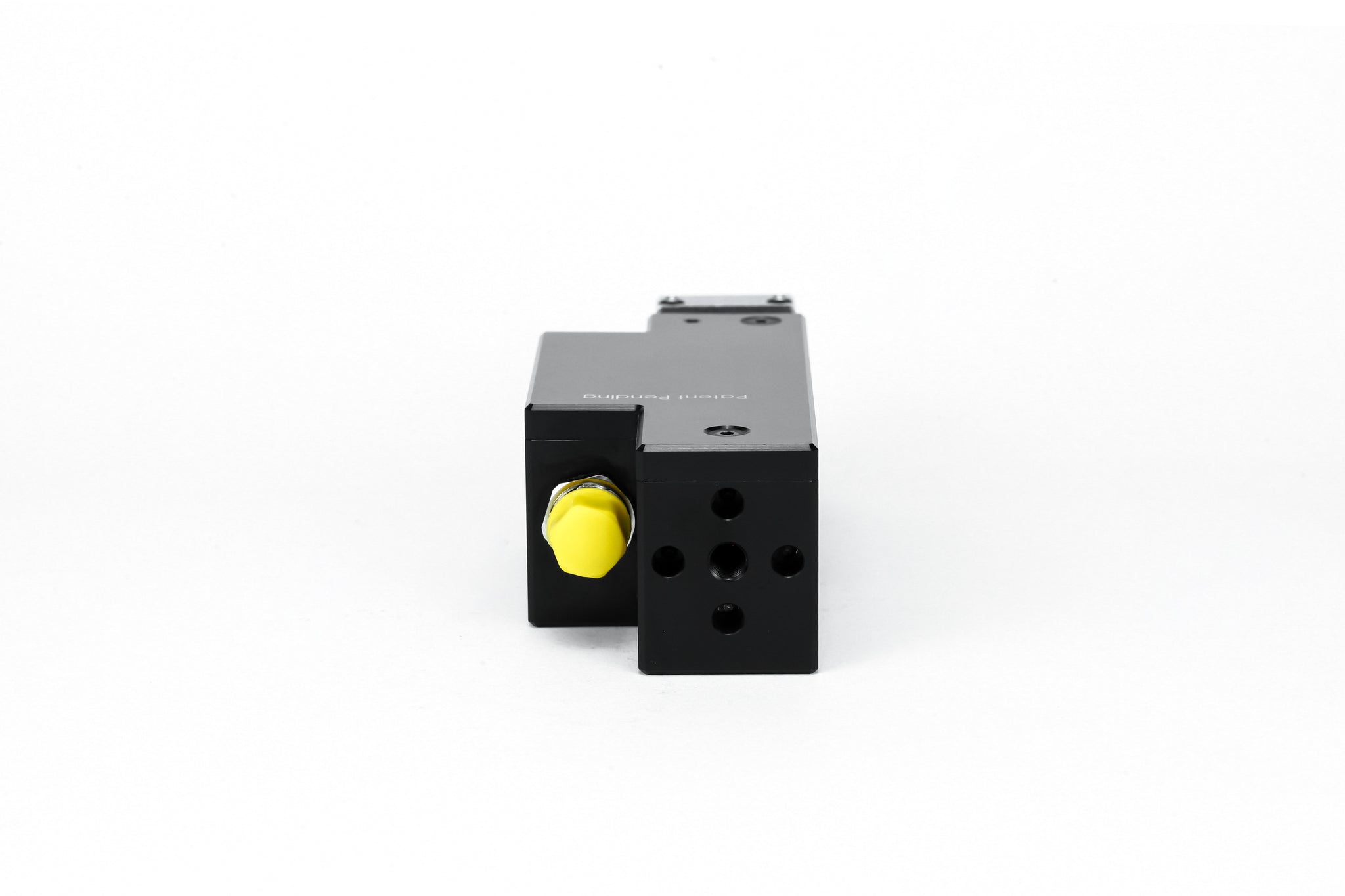

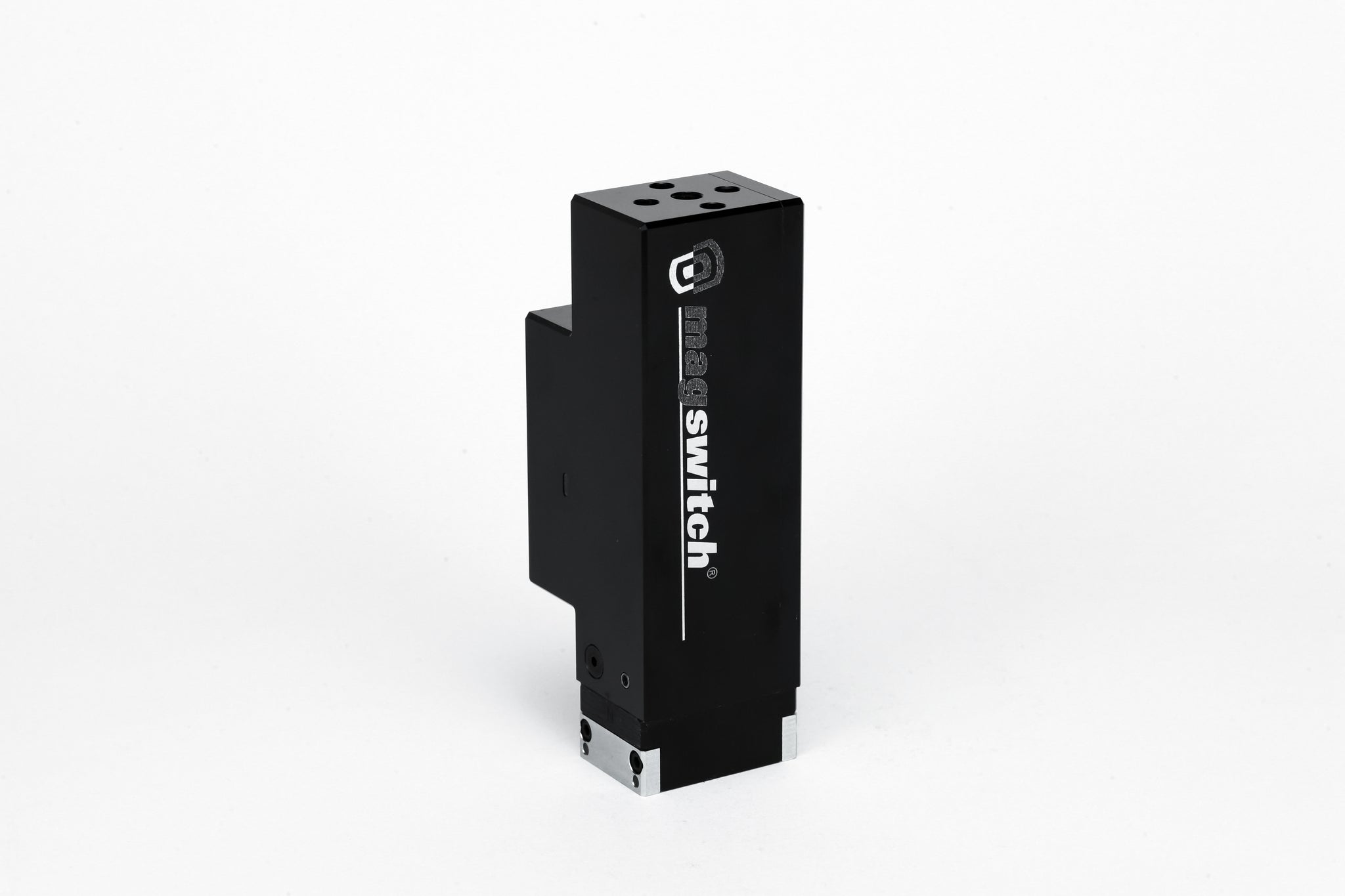

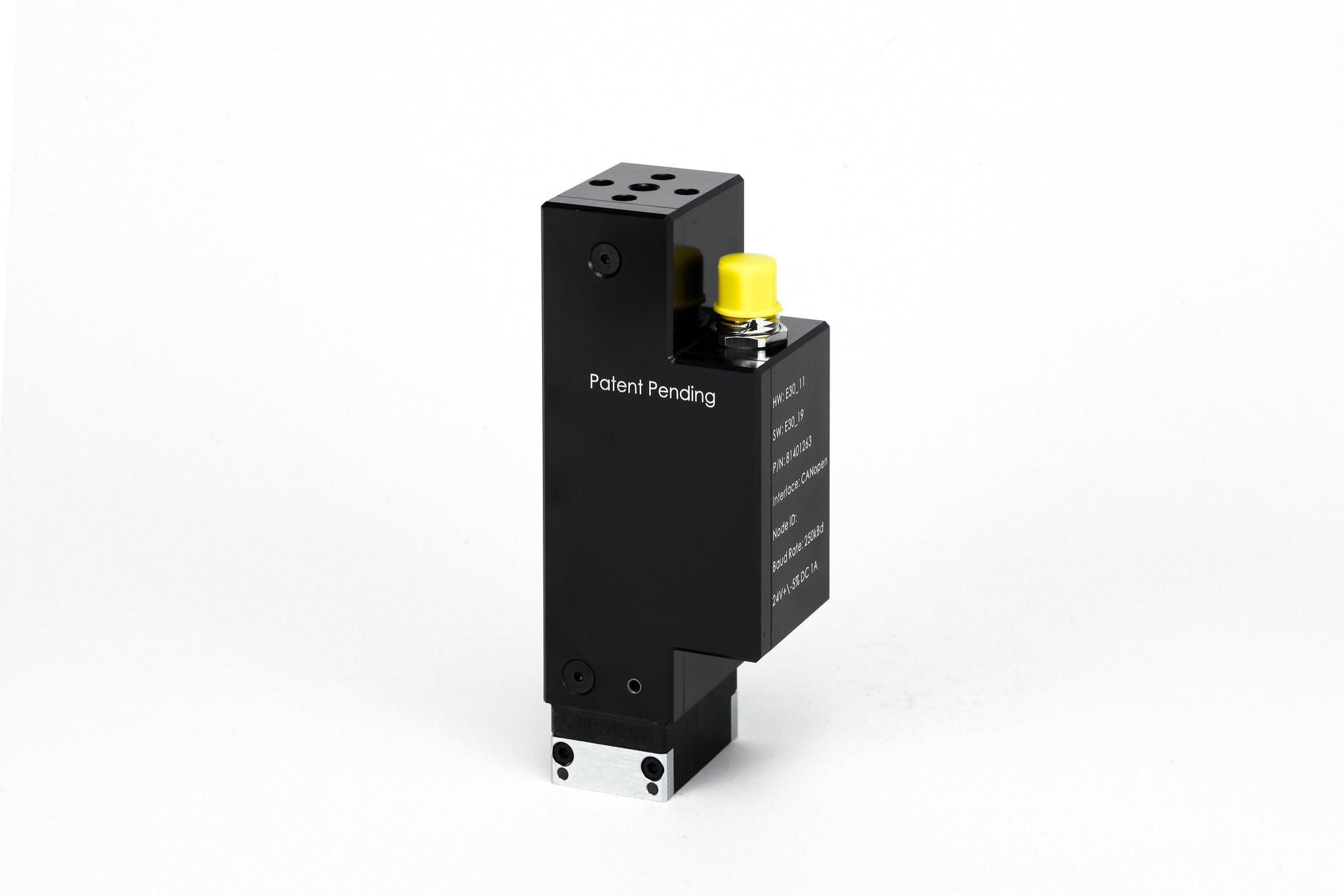

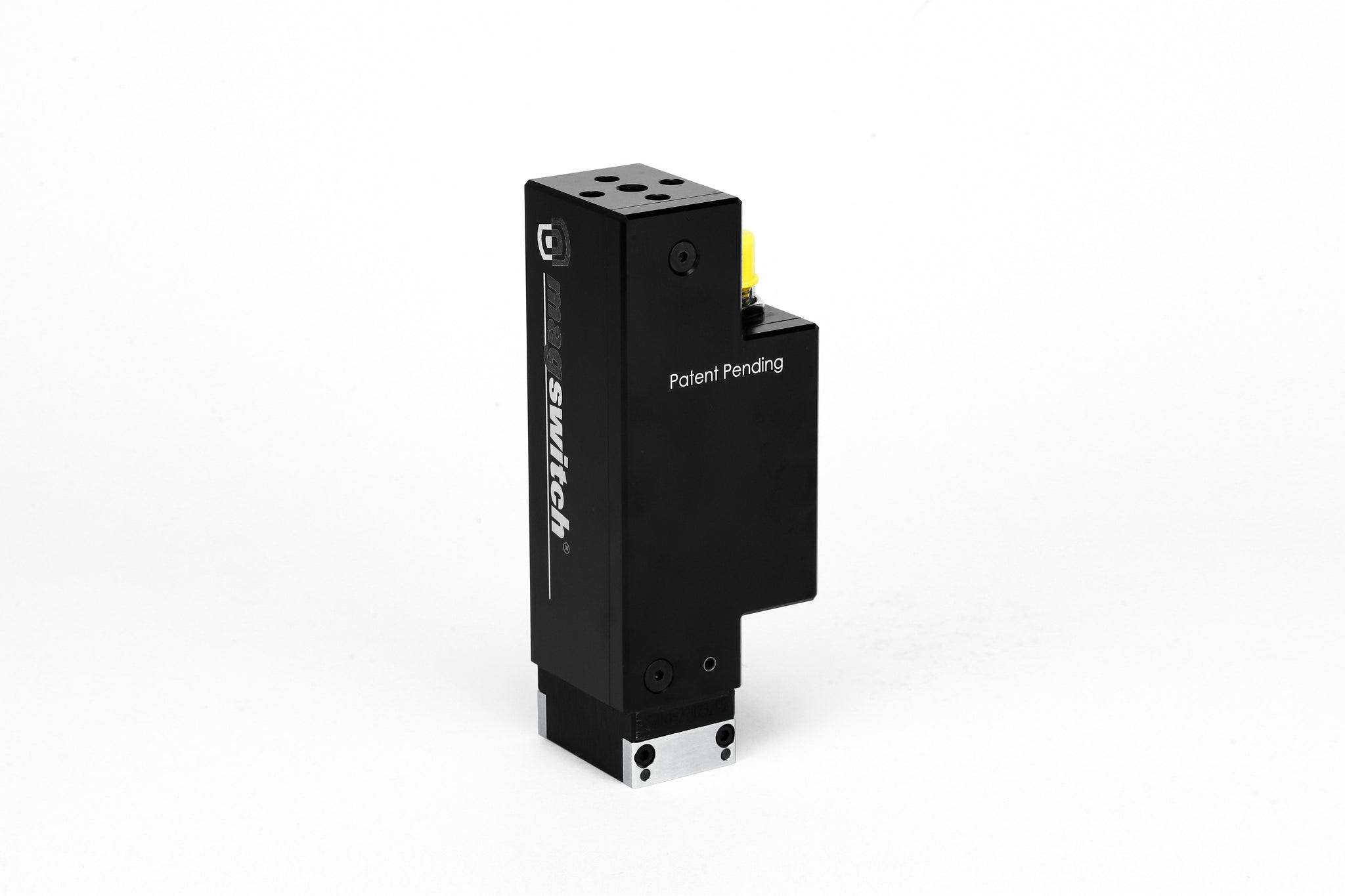

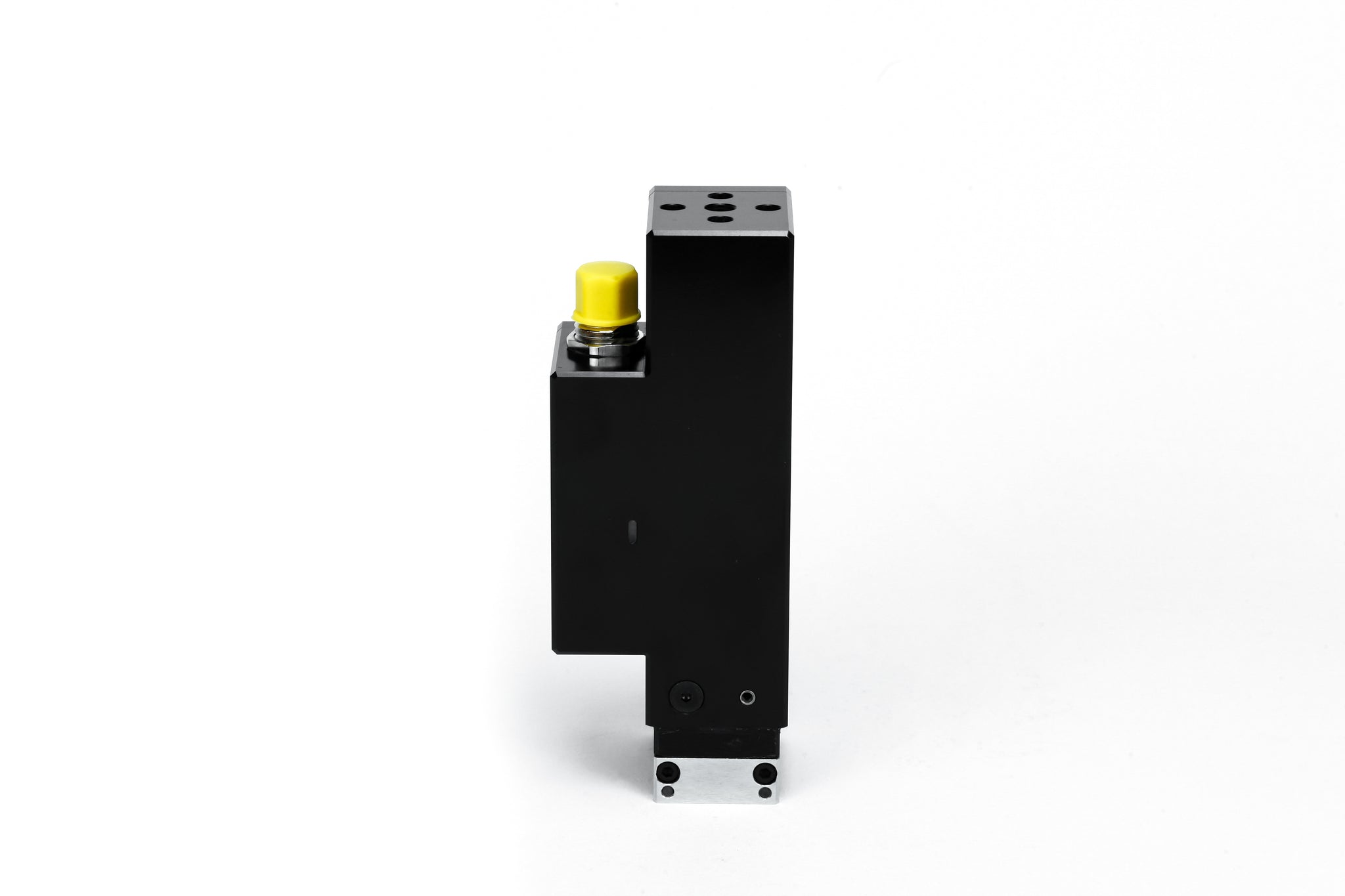

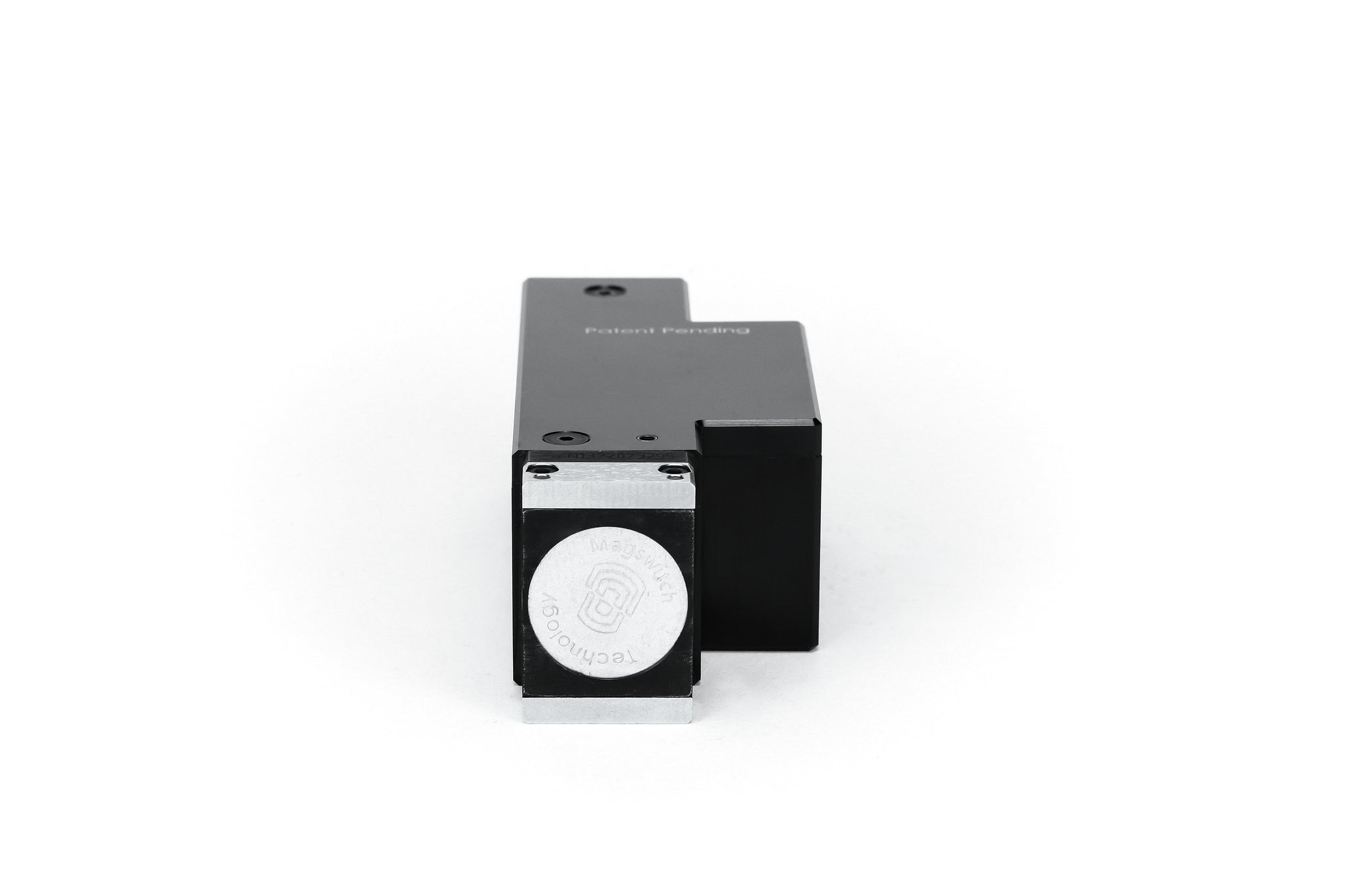

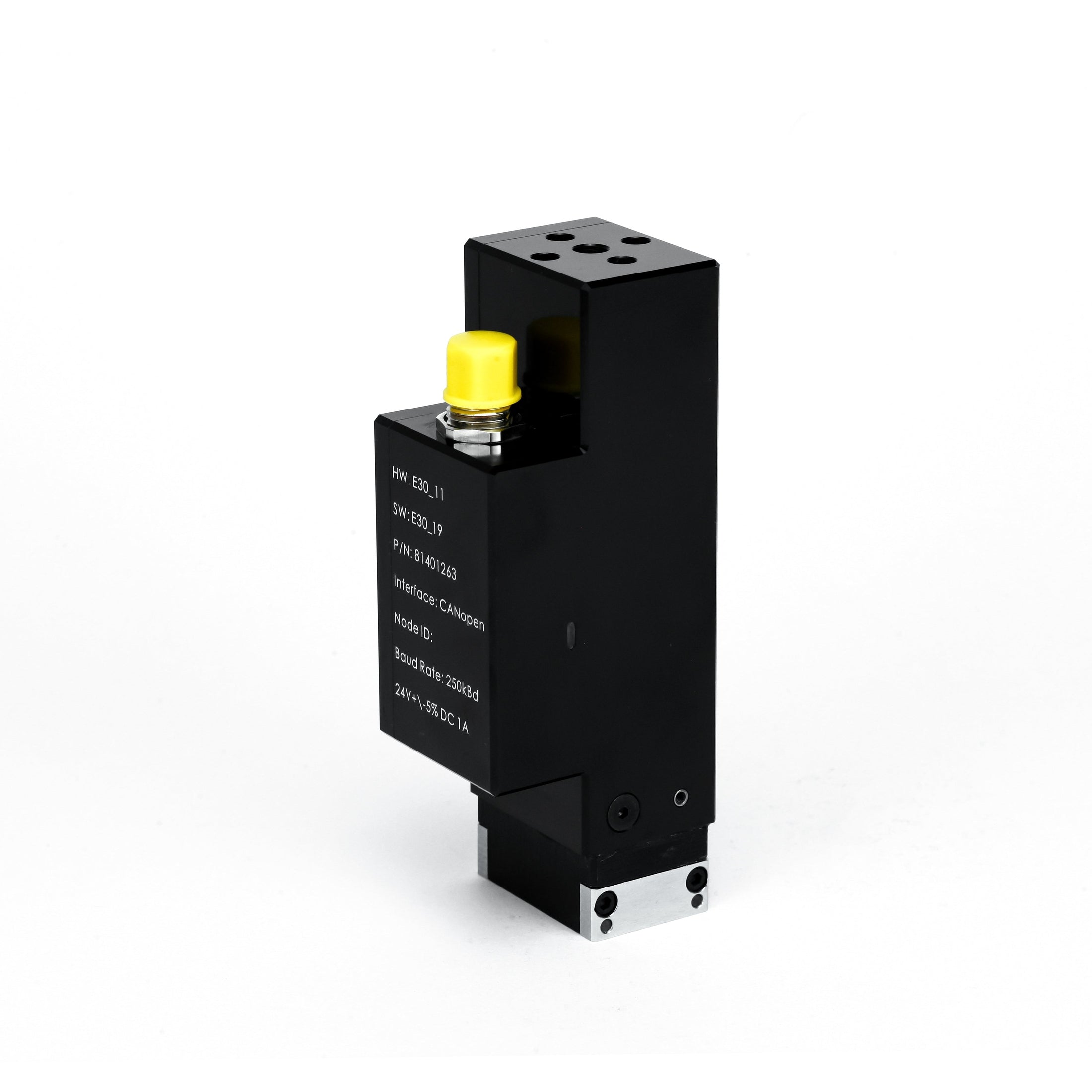

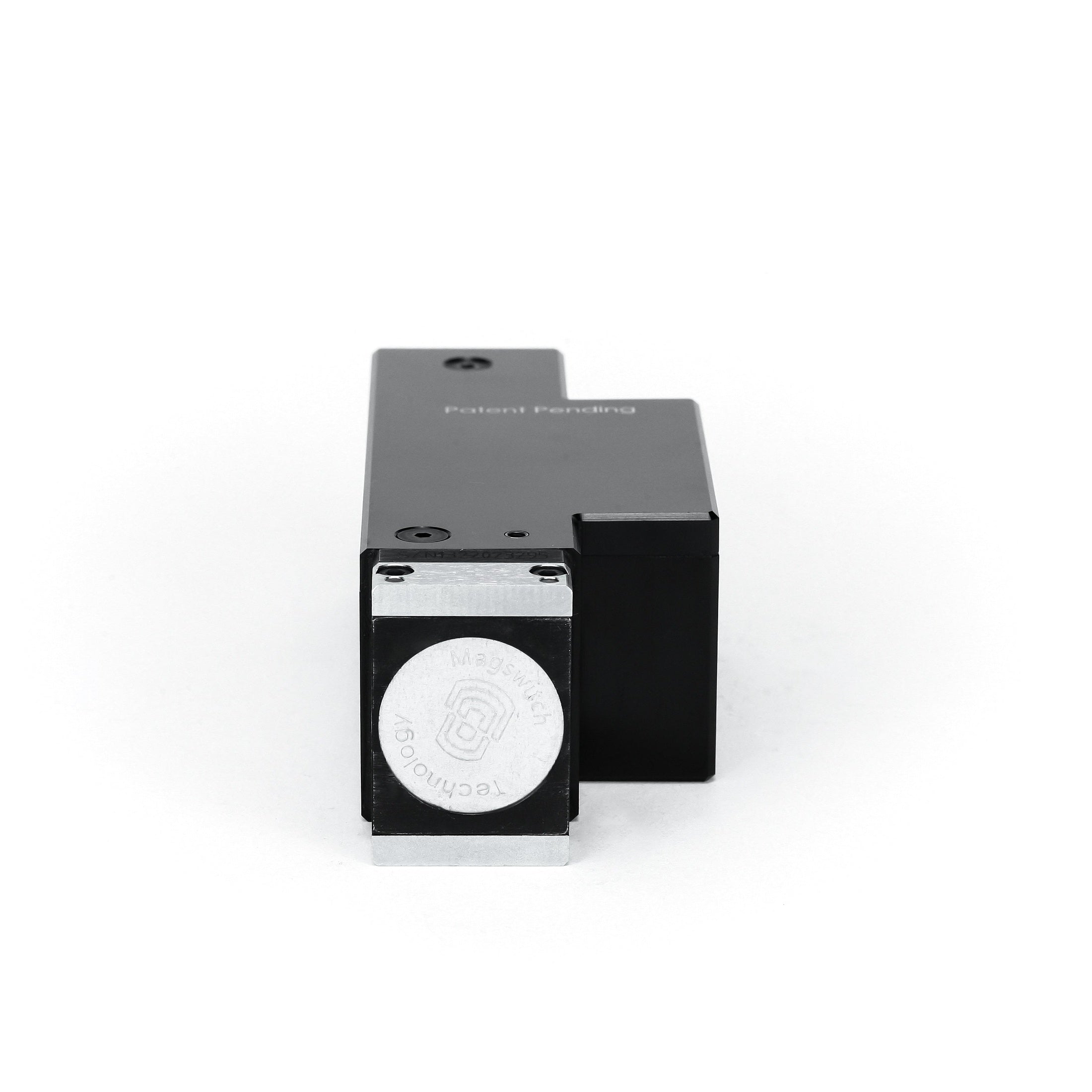

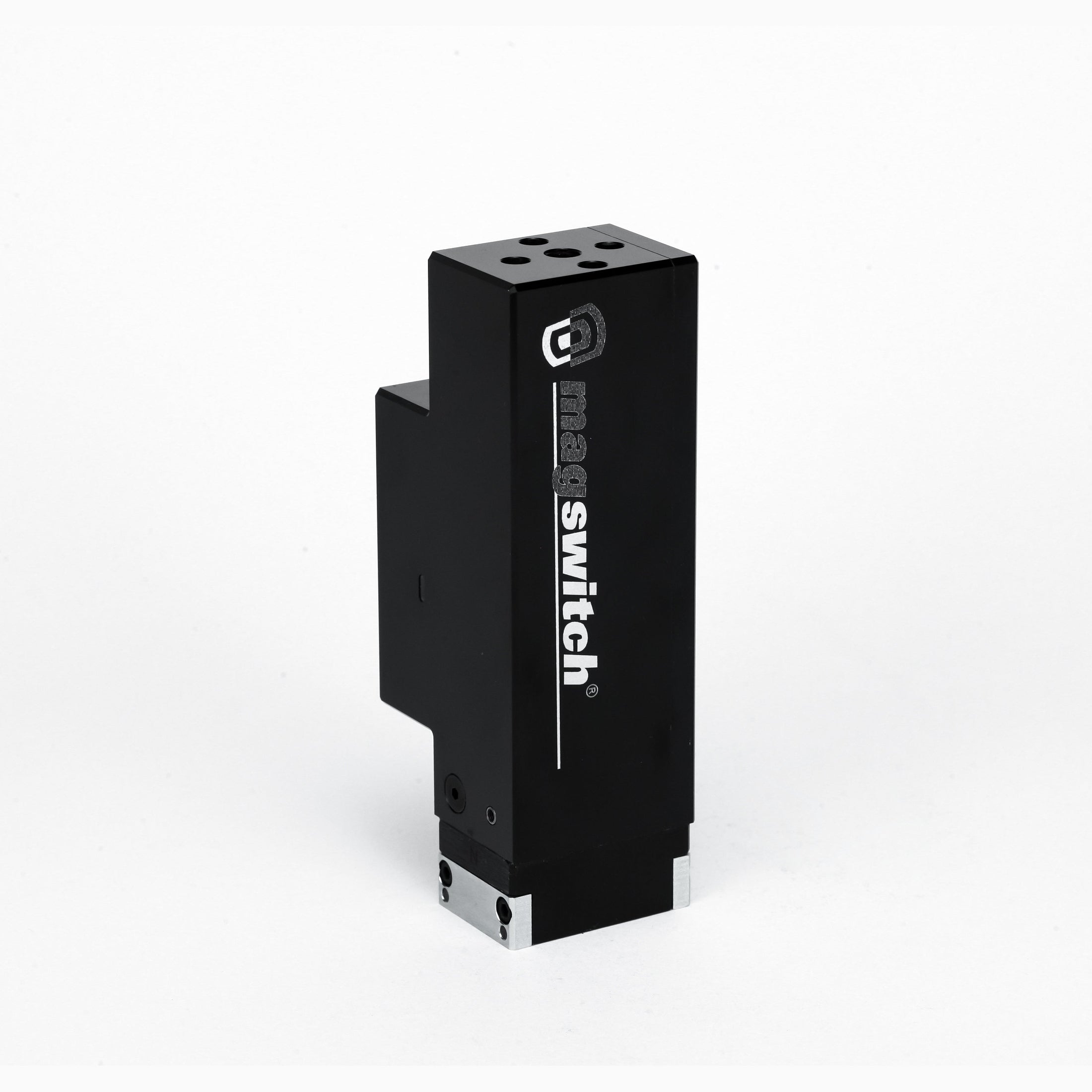

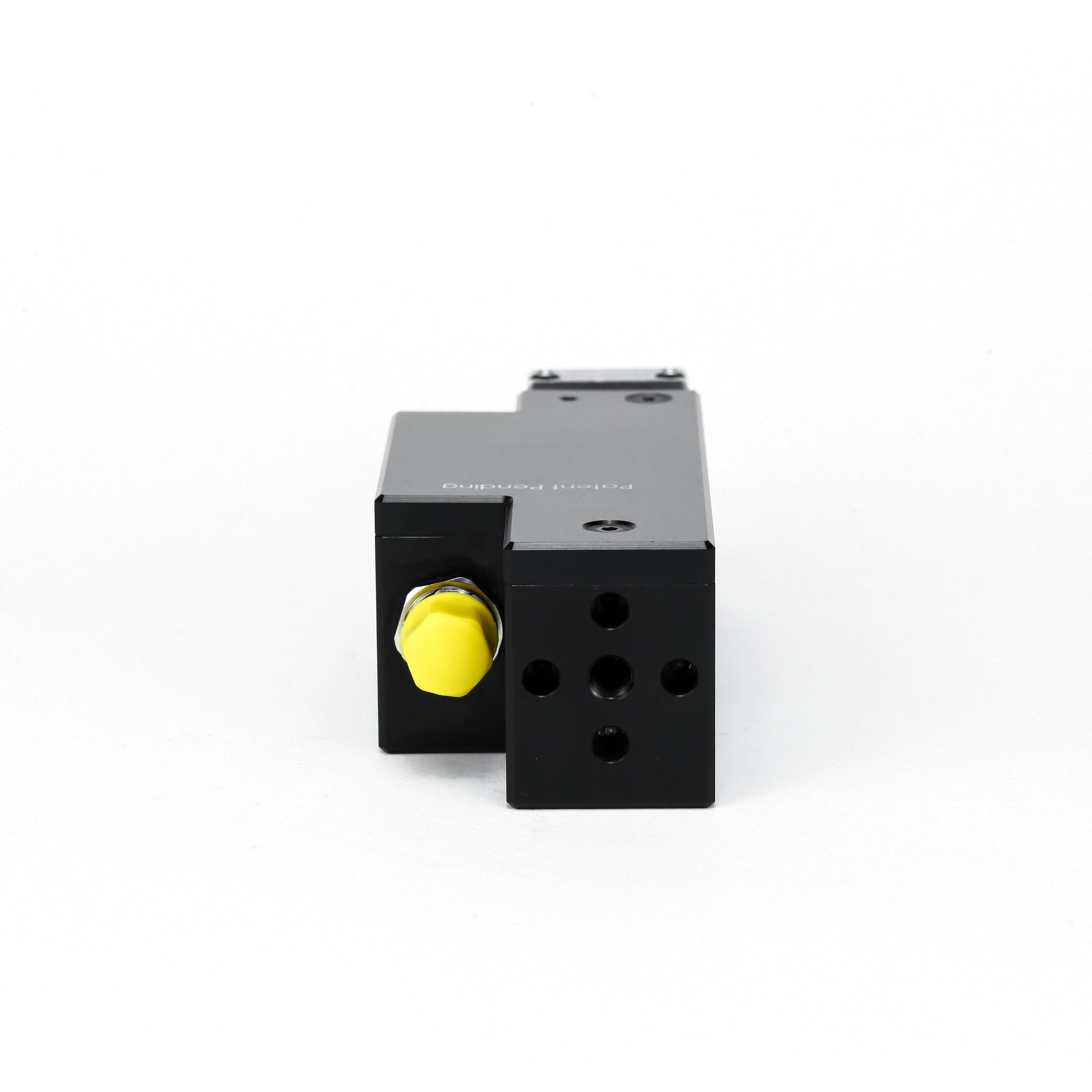

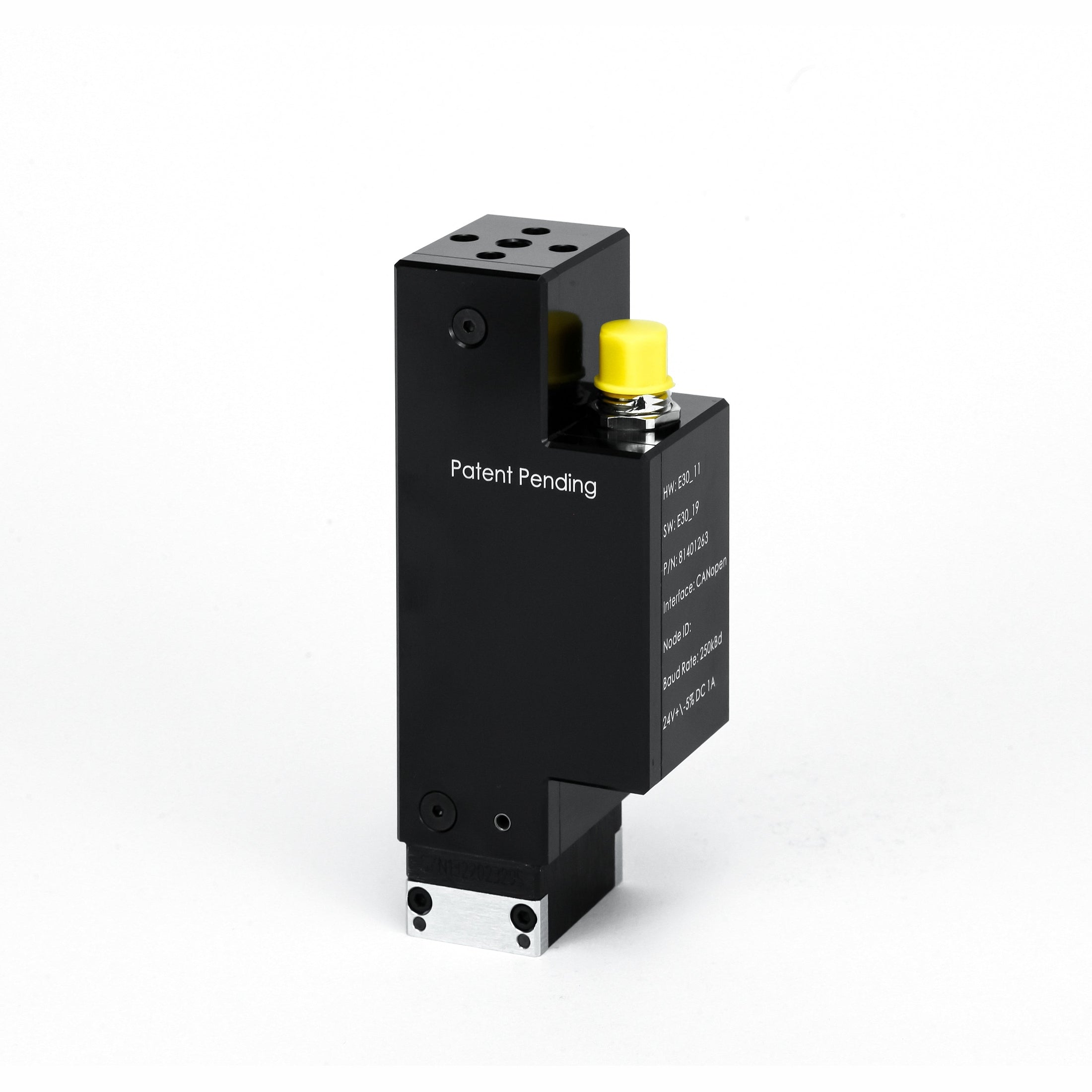

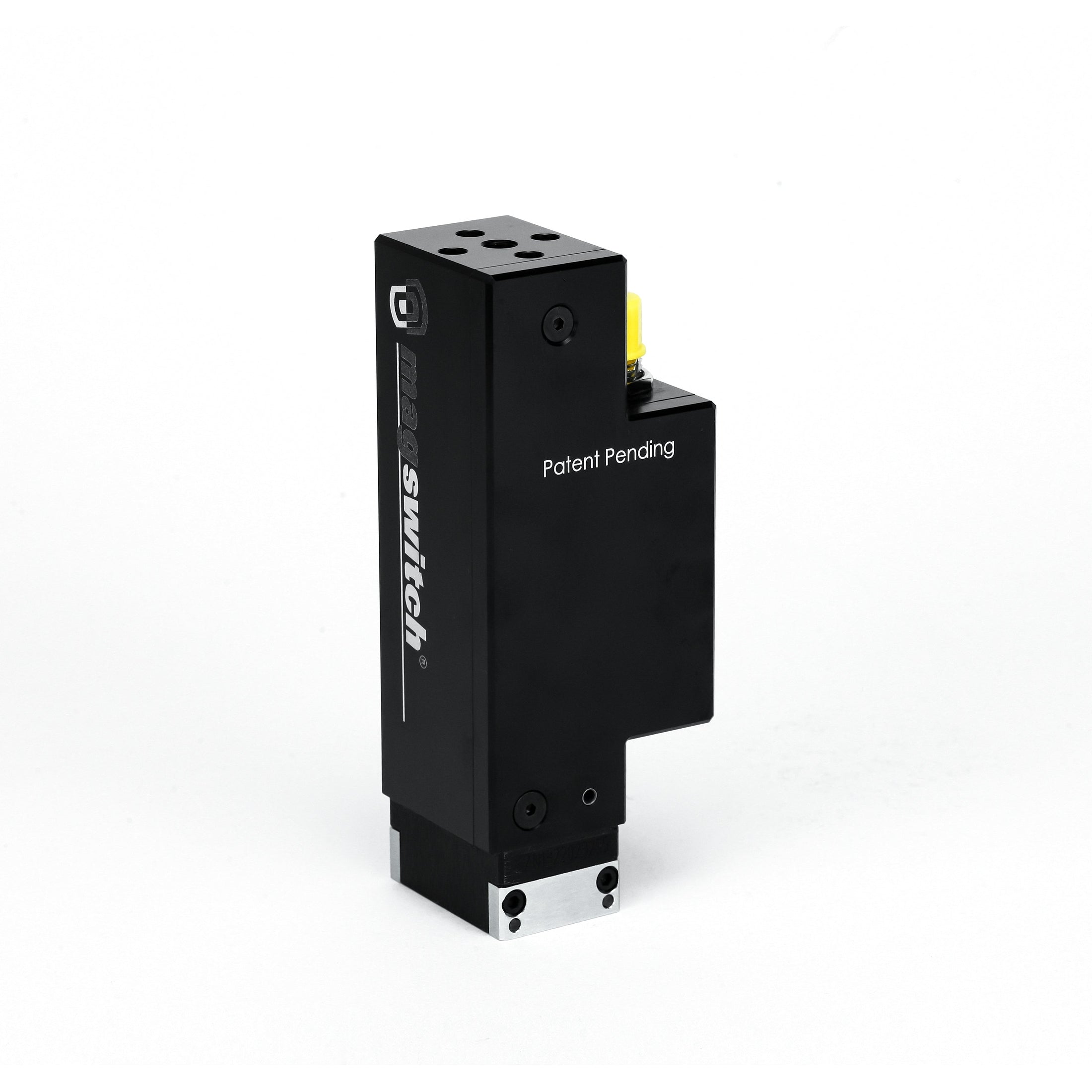

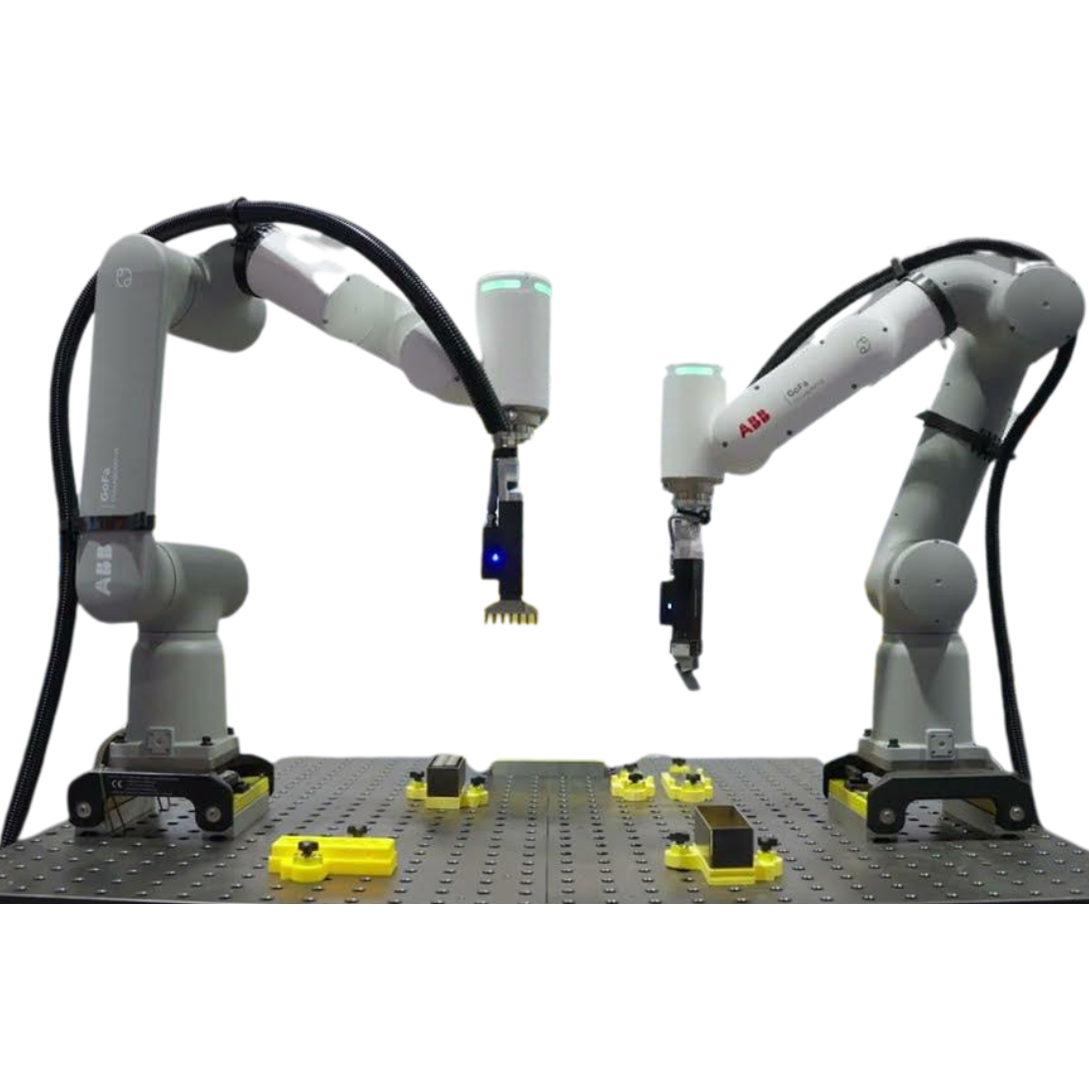

The Magswitch E30 features the all-new Variable Field Output (VFO) allows the tool to de-stack thin material and optimize performance for your component. Once the part is gripped and separated from adjacent parts, the tool can be switched to full power for maximum performance. Once full on the tools can then report back a proper part present verifying a proper pick. Proper part present is an innovative feature enabling customers to teach the tool what a good part looks like, introducing compact and faster error proofing of your process. With a fail-safe built in, the Magswitch electrically actuated line of automation will improve the way things are done!
FEATURES & BENEFITS
- Slim profile optimized for EOAT applications
- 24VDC operation below 1A (E30)
- Serial communication
- Combine power and communication in one cable
- Smart tool – Proper Part Present
- Variable Field Output (VFO)
- Destack thin parts (VFO)
- Enhanced bin pick capabilities (VFO and Proper Part Present)
ACCESSORIES (Sold Separately)
Product SKU | Product Description |
---|---|
8800782 | Standard Pole Shoe Kit E30 |
88001123 | PSK, E30, 135deg V-CUT POLE SHOE |
8800862 | KIT, POLE SHOE, E30, TOOTH, 2X2X2 |
88001423 | ARMOR KIT, E30, STANDARD BIN PICKING |
88001424 | PSK, E30, FLAT POLE SHOES, ARMOR READY |
88001426 | PSK, E30, 135deg V-CUT PS, ARMOR READY, 2" DIA |
88001427 | PSK, E30, 155deg V-CUT PS, ARMOR READY, 2"-4" DIA |
*Pole shoes are required for tool operation.
SPECIFICATIONS
Maximum Breakaway Force | 124.1 lb / 56.3 kg |
Maximum Shear | 39.7 lb / 18 kg |
Nominal Supply Voltage | 24 V DC |
Peak Current Draw | 1A @ 24 V DC |
Net Weight | 1.98 lb / 0.9 kg |
Connector Type | Male M12 –5 Pin –A-coded |
Mounting Options | Ø6-M8-Ø6 NAAMS pattern (x2) |
Supply Voltage | 24 V DC |
Target Thickness – mm (in) | 0.5 (0.020) |
1 (0.039) |
1.9 (0.075) |
3 (0.118) |
4.76 (0.187) |
10 (0.394) |
25 (0.984) |
Hold Force – kg (lbs) | 64.4 (14.5) |
172.3 (38.7) |
305.1 (68.6) |
466.3 (104.8) |
525.2 (118.1) |
534.3 (120.1) |
536.0 (120.5) |
Figure 1: Breakaway Strength with Different Air Gaps
Footnotes:
- The forces listed in this document represent ideal maximums and may not accurately reflect the actual forces achievable in a customer's specific application due to variations in materials or process conditions.
- Review and understand the warnings section on page 3 before operating the tool.
- Breakaway forces were determined in a laboratory environment on a 200mm x 200mm sheet of SAE1018 Steel with surface roughness of 63 microinches with standard pole shoes.
- Breakaway forces in general specifications and Table 1 were determined using standard pole shoes on clean, flat surfaces with no air gaps between the pole shoes and the target material. Any variation from this ideal scenario will decrease breakaway forces.
