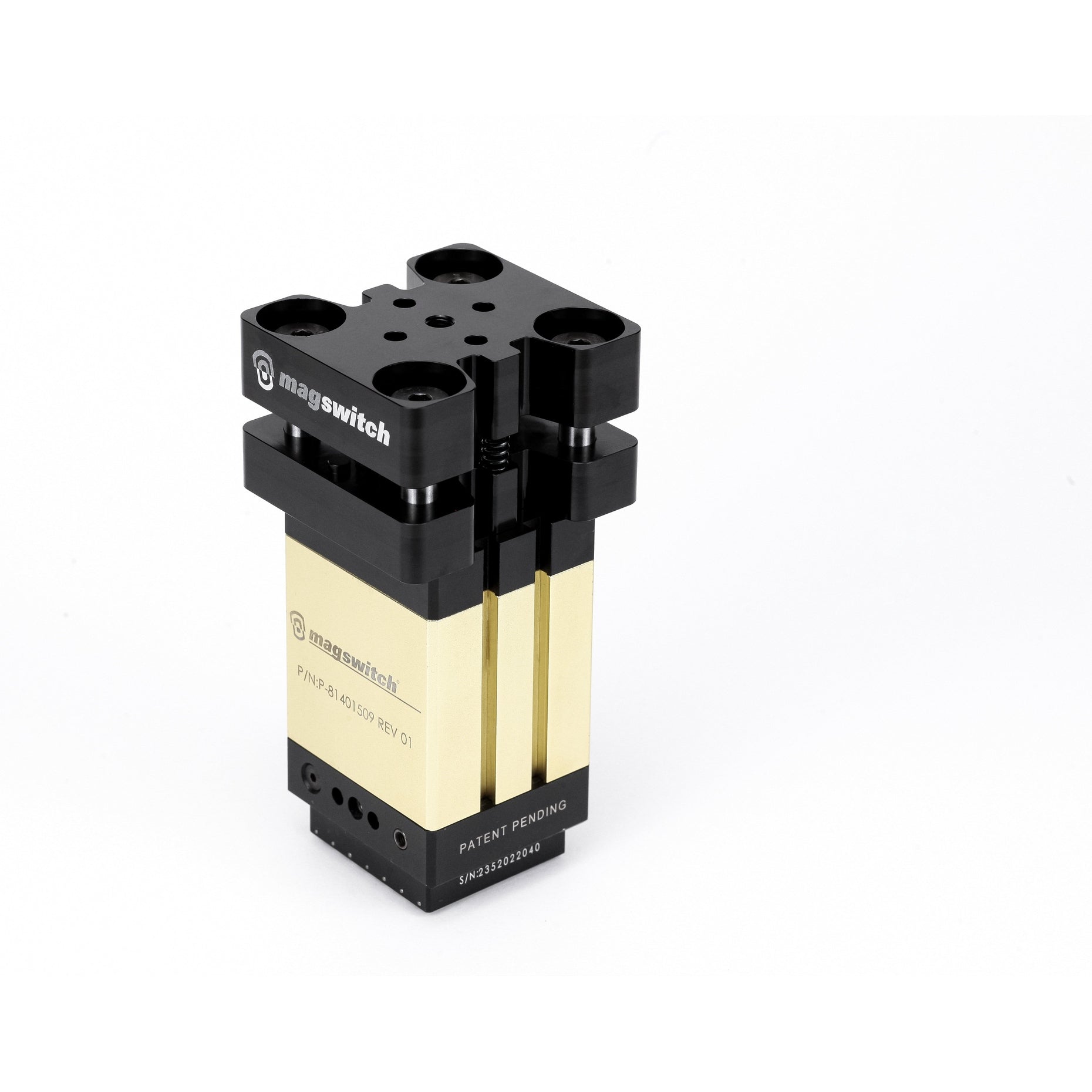

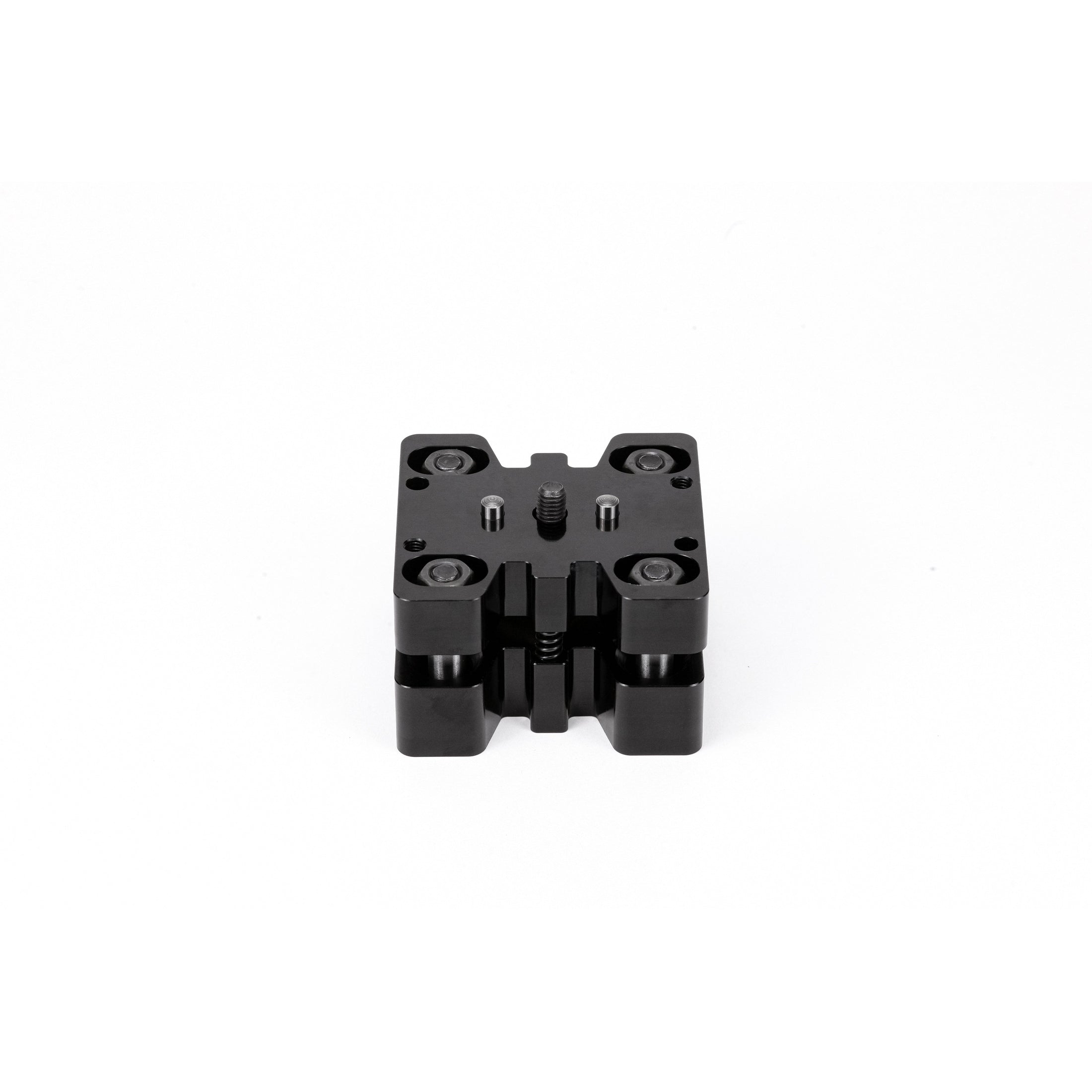

The Magswitch D120 Compliance Device is an accessory to the D120 (sold separately). The compliance device simplifies setup for the D120 by compensating for part variation and can be used for flat and near-flat contact, NOT for extreme deviation (round parts). Consider units with customizable pole geometries in these scenarios instead. Angular compliance is allowed on the X and Y axes as well as vertical compression about the Z axis. The additional flexibility also improves the handling of sagging sheets ensuring the maximum performance in each application. It also imparts a dampening effect against accelerations.

SPECIFICATIONS

Net Weight (Compliance Device Only) 1.38 lb / 0.63 kg
Pitch Forward/Backward (X-axis) +/-4.5°
Roll Left/Right (Y-axis) +/-4.5°
Yaw Clockwise/Counterclockwise (Z-axis) Negligible Movement
Z-axis Compression -5mm
X-axis or Y-axis Lateral Movement +/-1.5mm if in compression
Dimensions (Compliance Device Only)
80mm x 76mm x 50.67mm

Compatible Tool Available:

D120 Tool (sold separately)  81401457
Soft Spring (included, installed) 1802516
Hard Spring (included, packed separately) 1802178
