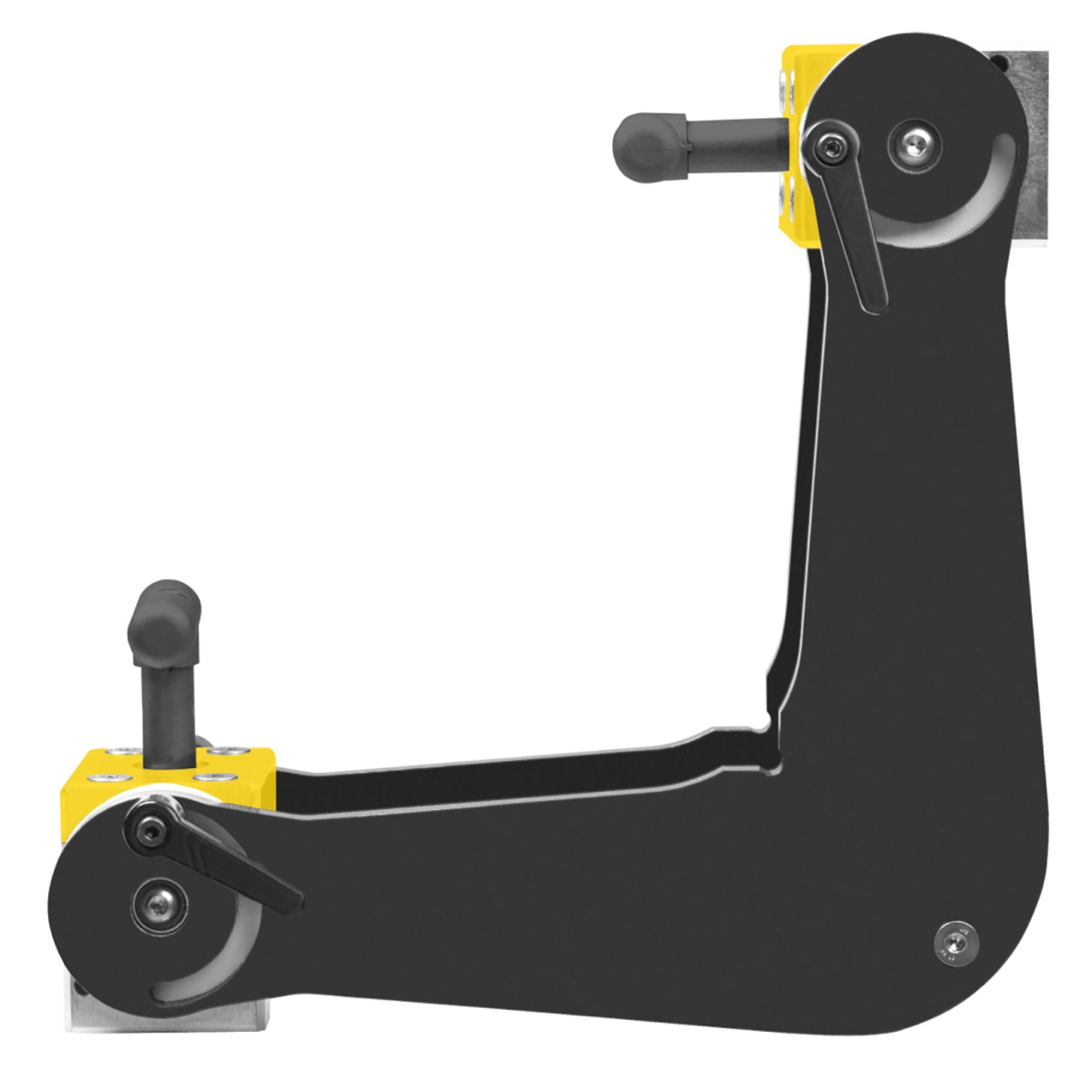

One tool with a rotating MagSquare at each axis provides virtually unlimited angles including a pre-set for 90-degree holding. Switch on and off 607 pounds of magnetic hold force by rotating the black knobs

FEATURES & BENEFITS

• Magnetic field turns completely on and off mechanically.
• Does not use an electrical power source.
• Switch off to wipe away metal shavings
• Magnets stay clean.
• Holds to flat and round surfaces of steel.

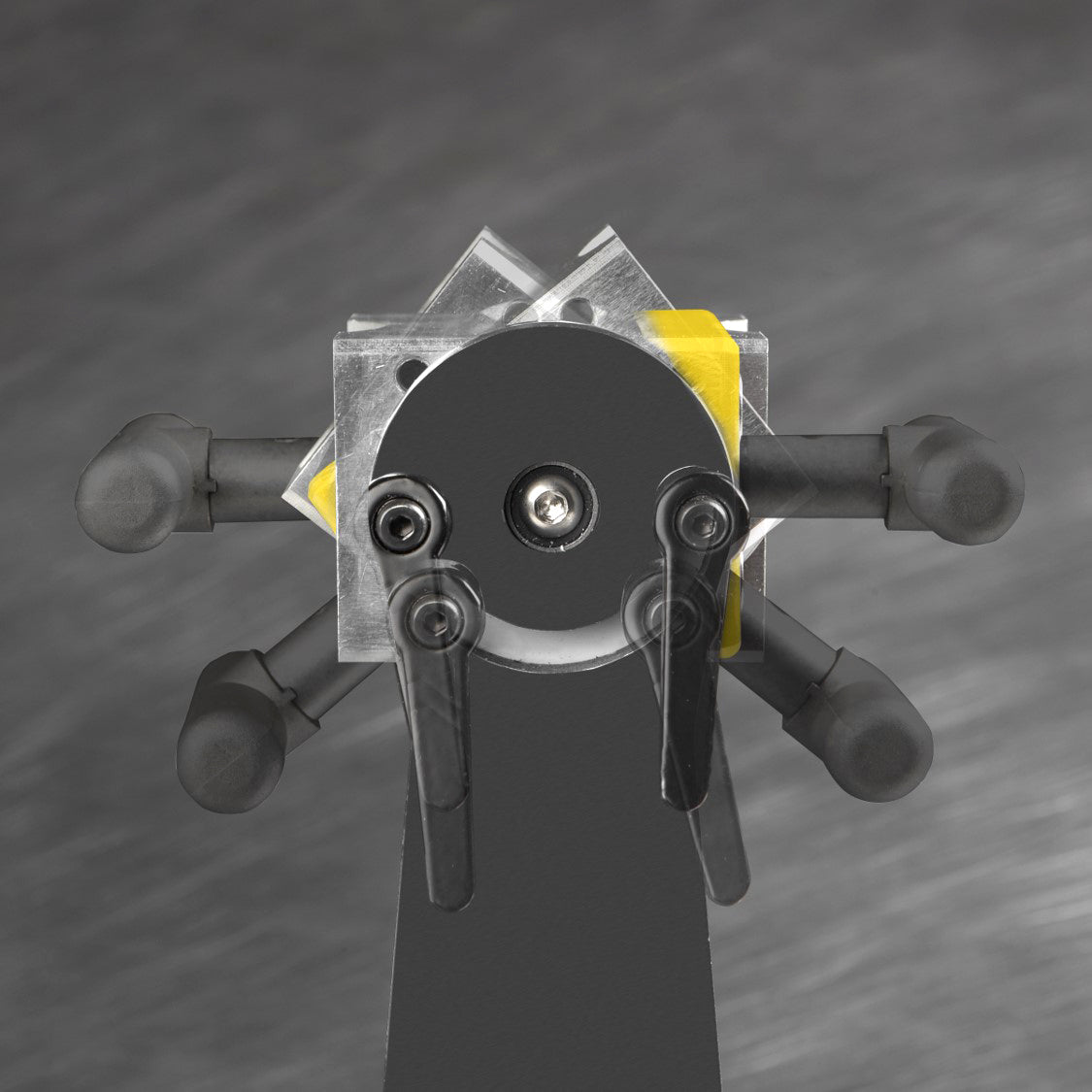

• Adjustable angle holds.
• Position for odd angles in seconds.
• Non-marring hold.

SPECIFICATIONS

• Max Breakaway: 607 lbs / 275.3 kg
• Full Saturation Thickness: 3/8'' / 10 mm
• 2:1 Shear Working Load: 61 lbs / 27.6 kg
• Product Weight: 9.7 lbs / 4.4 kg
• Dimensions: 10.1 x 6.5 x 10.1 in / 256.5 x 165.1 x 256.5 mm
• Magnetic Pole Footprint: 75 mm x 51.5 mm

Downloads

BOOMERANGLE 600 Downloads:

• BoomerAngle 600 Spec Sheet
• BoomerAngle 600 STEP File

Magswitch Downloads:

• Welding & Fabrication Brochure
• Magswitch Manual Catalog
