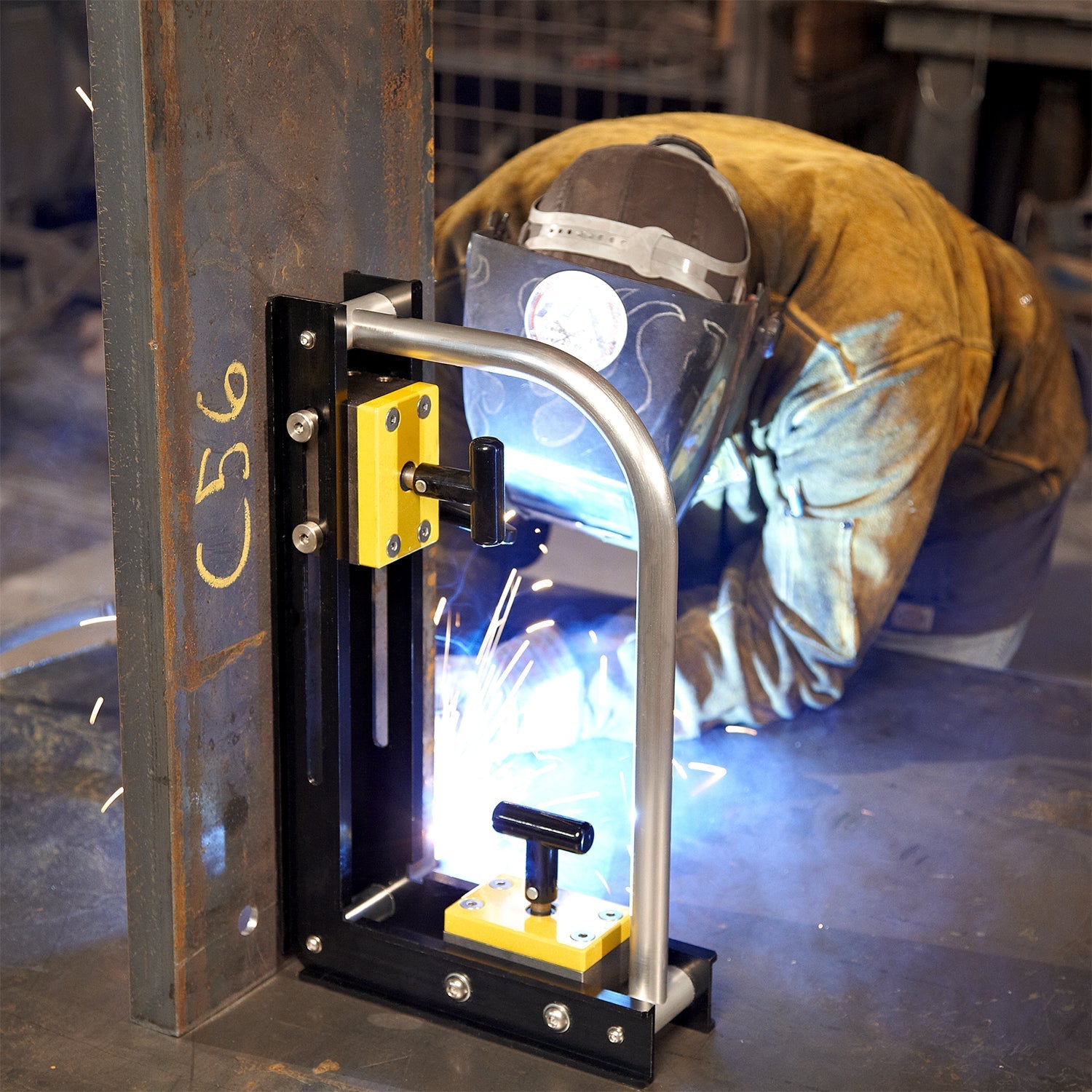

Magnetic Welding Squares That Improve Welding Accuracy
How switchable magnetic technology is helping fabrication shops work faster, hold tighter angles, and produce better welds.
Precision matters in welding and fabrication. Whether you are assembling frames, tacking tubing, or aligning sheet metal parts, small positioning errors can lead to costly rework and wasted production time. Magnetic welding squares provide a fast and reliable way to hold metal components in place, allowing welders to focus on producing strong, clean welds rather than fighting with clamps or temporary fixtures.
Modern fabrication shops are increasingly turning to switchable magnetic welding squares to streamline setup, improve repeatability, and maintain consistent weld quality. By combining strong magnetic holding power with easy on/off control, these compact tools can significantly improve efficiency across welding and fabrication operations.
Why Magnetic Welding Squares Matter in Fabrication
Traditional welding setups often rely on mechanical clamps, tack welds, or bulky fixturing tables. While these methods can work, they typically slow down setup times and limit flexibility.
Magnetic welding squares solve these challenges by providing:
- Fast positioning of steel components
- Hands-free holding during welding
- Repeatable alignment for production work
- Reduced fixture complexity
In fabrication environments where welders frequently reposition parts, magnetic fixturing tools can dramatically reduce setup time while maintaining accurate alignment.
The ability to quickly hold components at precise angles makes magnetic welding squares particularly valuable when working with tubing, plate steel, and structural assemblies.
Switchable Magnetic Technology Improves Control
One of the biggest advances in welding fixturing is switchable magnetic technology. Unlike traditional permanent magnets, switchable magnets allow users to turn the magnetic field on and off with a simple lever.
Key Advantages of Switchable Magnetic Technology
- Precise placement before activation
- Easy removal without prying or sliding
- Cleaner work surfaces with less metal debris
- Safer handling when repositioning fixtures
Tools built with switchable magnets provide strong holding force while maintaining complete control during setup and removal. For welders working on production jobs, this translates to faster part alignment and more efficient workflow.
Common Applications for Magnetic Welding Squares
Magnetic welding squares are used across a wide range of industries, including metal fabrication, manufacturing, construction equipment production, and industrial maintenance.
Typical applications include:
Frame Assembly
Magnetic squares help align square and rectangular tubing when building frames, racks, and structural assemblies.
Pipe and Tube Welding
When welding round tubing or pipe, magnetic fixtures help maintain proper positioning during tack welds and final weld passes.
Sheet Metal Fabrication
Fabricators often use magnetic squares to hold sheet metal components during spot welding, MIG welding, or TIG welding processes.
Production Welding
For repeatable manufacturing jobs, magnetic welding squares improve efficiency by reducing setup time between parts.
These tools are particularly useful in fabrication environments where welders frequently move between projects and require flexible fixturing solutions.
Improving Workflow with Magnetic Welding Fixtures
A well-organized welding workstation relies on tools that support speed, accuracy, and safety. Magnetic welding squares contribute to all three by simplifying the fixturing process.
Key workflow benefits include:
- Faster setup times
- Improved weld alignment
- Reduced need for temporary tack welds
- Greater flexibility across projects
By eliminating complex fixture builds, magnetic welding tools help fabrication shops adapt quickly to new designs, prototypes, or custom projects.
Choosing the Right Magnetic Welding Square
When selecting a magnetic welding square, several factors should be considered:
Holding strength: Ensure the magnet provides enough force to securely hold the materials being welded.
Switchable control: Tools with on/off functionality improve safety and positioning accuracy.
Durability: Welding environments expose tools to heat, spatter, and metal debris, so rugged construction is essential.
Versatility: Look for tools that support multiple angles and configurations to handle different fabrication projects.
High-quality magnetic welding squares are designed to withstand demanding fabrication environments while maintaining reliable magnetic performance over time.
Magswitch Magnetic Welding Square Products
Small Tool, Big Impact on Welding Productivity
Magnetic welding squares may be compact, but their impact on welding productivity is significant. By improving alignment, simplifying setups, and reducing fixturing complexity, these tools allow welders to focus on producing high-quality welds rather than managing cumbersome clamps.
For fabrication shops focused on efficiency and precision, magnetic welding tools provide a practical upgrade to traditional fixturing methods.
Explore Magswitch Welding Tools
Discover how switchable magnetic technology can improve accuracy, speed, and productivity in your welding operations.
Frequently Asked Questions
Common questions about magnetic welding squares, switchable magnetic technology, and choosing the right MagSquare for your application.
What is a magnetic welding square and how does it work?
A magnetic welding square is a switchable magnetic tool used to hold steel components at precise angles during welding and fabrication. Unlike traditional clamps, it uses a rotating lever to turn the magnetic field on and off — allowing you to position parts accurately before activating the hold, then release them cleanly without prying or sliding. Magswitch MagSquares are built on this switchable magnetic technology for fast, hands-free fixturing.
What's the difference between the MagSquare 165, 400, 600, and 1000?
The four Magswitch MagSquare models differ primarily in holding force, making each suited to different material thicknesses and part weights:
- MagSquare 165 — Compact and portable, ideal for lighter sheet metal and smaller fabrication work
- MagSquare 400 — Mid-range holding power for general fabrication and tubing
- MagSquare 600 — Heavy-duty holding for structural steel and larger assemblies
- MagSquare 1000 — Maximum holding force for the most demanding production and structural welding applications
Choose based on the weight and thickness of the steel you're working with.
Can magnetic welding squares replace traditional clamps and fixtures?
In many applications, yes. Magnetic welding squares simplify fixturing by eliminating the need for mechanical clamps, tack welds, or complex fixture builds. They're especially effective for frame assembly, pipe and tube welding, sheet metal fabrication, and production welding where fast, repeatable setups are required. For custom or high-volume jobs, they significantly reduce setup time and fixture complexity.
Are Magswitch MagSquares safe to use in a welding environment?
Yes. The switchable magnetic design means the magnet is only active when you choose — reducing the risk of unexpected adhesion during handling and repositioning. The on/off control also helps keep work surfaces cleaner by minimizing metal debris attraction when the tool is off. Magswitch MagSquares are built for rugged fabrication environments, designed to withstand welding heat, spatter, and the daily demands of a production shop.
Do magnetic welding squares work on all metals?
Magnetic welding squares work on ferromagnetic metals — primarily mild steel, carbon steel, and some stainless steels. They do not hold aluminum, copper, brass, or other non-ferrous metals. For best results, ensure the contact surface is clean and flat to maximize magnetic holding force.
What welding processes are magnetic welding squares compatible with?
Magswitch MagSquares are compatible with MIG welding, TIG welding, stick welding, and spot welding. They are commonly used during tack welding to hold components in position, then removed or repositioned for final weld passes. Their switchable design makes them practical for any process where you need a temporary, repositionable hold.
How do I choose the right MagSquare holding force for my application?
A general rule: match the holding force rating to the weight and size of the parts you're positioning. The MagSquare 165 handles lighter work like thin sheet metal and small brackets, while the MagSquare 1000 is suited for heavy structural assemblies. When in doubt, choose the next size up — a stronger magnet gives you more control and security, especially on vertical or overhead work where gravity works against you.
Can magnetic welding squares be used for production and repeat welding jobs?
Yes — and this is one of their strongest advantages. Because they position parts at a consistent, repeatable angle every time, Magswitch MagSquares are well suited for production welding where multiple identical parts need to be assembled quickly. The fast on/off switching eliminates the setup variation that comes with manual clamps, helping maintain weld quality and throughput across high-volume runs.
