The Friction Pad Kit is pre-installed on the D5/D12. If Friction Pad re-installation is needed, follow the instructions below.

• Turn OFF the tool.
• Remove the Rubber Band Kit (if applicable).
• Clean all the surfaces that will be covered by Friction Pad. Particles and debris should be removed completely.

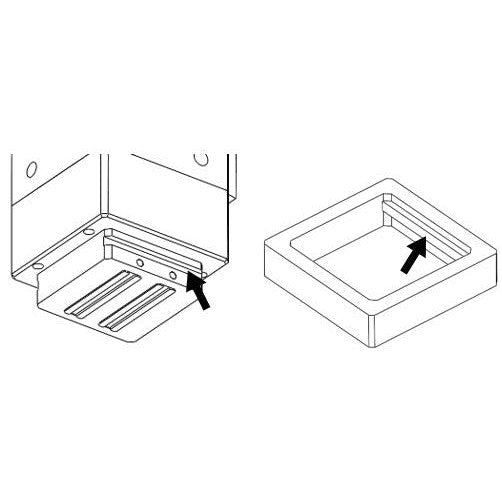

• Align the two sides with lips on the Friction Pad with two sides with slots on the tool (marked with arrows). Press in one side and then press in the other side.
• Press on the outside of the Friction Pad along the lips several times until the lips are fully engaged into the slots.
• The installation of the Friction Pad is complete.
