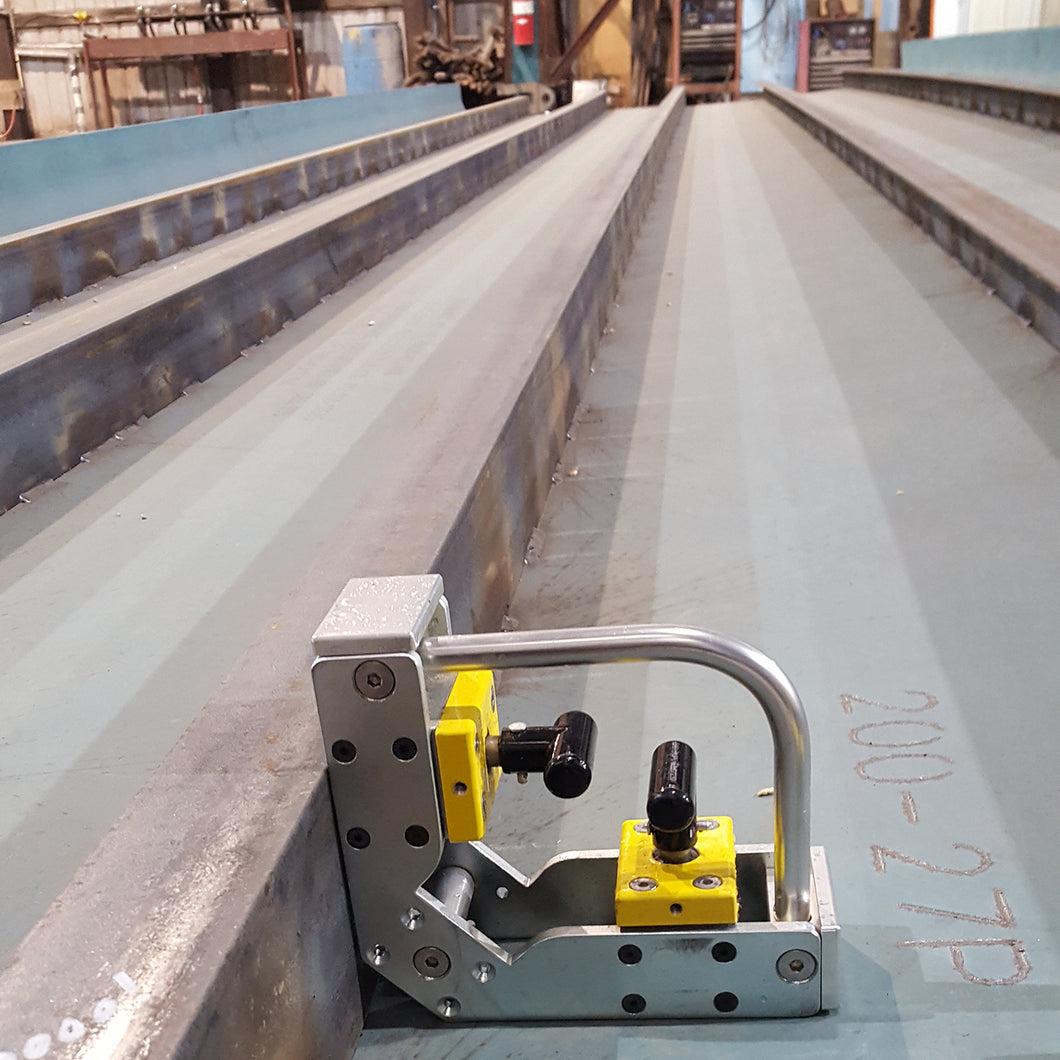

Designed for some serious power, stabilization and precision control for those heavy-duty jobs. Switch on and off 1040 pounds of magnetic holding force by rotating the black knobs. The entire side plate is magnetized when turned on. One of the most compact, powerful and versatile welding tools in the market!

FEATURES & BENEFITS

• Magnetic field turns completely on and off mechanically.
• Does not use an electrical power source.
• Switch off to wipe away metal shavings and the magnets stay clean.
• Mounts to flat and round surfaces of steel.
• Reinforced end caps for superior durability.
• Lightweight with incredible strength.
• Precise positioning.

SPECIFICATIONS

• Max Breakaway: 1040 lbs / 471.7 kg (on 2'' steel)
• 2:1 Shear Load: 120 lbs / 54.4 kg
• Product Weight: 9.9 lbs / 4.5 kg
• Dimensions: 7.2 x 3.1 x 8.2 in / 182.8 x 78.7 x 208.2 mm

Downloads

90 Degree Angle Stiffener 1200 Downloads:

• Magswitch 90 Degree Angle Stiffener 1200 Spec Sheet
• Magswitch 90 Degree Angle Stiffener 1200 STEP File

Magswitch Downloads:

• Shipbuilding Brochure
• Magswitch Manual Catalog
