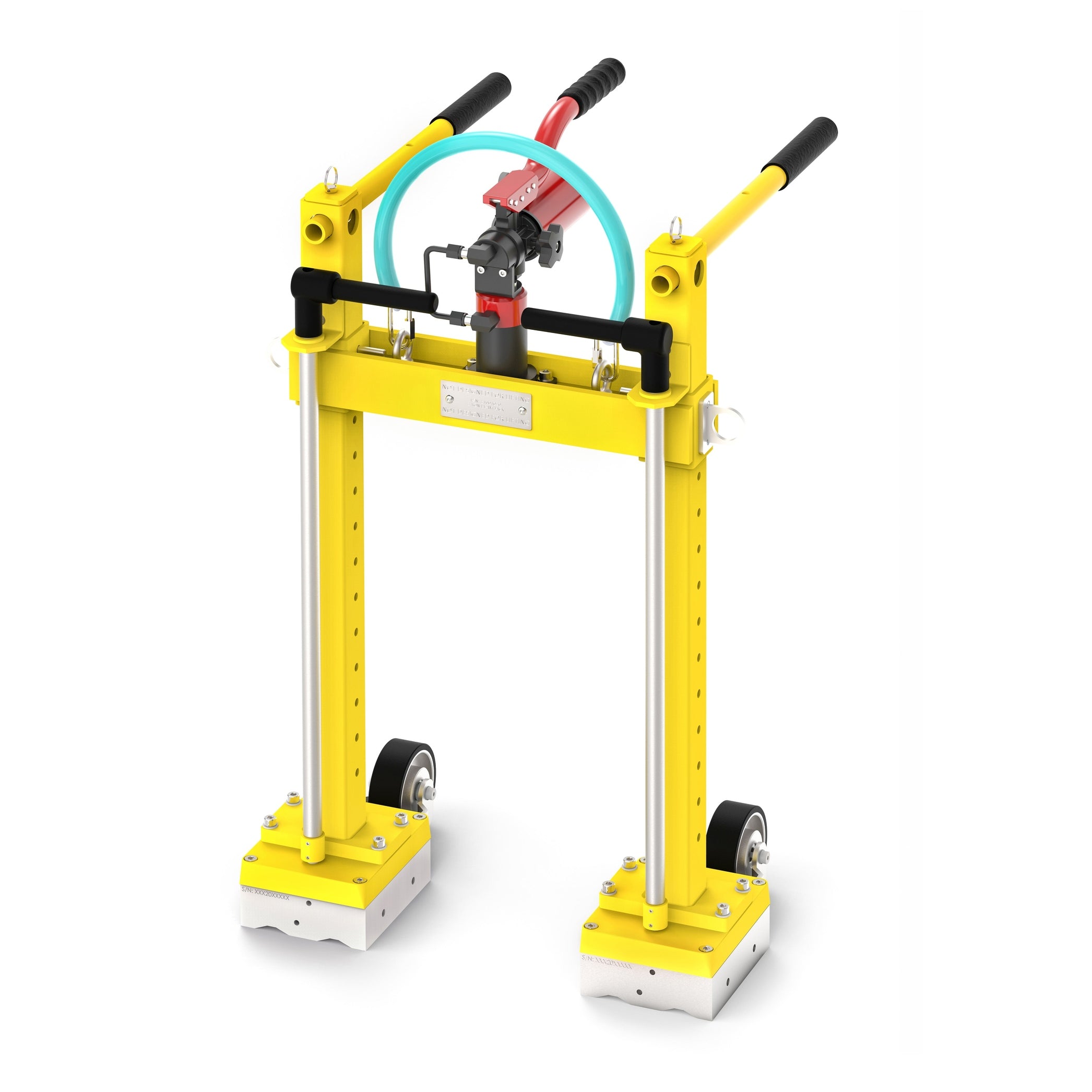

The Magswitch 3 Ton Aluminum Adjustable Beam Jack is perfectly suited to pulling flat ferromagnetic substance, such as steel plate, against stiffener beams. This tool is built with (2) Magswitch MLAY600x6 tri pole arrays capable of delivering a maximum breakaway force of 6887 lbs. Saves the use of extra materials while welding!

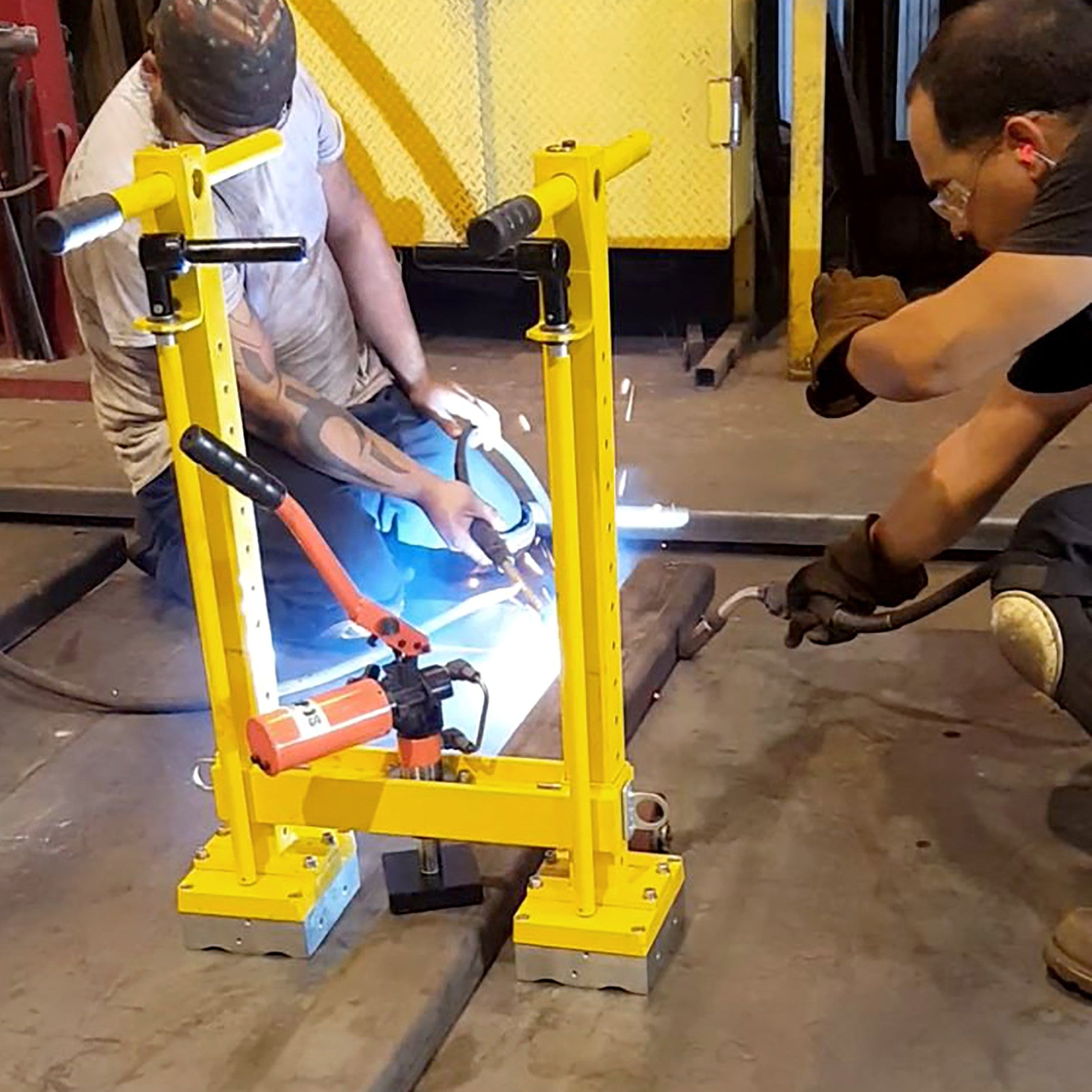

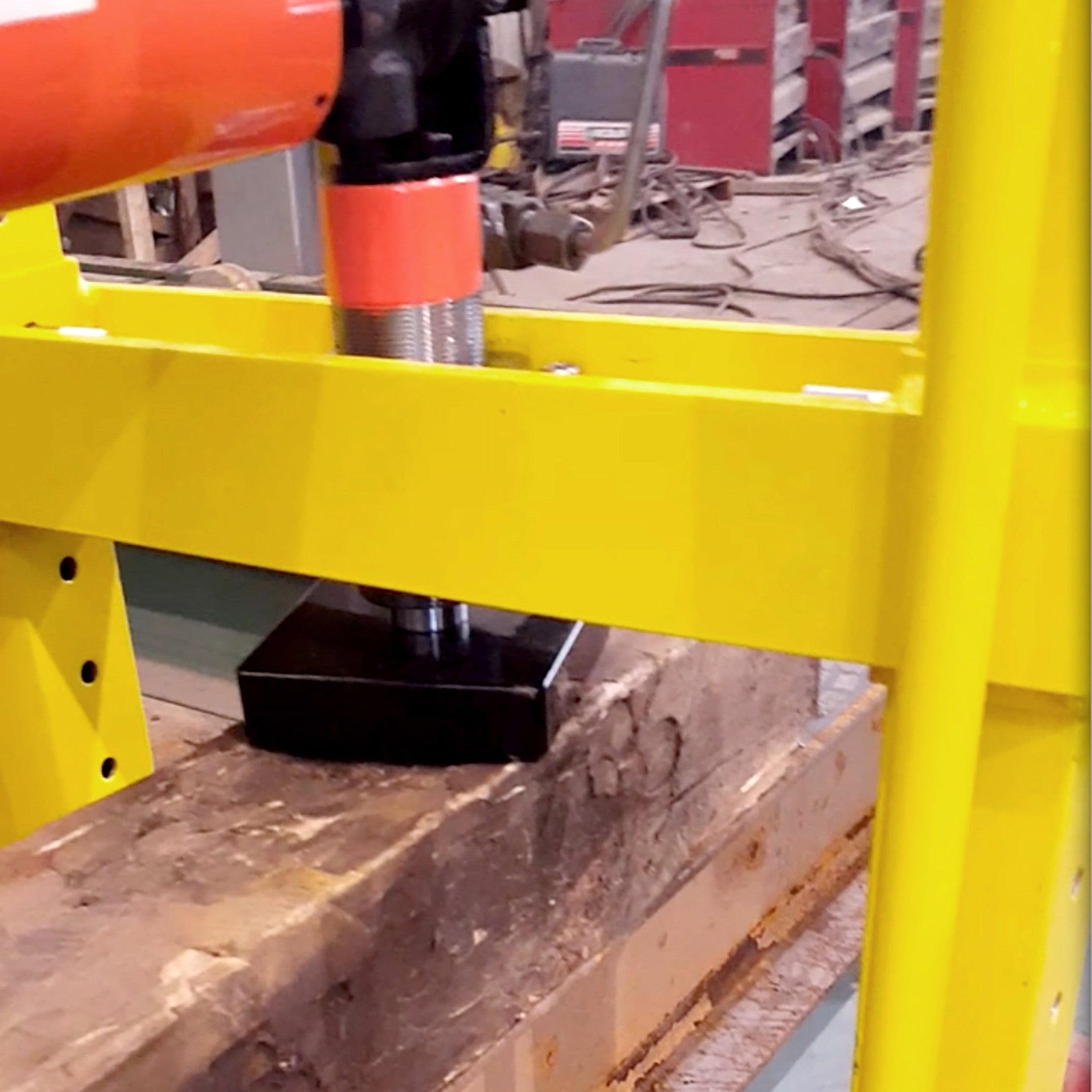

Lifters make contact with the base material and are turned on by simply actuating two handles. Once the magnets are actuated, the hydraulic jack can be pumped. This will reduce the air gap and allow for easy welding.

FEATURES & BENEFITS

• Removes air gaps between structural members (stiffeners) and their base material.
• Works stronger on thinner materials.
• Patented shallow field technology offers the ability to weld closely to magnets without having a negative effect on the weld and gives you superior grip on thinner material.
• Lighter than other competitors.
• Magnet turns completely OFF and stays clean.

SPECIFICATIONS

* Max Breakaway determined in laboratory environment on 2” thick SAE1018 Steel with surface roughness 63 micro inches.

Downloads

3 Ton Beam Jack Downloads:

• Magswitch 3 Ton Beam Jack Flyer
• Magswitch 3 Ton Beam Jack Spec Sheet
• Magswitch 3 Ton Beam Jack STEP File

Magswitch Downloads:

• Magswitch Beam Jack Series Brochure
• Magswitch Manual Catalog
