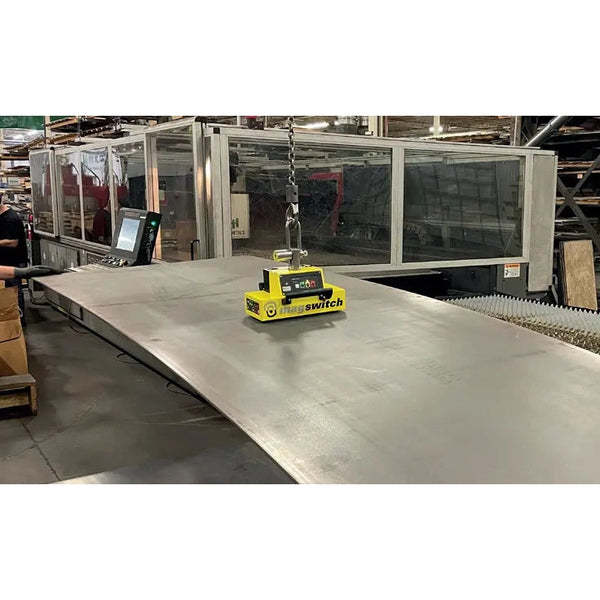

CE 2100 Magnetic Lifter - 8140978

Magswitch's heavy-lifting CE Magnetic Lifters are the new generation of SPM battery magnets.
Lifting Device Features
- Automatic on/off actuation when landing and placing the workpiece in AUTO mode.
- 3:1 safety factor.
- Fails safe – no power required once actuated.
- 400 operation cycles before recharging 8h by power supply of 110V / 230V.
- Variable Flux Output (VFO) for de-stacking (1/4in min)
- On tool button or by wireless remote control
- Coming in 2023 – replaceable and part specific Pole shoes
IMPORTANT note ASME B30.20 standards take precedence over all data provided. We strongly advise operators to be familiar with this standard prior to using any underhook lifter.
Specifications
- Maximum Breakaway Force 1,2: 6300lb / 2850 kg
- Breakaway Force (@ SWL 3:1): 2100lb / 950kg
- Minimum Thickness for De-Stacking3 – VFO capable: Level 1: 1/4in / 6mm, Level 2: 5/16in / 8mm, Level 3: 13/32in / 10mm
- Charging Supply Voltage: 110V/230V
- Charging Time: 8 hours
- Number of Cycles per Charge: 400
- Net Weight: 90lb / 41kg
- Mounting Option: Single Hoist Ring
- Hold Surface (L x W): 12.6in x 5.1in
- Dimensions (L x W x H): 14in x 6.5in x 6.7in
- Determined in laboratory environment on SAE1018 Steel with surface roughness 63 micro inches with optimized pole shoes. Many factors contribute to the actual breakaway force and safe working load in each application. Consult a Magswitch Applications Engineer and test the Magswitch in each application before deployment.
- All data applies to unit with standard combination V/flat pole shoes installed.
- Determined with SAE1018 Steel L=200mm W=200mm.
- Maximum forces listed above are not safe lifting forces. Designer must take into account safety factor when specifying tool. Magswitch recommends SWL = 3:1 for most lifting applications.
CE2100 | Air gap <0.1mm | Air gap 0.1 to 0.3mm | Air gap 0.3 to 0.5mm |
---|---|---|---|
Material Thickness mm [in] | Maximum Load (kg) [lbs] | Maximum Load (kg) [lbs] | Maximum Load (kg) [lbs] |
4 [0.157] | 95 [209] | 90 [198] | 85 [187] |
6 [0.236] | 190 [418] | 185 [407] | 175 [385] |
10 [0.393] | 380 [837] | 370 [815] | 355 [782] |
16 [0.629] | 645 [1421] | 620 [1366] | 570 [1256] |
20 [0.787] | 825 [1818] | 790 [1741] | 725 [1598] |
25 [0.984] | 915 [2017] | 880 [1940] | 795 [1752] |
40 [1.574] | 950 [2094] | 900 [1984] | 810 [1785] |
