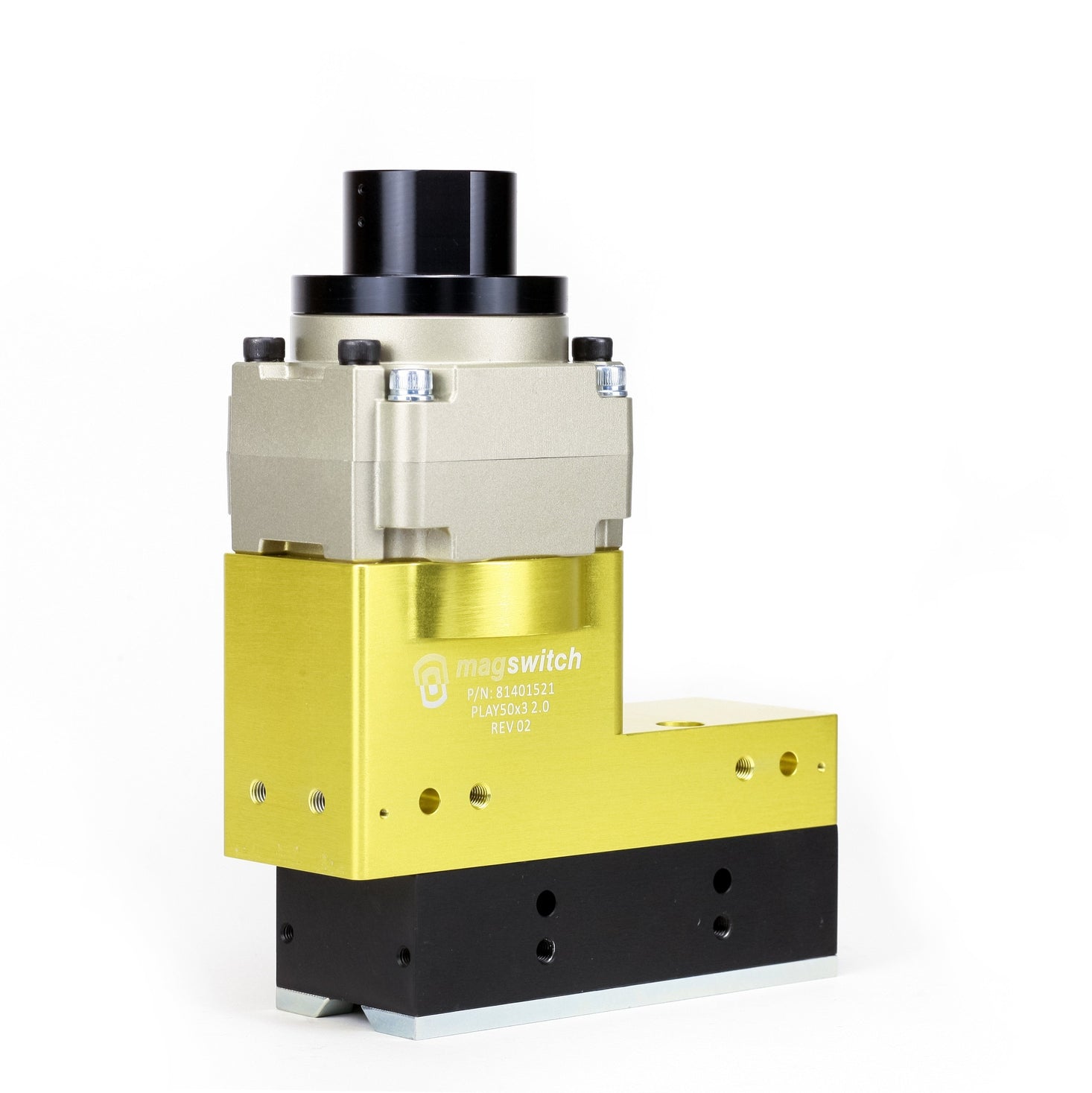

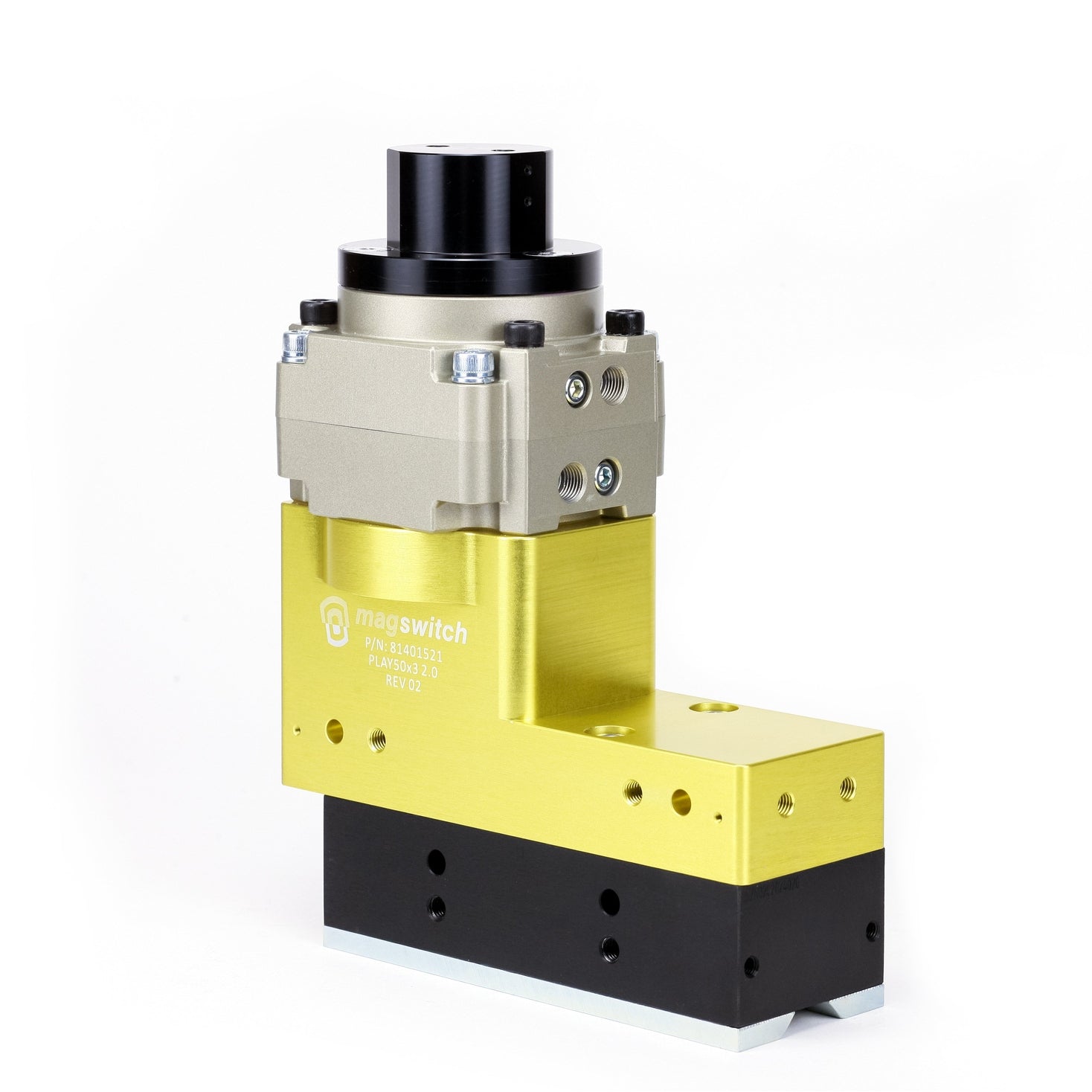

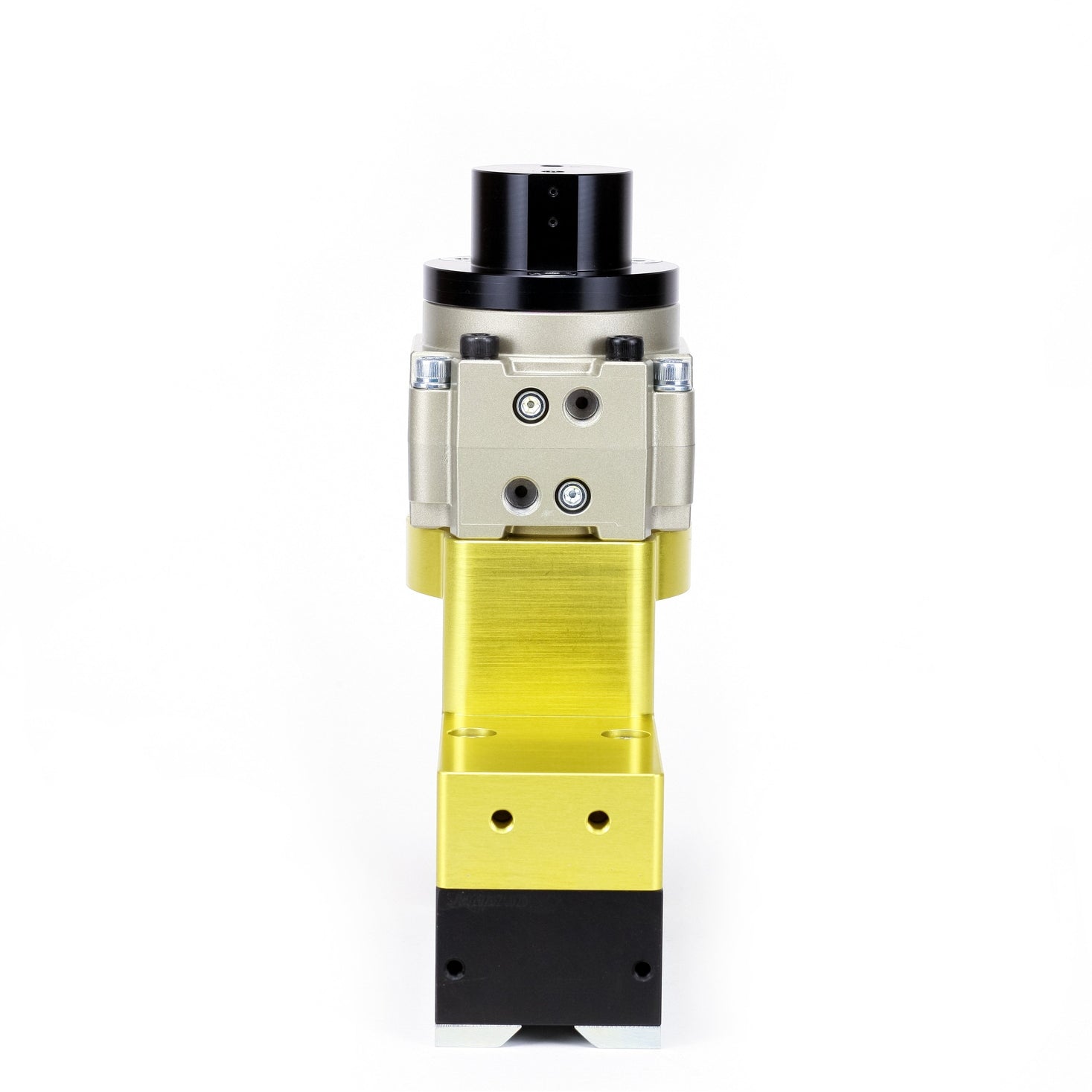

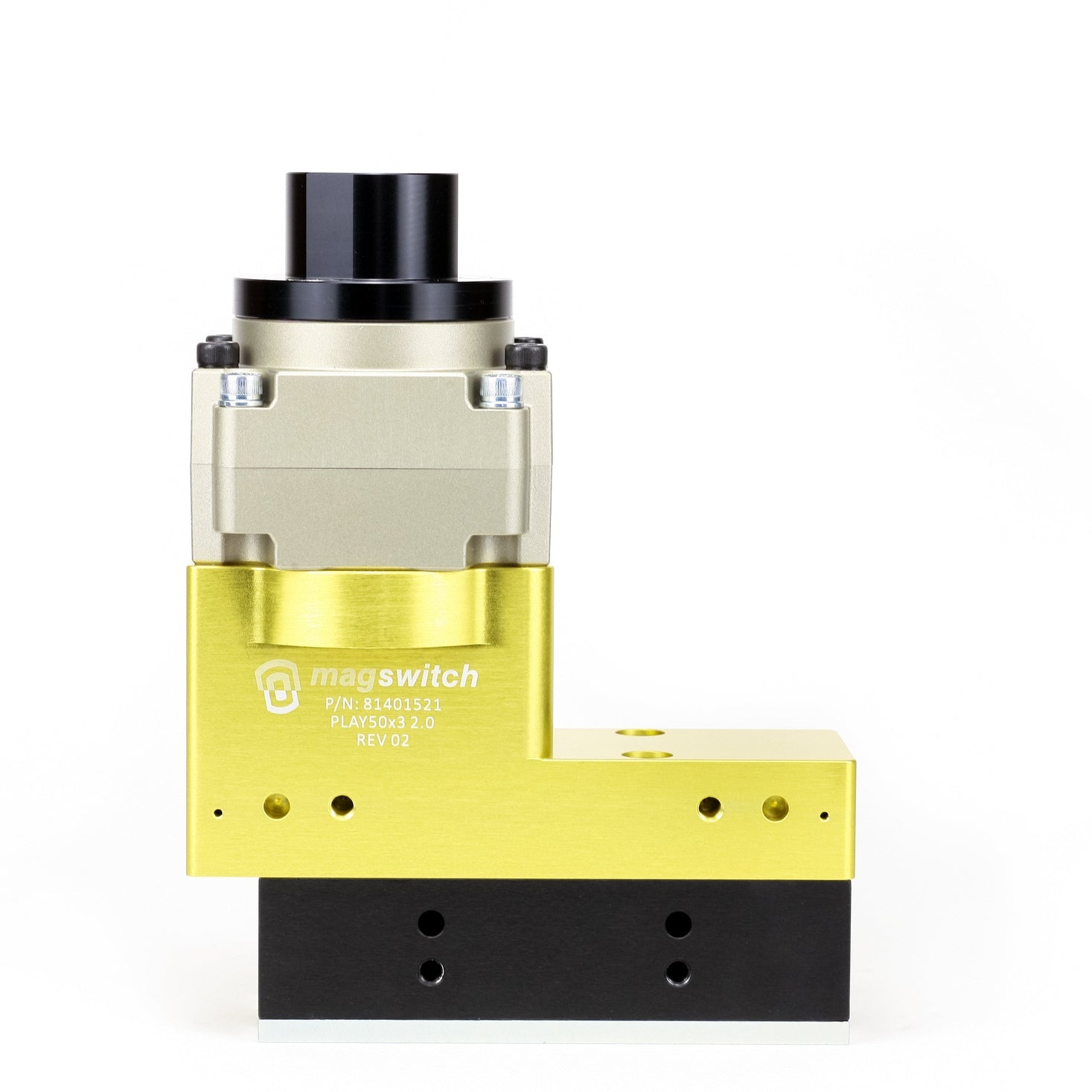

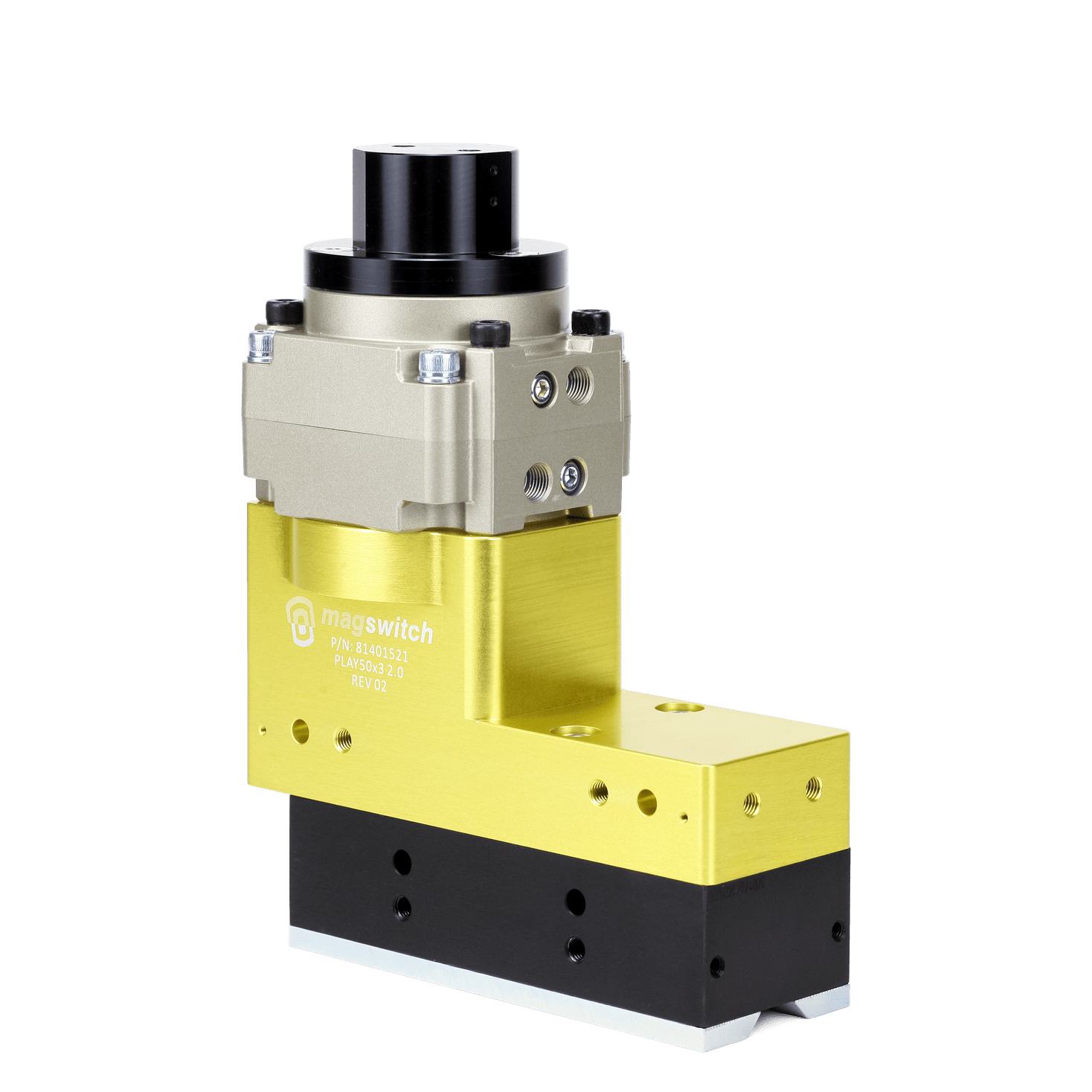

Magswitch PLAY50x3 2.0 - 81401521

Magswitch PLAY50x3 2.0 - 81401521
Magswitch PLAY50x3 2.0 - 81401521
Magswitch PLAY50x3 2.0 - 81401521
Magswitch PLAY50x3 2.0 - 81401521
Magswitch PLAY50x3 2.0 - 81401521

Magswitch PLAY50x3 2.0 - 81401521

Write a review
Regular price
$3,402.00 USD
Sale price
$3,402.00 USD
Shipping calculated at checkout.
Quantity must be 1 or more

The Magswitch 50x3 2.0 LAY-series of magnetic grippers for robotic automation utilize magnets arranged in a linear array to extend the depth and footprint of the magnetic field. The larger footprint of the array magnets provides stability for large end effectors and workpieces. With the ability to add custom pole shoes, the LAY magnets can be used with many different part profiles. The LAY 2.0 tools are strong, robust, and a perfect material handling solution for handling pipe, tubes and plate steel.

Contact our engineers to customize the design and fabricate custom pole shoes for your application at applications@magswitch.com

FEATURES & BENEFITS

  • Deep field technology
  • Customizable Contact Surface
  • Best for handling long components
  • Saves energy
  • Fail-safe operation

ACCESSORIES (Sold Separately)

Product SKU Description
8800293* Prox Cap Kit for PLAY50x3/4/PLAY70x2 (Included)
88001716* PSK, PLAY50X3 2.0, FLAT STANDARD POLE SHOE (Included)
88001717 PSK, PLAY50X3 2.0, 135deg V-CUT POLE SHOE
88001718 PSK, PLAY50X3 2.0, 155deg V-CUT POLE SHOE
88001719 PSK, PLAY50X3 2.0, FLAT TEETH POLE SHOE
81401618 PLAY 50x3 EH 2.0, Sustained temperatures of 200C

 * Included with base tool

SPECIFICATIONS

Maximum Breakaway Force 1,2,4 6722N
Maximum Shear 1,2,4 1716N
Minimum Thickness for De-Stack 0.5 in / 12.7 mm
Overall Height (Max) 10.0 in / 254.8 mm
Overall Length 8.1 in / 205.9 mm
Overall Width 3.9 in / 98.3 mm
Net Weight 19.84 lbs / 9.0 kg
Magnetic Pole Footprint 2.8x7.17in / 71.1x182.0 mm
Maximum Allowable Pressure 145 psi / 1.00 MPa

* Max Breakaway determined in laboratory environment on 2” thick SAE1018 Steel with surface roughness 63 micro inches. Many factors contribute to the actual breakaway force in each application. Always test the magswitch in each application before deployment. Refer to the Magswitch information booklet for more information.

  • SWL (Safe Working Load) = Maximum Force5/ Safety Force (≥5)
  • 1Determined in laboratory environment on 2” thick SAE1018 Steel with surface roughness 63 micro inches with optimized pole shoes. Many factors contribute to the actual breakaway force and safe working load in each application. Consult a Magswitch Applications Engineer and test the Magswitch in each application before deployment.
  • 2All data applies to unit with flat pole shoes installed.
  • 3Determined with SAE1018 Steel L=200mm W=200mm.
  • 4Values may vary by +/- 5%.
  • 5Maximum forces listed above are not safe lifting forces. Designer must take into account safety factor when specifying tool. Magswitch recommends SWL = 5:1 for most applications.
