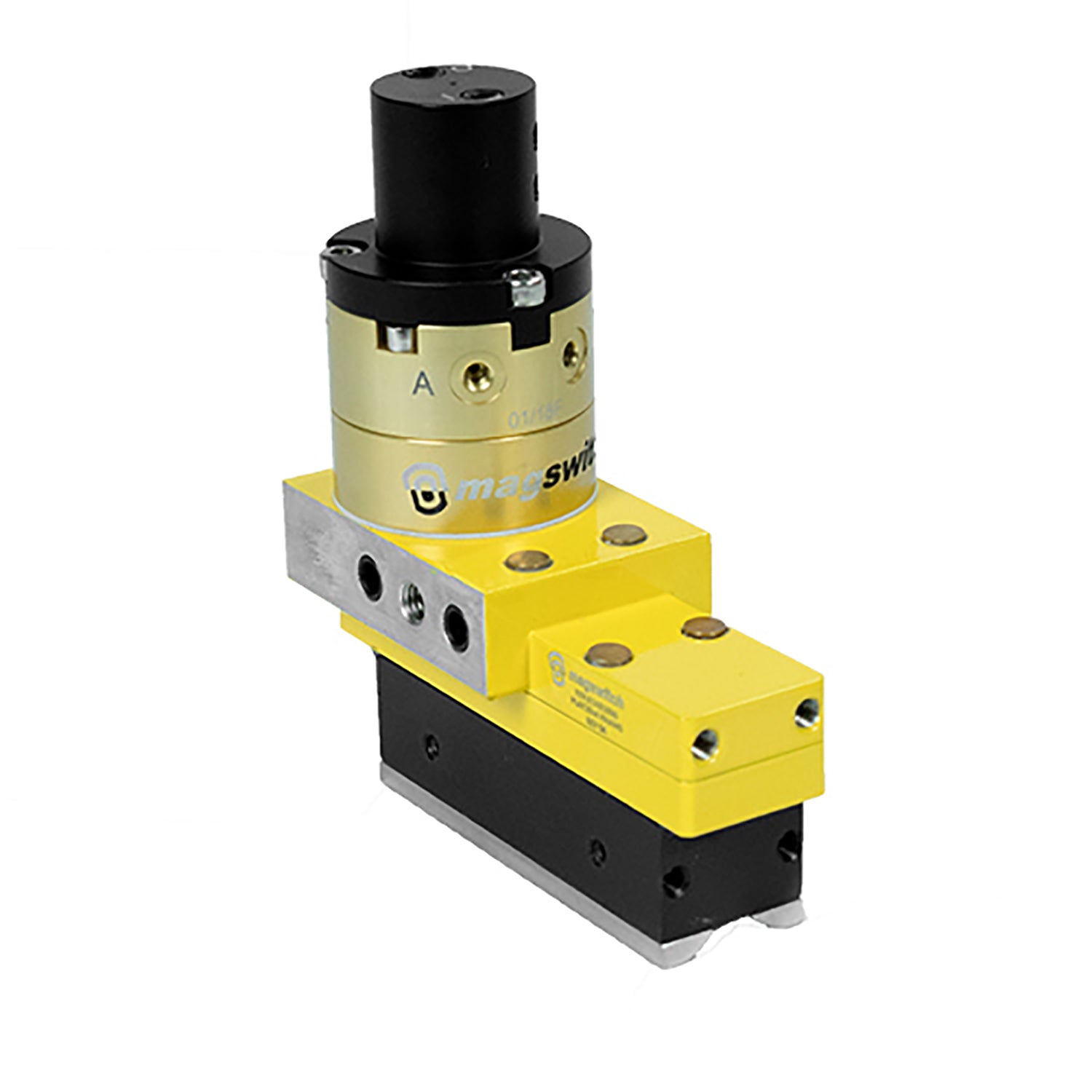

Magswitch PLAY20X4 NAAMS - 81401096

Magswitch PLAY20X4 NAAMS - 81401096, , Mag-Tools,Mag-Tools - Magswitch Tools

Magswitch PLAY20X4 NAAMS - 81401096

Write a review
$1,558.00 USD
$1,558.00 USD
Shipping calculated at checkout.
Quantity must be 1 or more

Magswitch PLAY 20x4 brings the power of multiple magnets together with a single point of actuation. Use these tools when handling long pipes or beams. This tool is built for handling long pipes or beams as well as heavyweight applications. Contact our engineers to customize the design and to fabricate custom pole shoes for your application at applications@magswitch.com.

FEATURES & BENEFITS

  • Customizable Contact Surface
  • Deep field technology
  • Ideal for handling long components
  • Saves energy
  • Fail-safe operation

*Pole Shoes are required. Not Included with base tool.

SPECIFICATIONS

Nominal Maximum Breakaway Force 1,2

1284 N

Nominal Maximum Shear Force 1,2

226 N

Thickness for De-Stack3

0.157 in

4.0 mm

Minimum Actuation Pressure

30 psi

2.07 Bar

Maximum Actuation Pressure

145 psi

10.00 Bar

Off-Target Actuation Pressure

56 psi

3.86 Bar

Actuator Volume

0.92 in^3

15 cm^3

Air Port Threads

2x M5x0.8

Net Weight

2.62 lb

1.19 kg

Individual Magnetic Pole Footprint

3.8"x1.2"

96.2mmx31.12mm



Mounting Options

2x Side: Ø6-M8-Ø6

1x Back: Ø6-M8-Ø6

1x Front: M6-M6



Material Thickness

0.5

0.8

1.0

1.5

2.0

3.0

4.0

5.0

6.0

7.0

- mm (in)

(0.020)

(0.031)

(0.039)

(0.059)

(0.079)

(0.118)

(0.157)

(0.197)

(0.236)

(0.276)

Maximum Force 1,2

111

210

256

547

711

909

1134

1280

1284

1284

- Newton (N)

*Max Breakaway determined in laboratory environment on 2” thick SAE1018 Steel with surface roughness 63 micro inches. Many factors contribute to the actual breakaway force in each application. Always test the Magswitch in each application before deployment. Refer to the Magswitch information booklet for more information.

SWL (Safe Working Load) = Maximum Force5/ Safety Force (≥5)



  • 1 Determined in laboratory environment on 2” thick SAE1018 Steel with surface roughness 63 micro inches with optimized pole shoes. Many factors contribute to the actual breakaway force and safe working load in each application. Consult a Magswitch Applications Engineer and test the Magswitch in each application before deployment.
  • 2 All data applies to unit with flat pole shoes (8800172) installed.
  • 3 Tested and Determined with Two SAE1018 Steel Sheets L=200mm W=200mm Thickness=4mm.
  • 4 Values may vary by +/- 5%.
  • 5 Maximum forces listed above are not safe lifting forces. Designer must take into account safety factor when specifying tool. Magswitch recommends SWL = 5:1 for most applications.
