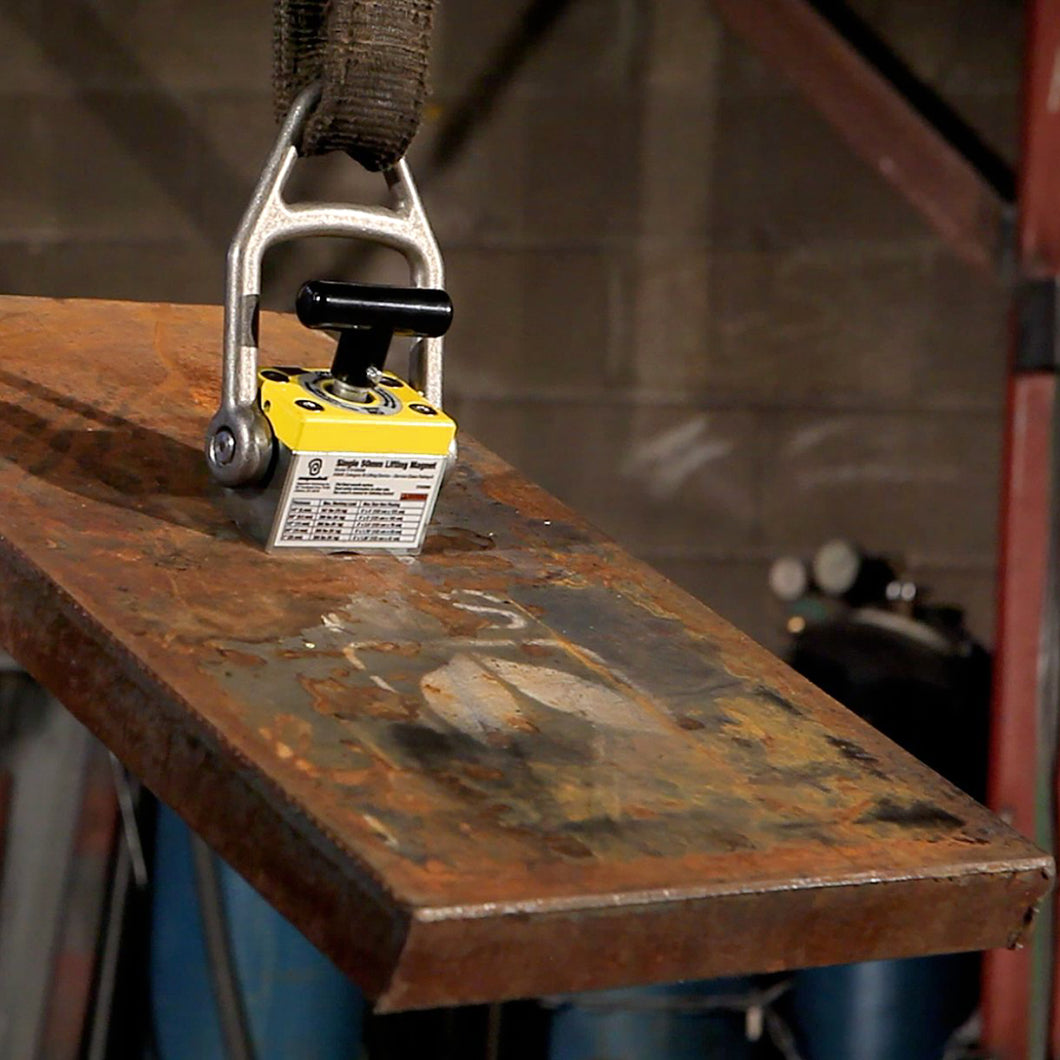

Built for heavy-duty lifting, our magnet technology is powerful without the need for a power source. Safely lock in the on and off position with a 3:1 Safe Working Load of 195 pounds. The pivoting lift hook offers the stability to lift from horizontal to vertical.

FEATURES & BENEFITS

• Magnetic field turns on and off mechanically.
• Does not use an electrical power source.
• Magnet stays clean.
• Holds flat and round surfaces of steel.
• Safety locking handle.
• Full swivel hook allows for lifting from the top or side.
• Strong grip on thin material and uneven surfaces.

SPECIFICATIONS

• Max Breakaway: 584 lbs / 264.9 kg on 2'' steel
• 3:1 Safe Working Load: 195 lbs / 88.4 kgs
• 2:1 Shear Working Load: 70 lbs / 31.7 kgs
• Full Saturation Thickness: 0.5 in / 12.7 mm
• Max Safe Shear: 70 lbs / 31.8 kg
• Minimum Thickness for De-Stack: 0.5 in / 12.7 mm
• Product Weight: 4.4 lbs / 2 kg
• Dimensions: 4.2 x 2 x 7.2 in / 106.6 x 50.8 x 182.8 mm
• Magnetic Pole Footprint: 75 mm x 51.5 mm
