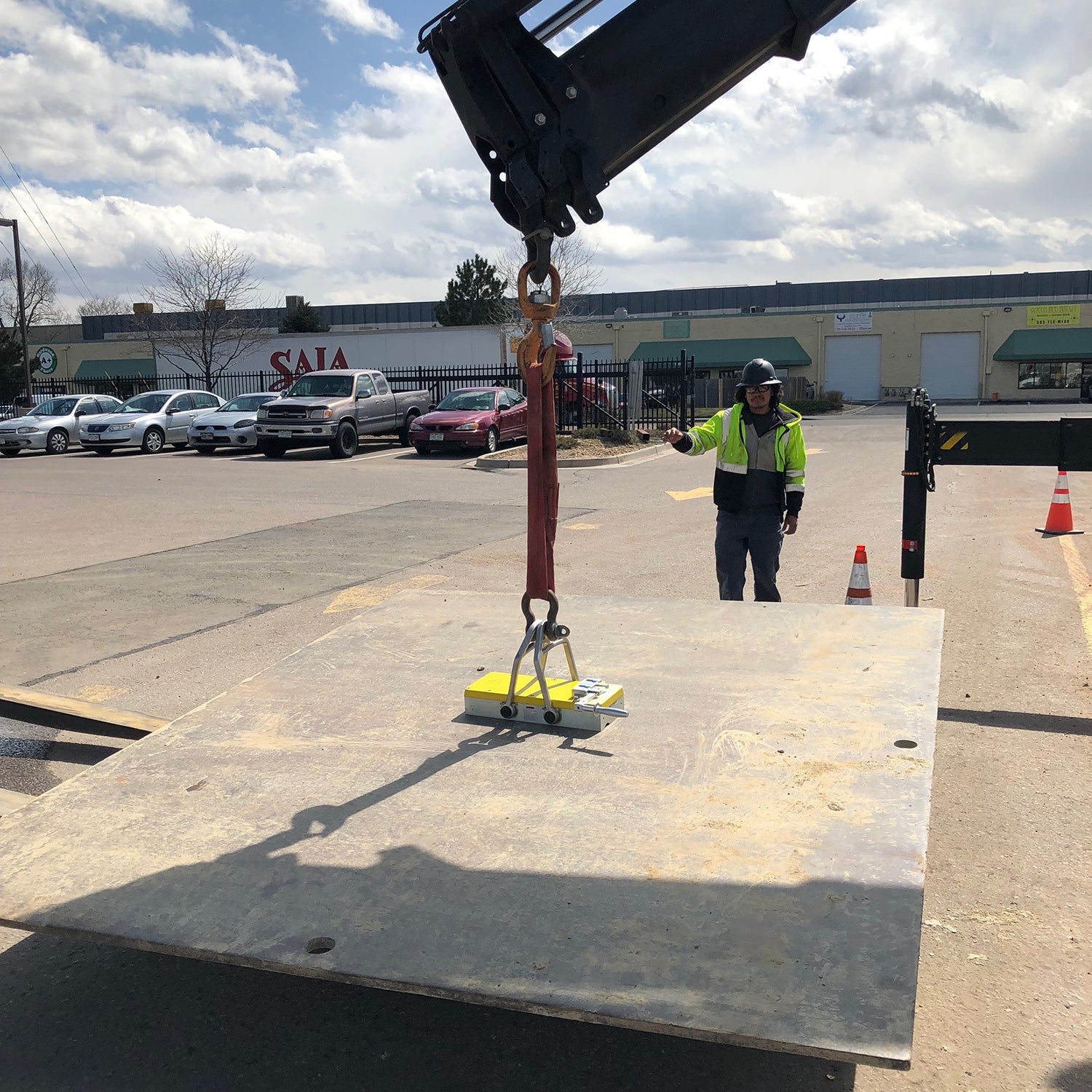

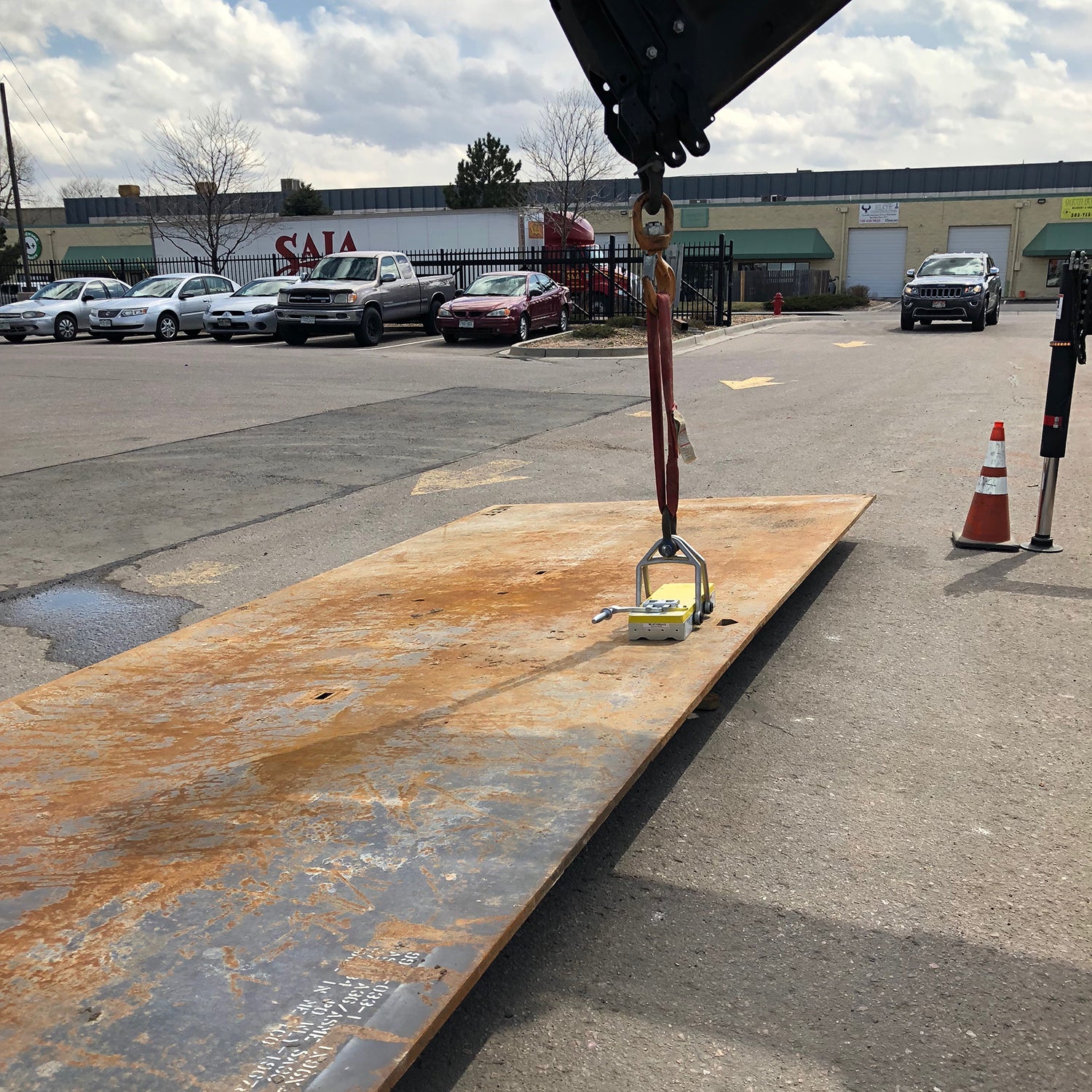

Built for heavy-duty lifting, our magnet technology is powerful without the need for a power source. Safely lock in the on and off position with a 3:1 Safe Working Load of 4025 pounds. The dual lift hook offers the stability to lift horizontally and a single hook to lift into a vertical position.
FEATURES & BENEFITS
- Magnetic field turns completely on and off mechanically.
- Does not use an electrical power source.
- Magnet stays clean.
- Lock On/Off handle.
- Superior hold force on thin steel maximum hold on 1.25" plate.
- Compact, lightweight and easy actuation.
- Lifts large flat sheets, beams, pipe.
- Performs well on air gaps such as rust and dirt.
- Customizable pole shoes to fit almost any application.
- Max Breakaway: 12076 lbs / 5477.6 kg on 3'' steel
- 3:1 Safe Working Load: 4025 lbs / 1825.7 kg
- Full Saturation Thickness: 1.25 in / 31.7 mm
- Minimum Thickness for De-Stack: 1.25 in / 31.7 mm
- Product Weight: 121.3 lbs / 55 kg
- Mounting Thread: M20x2.5
- Dimensions: 19.5 x 12.1 x 11.9 in / 495.3 x 307.3 x 302.2 mm
- Magnetic Pole Footprint: 492.75 mm x 195.2 mm
