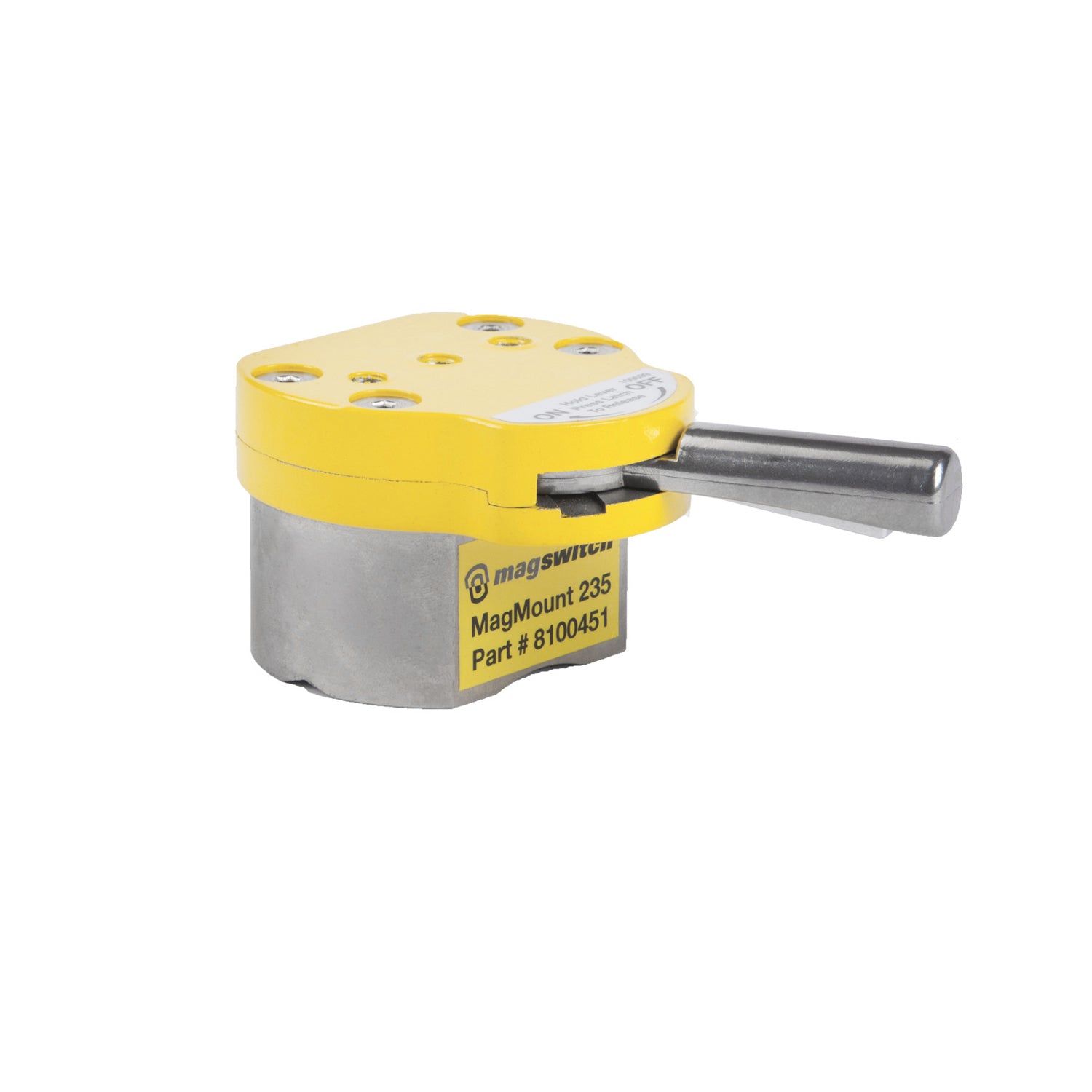

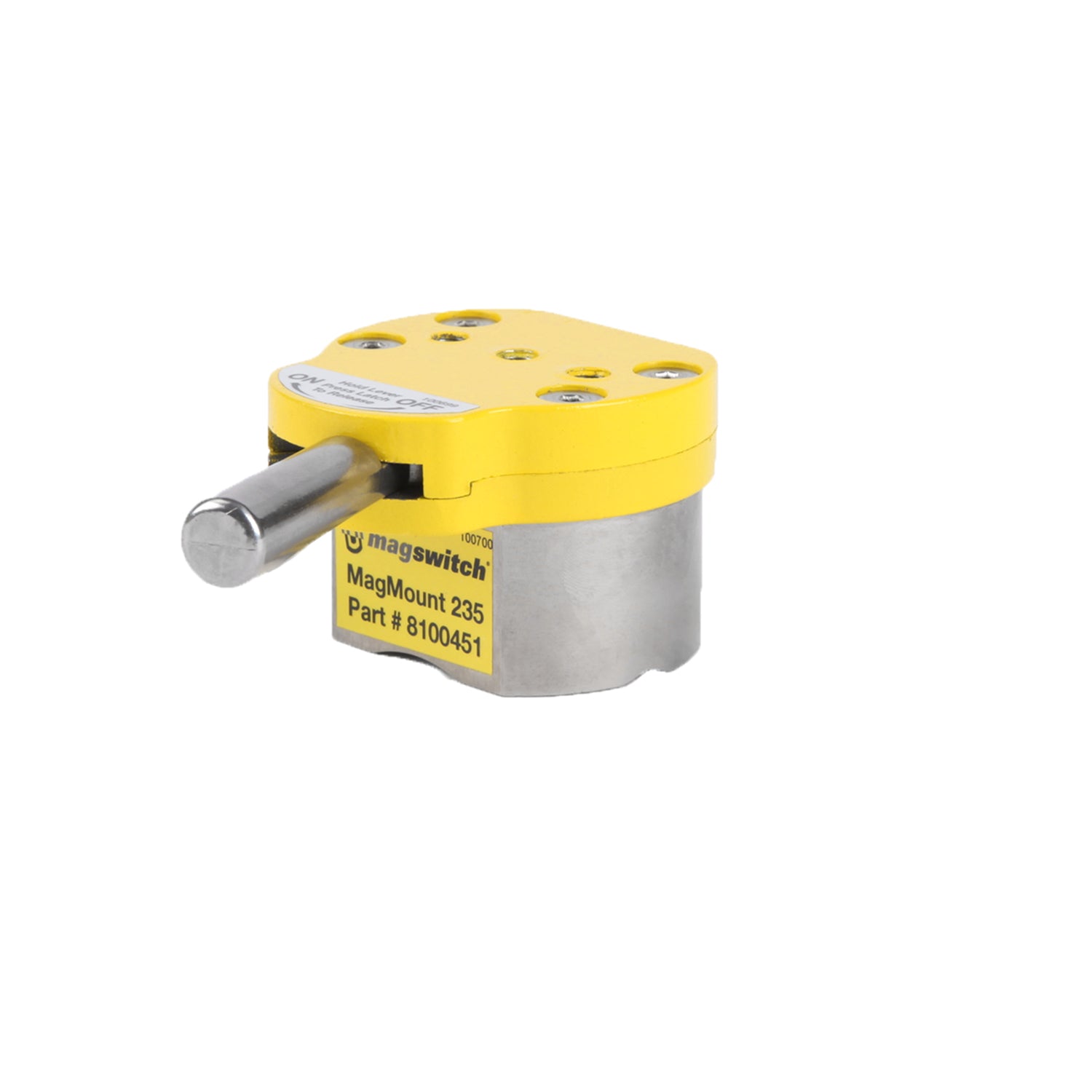

The Magswitch magnetic mount allows for easy movement and placing of a tool. With a single on and off lever, you have 216 pounds of magnetic hold force at your disposal. The top of the tool is ready for mounting a variety of accessories.

FEATURES & BENEFITS

• Magnetic field turns completely on and off mechanically.
• Does not use an electrical power source.
• Magnet stays clean.
• Holds flat and round surfaces of steel.
• Fixed bar magnet is for flat steel.
• Swivel bar magnet is for round or uneven shapes.
• Multiple threaded holes on the top.

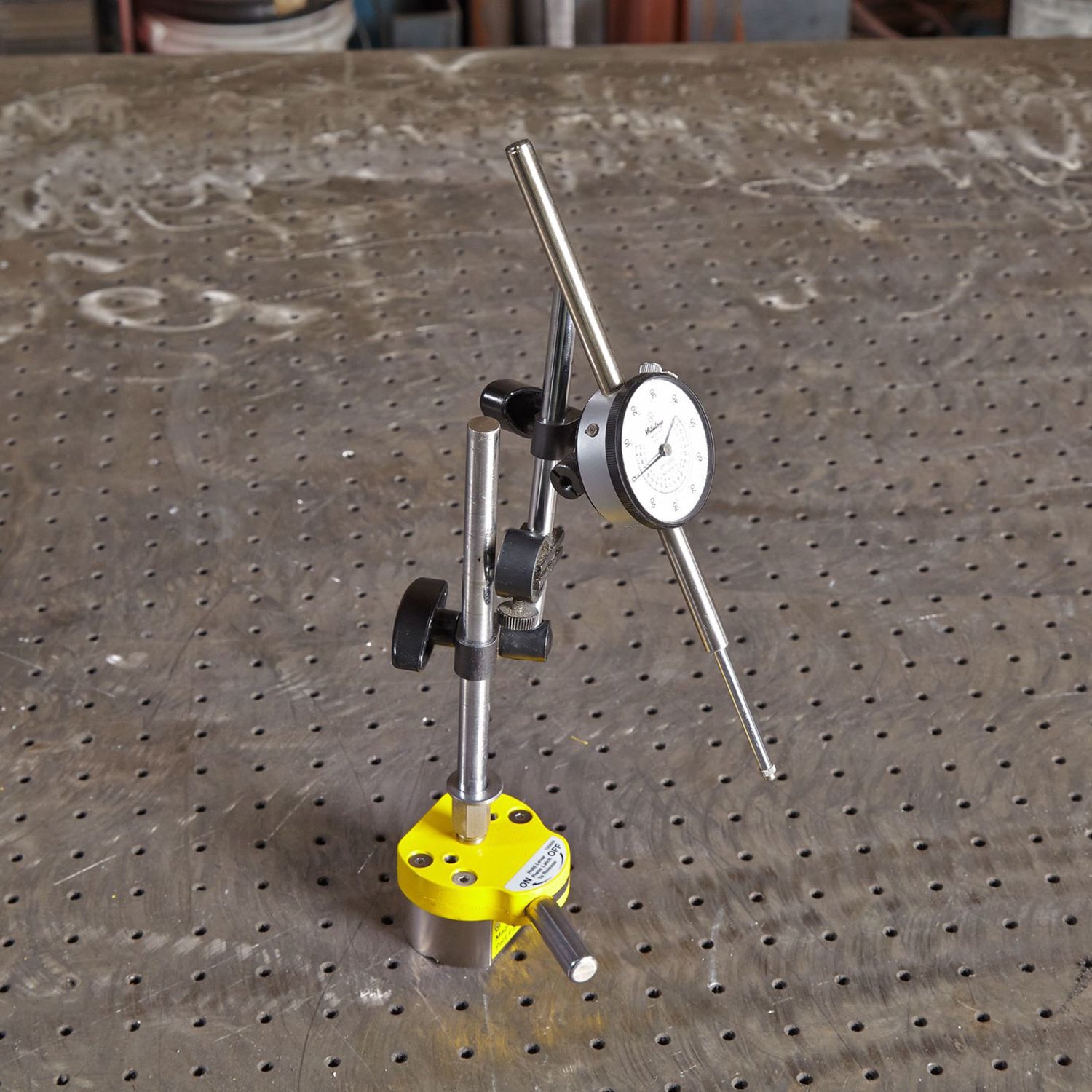

• Perfect for top mount tools, measuring and security devices.

SPECIFICATIONS

• Max Breakaway: 216 lbs (98 kg) on 3/8'' steel
• Full Saturation Thickness: 3/16'' (4.75 mm)
• Product Weight: 1.2 lbs (0.54 kg)
• Dimensions: 3.8 x 2.7 x 1.7 in (96.5 x 68.5 x 43.1 mm)
• Magnetic Pole Footprint: 56 mm x 42 mm

Downloads

MagMount 235 Downloads:

• Magswitch MagMount 235 Spec Sheet
• Magswitch MagMount 235 Step File
• Magswitch MagMount 235 SketchUp Files

Magswitch Downloads:

• Mounting Magnets Brochure
• Magswitch Manual Catalog
