Magswitch MagJig 95 - 8110004

Magswitch MagJig 95 - 8110004 - Magswitch
Magswitch MagJig 95 - 8110004 - Magswitch
Magswitch MagJig 95 - 8110004 - Magswitch
Magswitch MagJig 95 - 8110004 - Magswitch

Magswitch MagJig 95 - 8110004

8 Reviews
Regular price
$38.99 USD
Sale price
$38.99 USD
Shipping calculated at checkout.
Quantity must be 1 or more
 More payment options

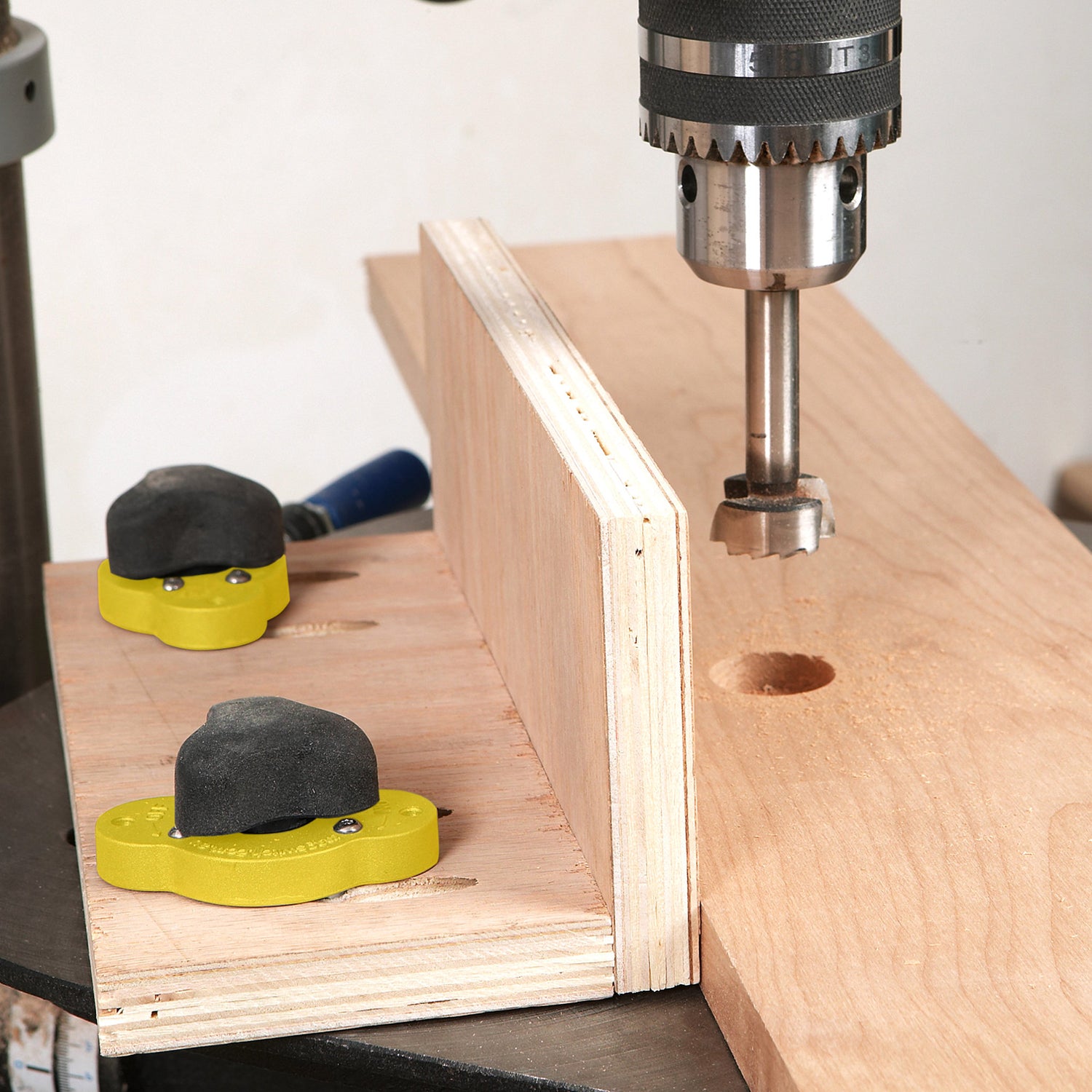

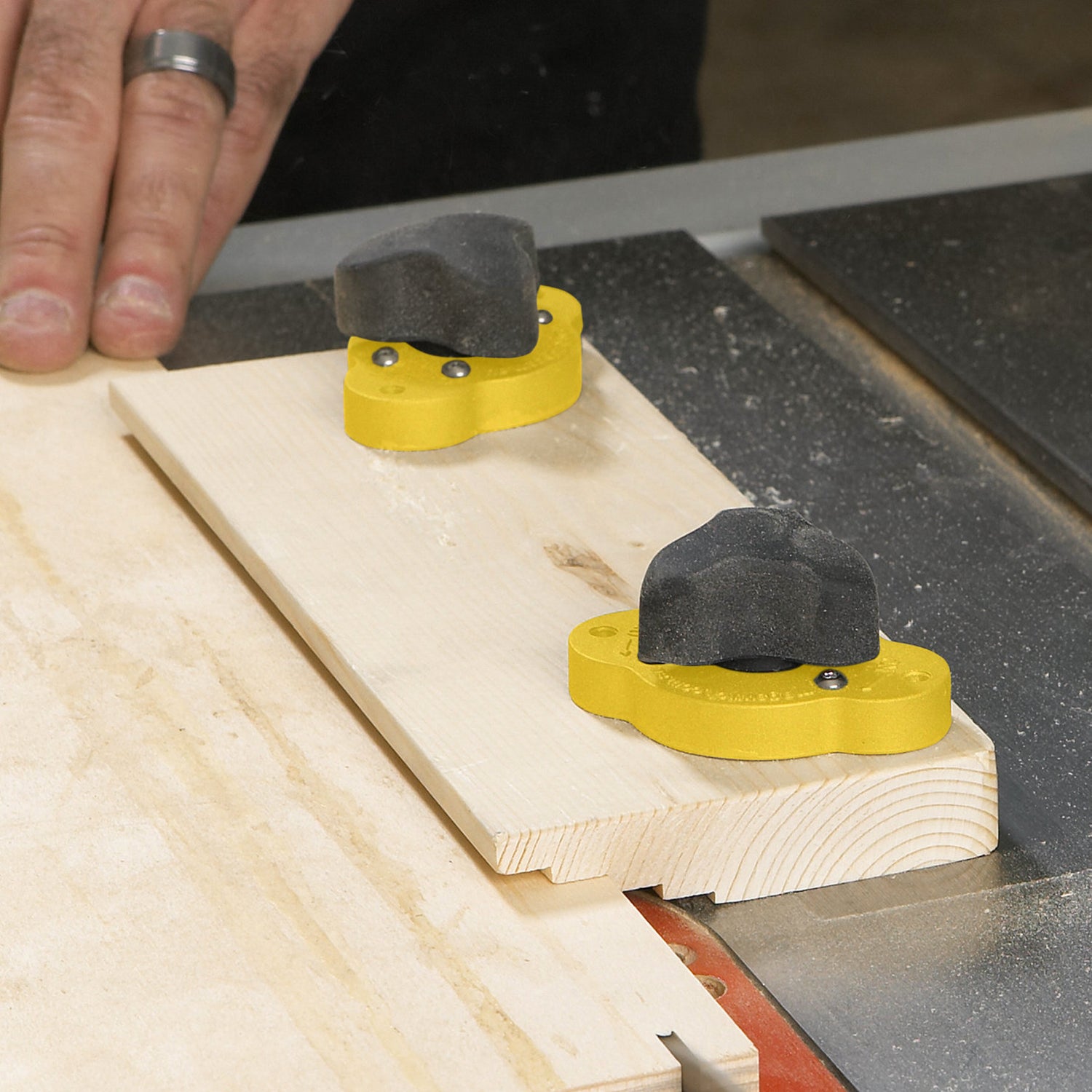

The Magswitch MagJig 95 magnetic fixturing clamp will secure your fixture into place. Rotate the knob to turn on and off 95 pounds of magnetic hold force. Simply drill a hole in a fixture and place the MagJig in to use for downward pressure clamping.

FEATURES & BENEFITS

  • Magnetic field turns completely on and off mechanically.
  • Does not use an electrical power source.
  • Magnet stays clean.
  • Holds flat and round surfaces of steel.
  • 3/4" standoff for flush mount
  • Designed with screw holes to add more security in a fixture.
  • Excellent for woodworking, welding, and fabrication.

SPECIFICATIONS

  • Max Breakaway: 95 lbs (43 kg)
  • 2:1 Shear Working Load: 9 lbs (4 kg)
  • Product Weight: 0.2 lbs (0.1 kg)
  • Dimensions: 2.2 x 1.3 x 1.8 in (55.8 x 33 x 45.7 mm)
  • Magnetic Pole Footprint: 30 mm x 21 mm (1.18 in x 0.82 in)

Downloads

MAGJIG 95 Downloads:

Magswitch Downloads:

×
