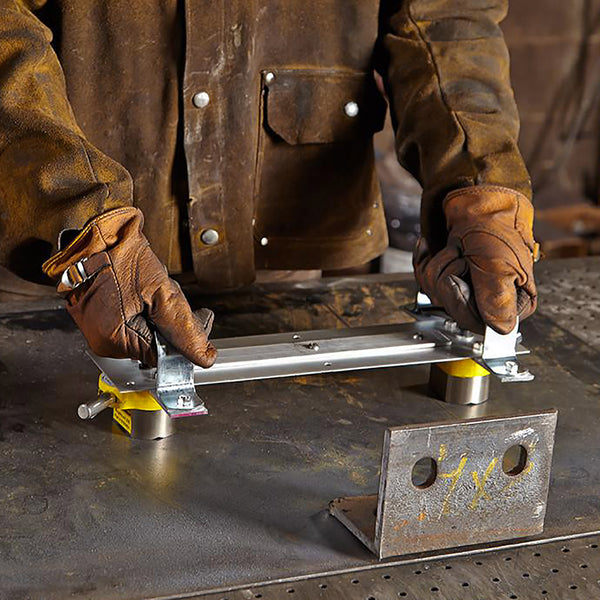

Safely pick up hot, sharp or dirty steel with our strong magnets. An ergonomic fixed handle and a lever locking mechanism prevent accidental release. Easily handle or drag a small steel sheet with 431 pounds of magnetic holding force.

FEATURES & BENEFITS

• Magnetic field turns completely on and off mechanically.
• Does not use an electrical power source.
• Holds flat and round surfaces of steel.
• Lightweight and easy to use.
• Shallow field magnets allow for de-stacking of thin material.
• Adjustability range length allows for versatile uses.

SPECIFICATIONS

• Max Breakaway: 431 lbs / 195.5 kg (on 3/8'' steel)
• 2:1 Shear Working Load: 3/16'' / 4.75 mm
• Product Weight: 4.3 lbs / 1.9 kg
• Dimensions: 23 x 7.3 x 4.4 in / 584.2 x 185.4 x 111.7 mm
• Magnetic Pole Footprint: 2 x 56 x 42 mm

Downloads

DUAL HAND LIFTER 235 Lifting Magnet Downloads:

• Magswitch Dual Hand Lifter 235 Spec Sheet
• Magswitch Dual Hand Lifter 235 Step File

Magswitch Downloads:

• Heavy Lifting Solutions Catalog
• Lifting Systems and Solutions Brochure
• Magswitch Manual Catalog
