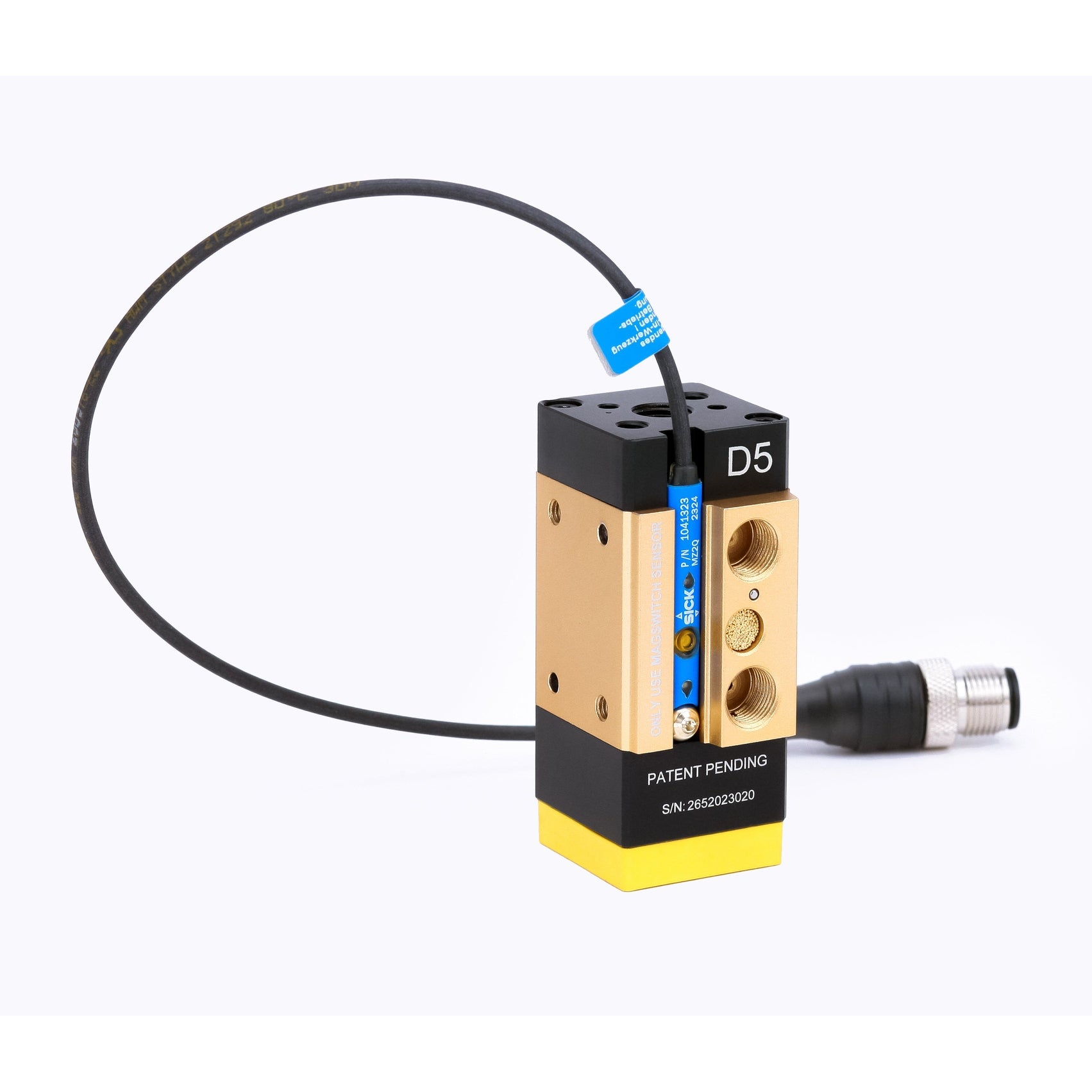

D5 with Sensor Kit - 88001581

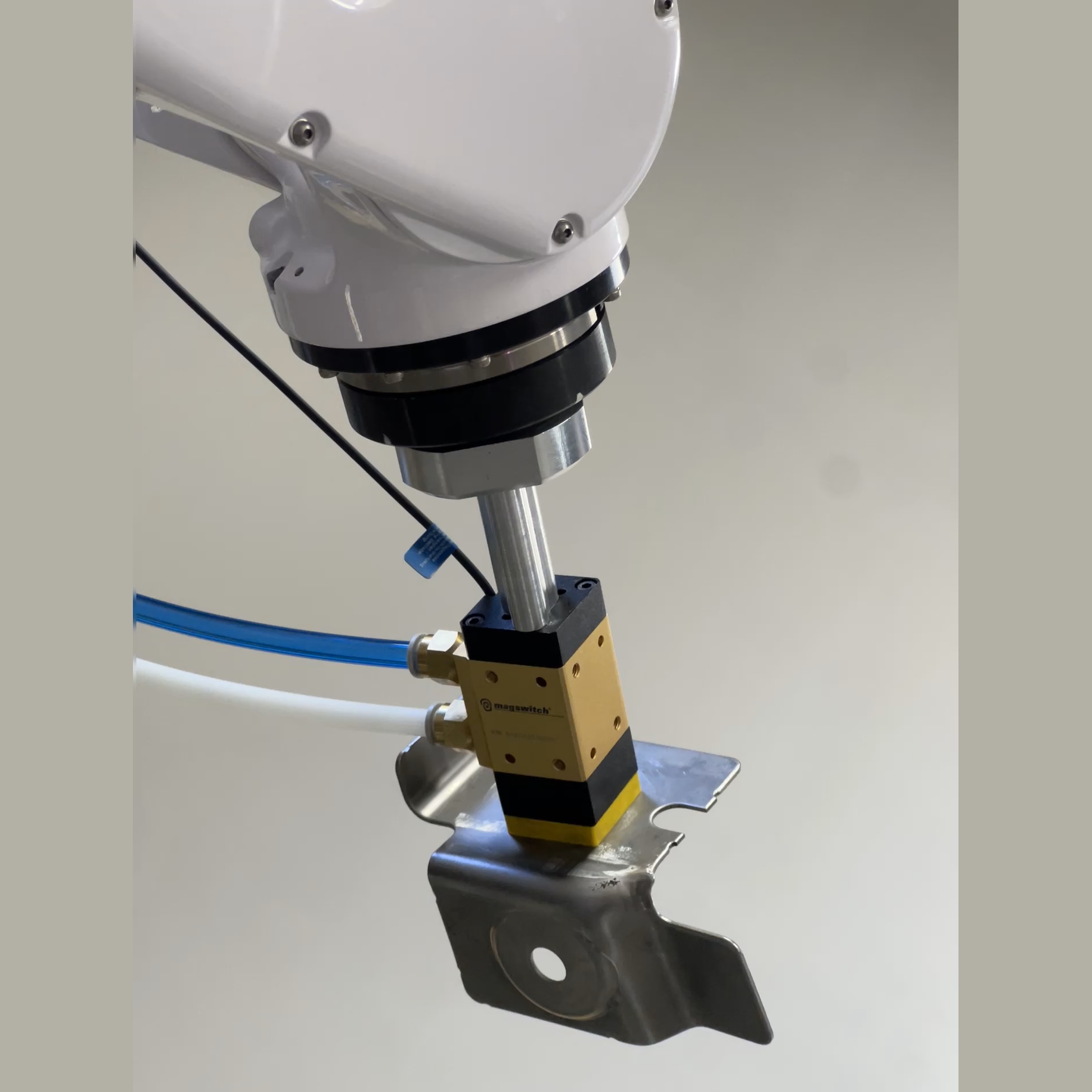

As the most compact member of the Magswitch D Series robotic end of arm tooling (EOAT), the D5 shines in situations demanding an ultra-shallow magnetic field. Harnessing the power of shallow field array technology, the D5 emerges as an exceptional tool, adept at the tasks of de-stacking and picking small, thin materials that often pose challenges beyond the reach of many conventional magnets.
FEATURES & BENEFITS
- Small footprint for locating complicated geometries
- Low Air Pressure Requirement
- Fail-Safe
We highly recommend consulting a Magswitch automation expert to ensure the product is the right choice for your application before purchasing. All sales are final, no returns or refunds will be accepted.
Tool without Sensor:
|
Magswitch D5 Tool without Sensor Kit |
81401540 |
Standard Kits Available:
|
D5/D12 Friction Pad Kit (included and pre-installed) |
|
|
D5/D12 Rubber Band Kit (included in package) |
|
|
D5/D12 Sensor Kit (sold separately) |
|
|
D5/D12 28.5mm Ball Mount Kit (sold separately) |
Note: Magswitch D5 (81401540) does NOT come with a Sensor Kit (88001580). 88001581 is the bundle kit of D5 with the Sensor Kit installed.
SPECIFICATIONS
|
Maximum Breakaway Force (Without Friction Pad) 1 |
39 N |
|
|
Maximum Breakaway Force (With Friction Pad) 1 |
37 N |
|
|
Maximum Shear Force (Without Friction Pad) 1 |
18 N |
|
|
Maximum Shear Force (With Friction Pad) 1 |
25 N |
|
|
Thickness for De-Stack2 |
0.024 in |
0.6 mm |
|
Maximum Allowable Pressure |
145 psi |
10.0 Bar |
|
On Target Actuation Pressure (Full Saturation) |
30 psi |
2.1 Bar |
|
Air Port Threads |
2x G1/8 (1/8 BSP) |
|
|
Net Weight |
0.4 lb |
0.2 kg |
|
Individual Magnetic Pole Footprint |
0.91" x 0.91" |
23mm x 23mm |
|
Mounting Options |
3x Side: Ø3-M4-Ø3-M4 1x Top (center): G1/8 1x Top: Ø3-M5-Ø3-M5 |
|
|
Material Thickness - mm (in) |
0.5 |
1.0 |
2.0 |
3.0 |
|
(0.020) |
(0.039) |
(0.079) |
(0.118) |
|
|
Maximum Force 1 Without Friction Pad - Newton (N) |
24 |
38 |
39 |
39 |
|
Maximum Force 1 With Friction Pad - Newton (N) |
21 |
34 |
37 |
37 |
|
Required Air Pressure 3 Without Friction Pad - Bar (psi) |
2.1 |
2.1 (30) |
2.1 (30) |
2.1 (30) |
|
(30) |
||||
|
Required Air Pressure 3 With Friction Pad - Bar (psi) |
2.1 |
2.1 (30) |
2.1 (30) |
2.1 (30) |
|
(30) |
-
1 Determined in laboratory environment on 2” thick SAE1018 Steel with surface roughness 63 micro inches with optimized pole shoes. Many factors contribute to the actual breakaway force and safe working load in each application. Consult a Magswitch Applications Engineer and test the Magswitch in each application before deployment.
- 2 Tested and Determined with Two SAE1018 Steel Sheets L=200mm W=200mm Thickness=1.5 mm.
- 3 Values may vary by +/- 5%.
- 4 Maximum forces listed above are not safe lifting forces. Designer must take into account safety factor when specifying tool. Magswitch recommends SWL = 5:1 for most applications.
