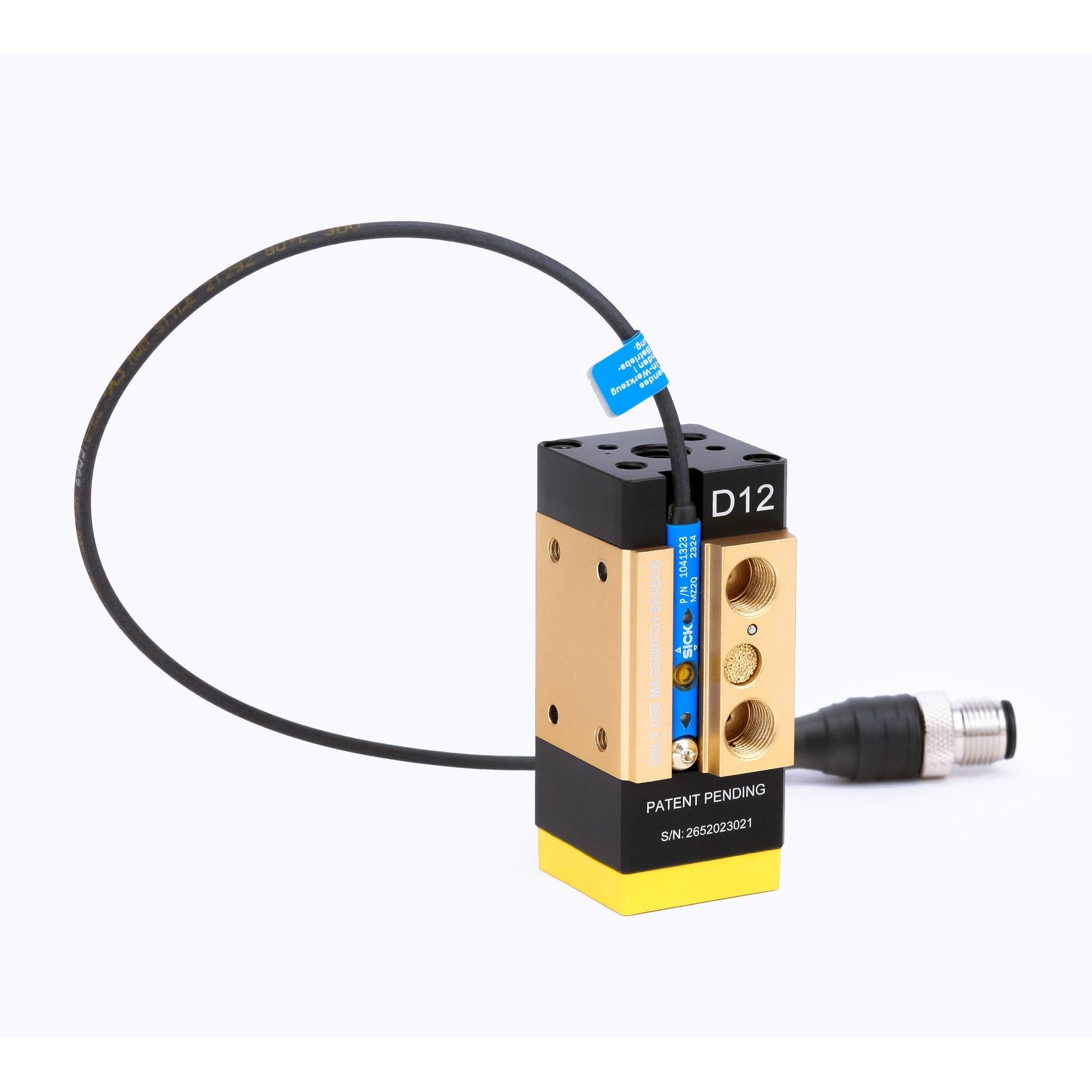

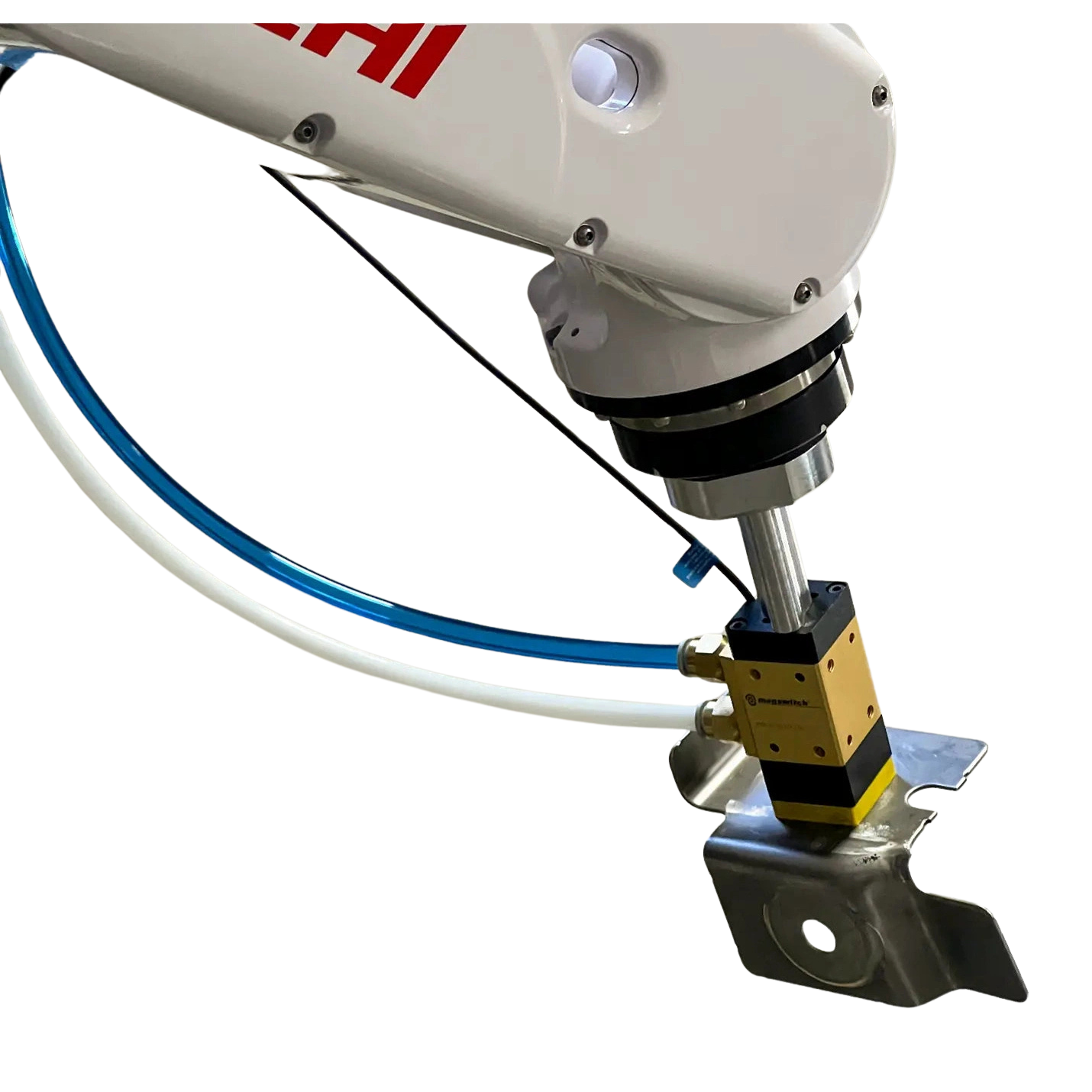

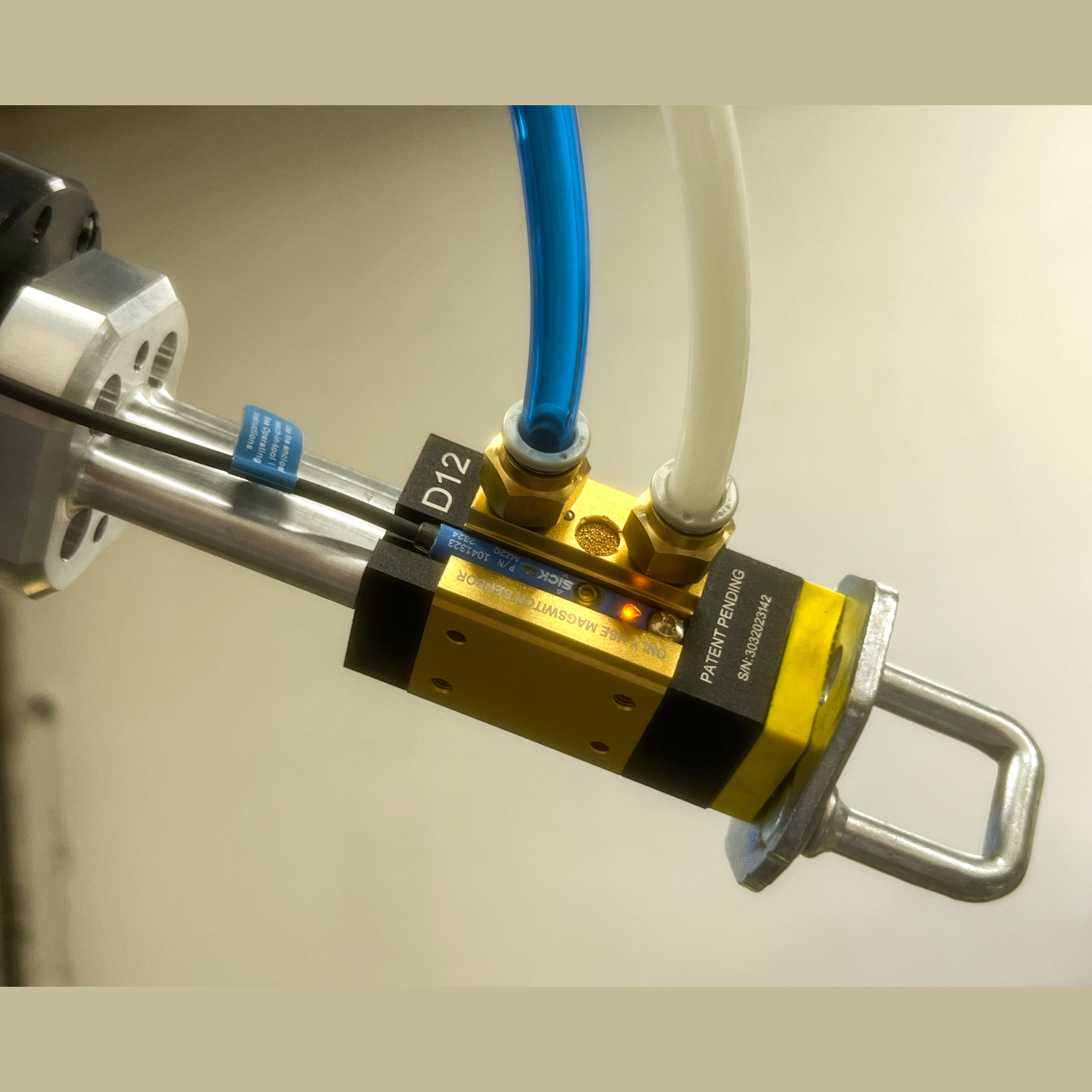

The Magswitch D12 robotic end of arm tooling (EOAT) is specifically designed for the delicate handling of small parts. Equipped with cutting-edge shallow field array technology, it excels as an exceptional solution for effortlessly de-stacking and lifting thin materials, a task that often proves challenging for conventional magnets.

FEATURES & BENEFITS

  • Small footprint for locating complicated geometries
  • Low Air Pressure Requirement
  • Fail-Safe

We highly recommend consulting a Magswitch automation expert to ensure the product is the right choice for your application before purchasing. All sales are final, no returns or refunds will be accepted.

Tool and Sensor Bundle Kit Available:

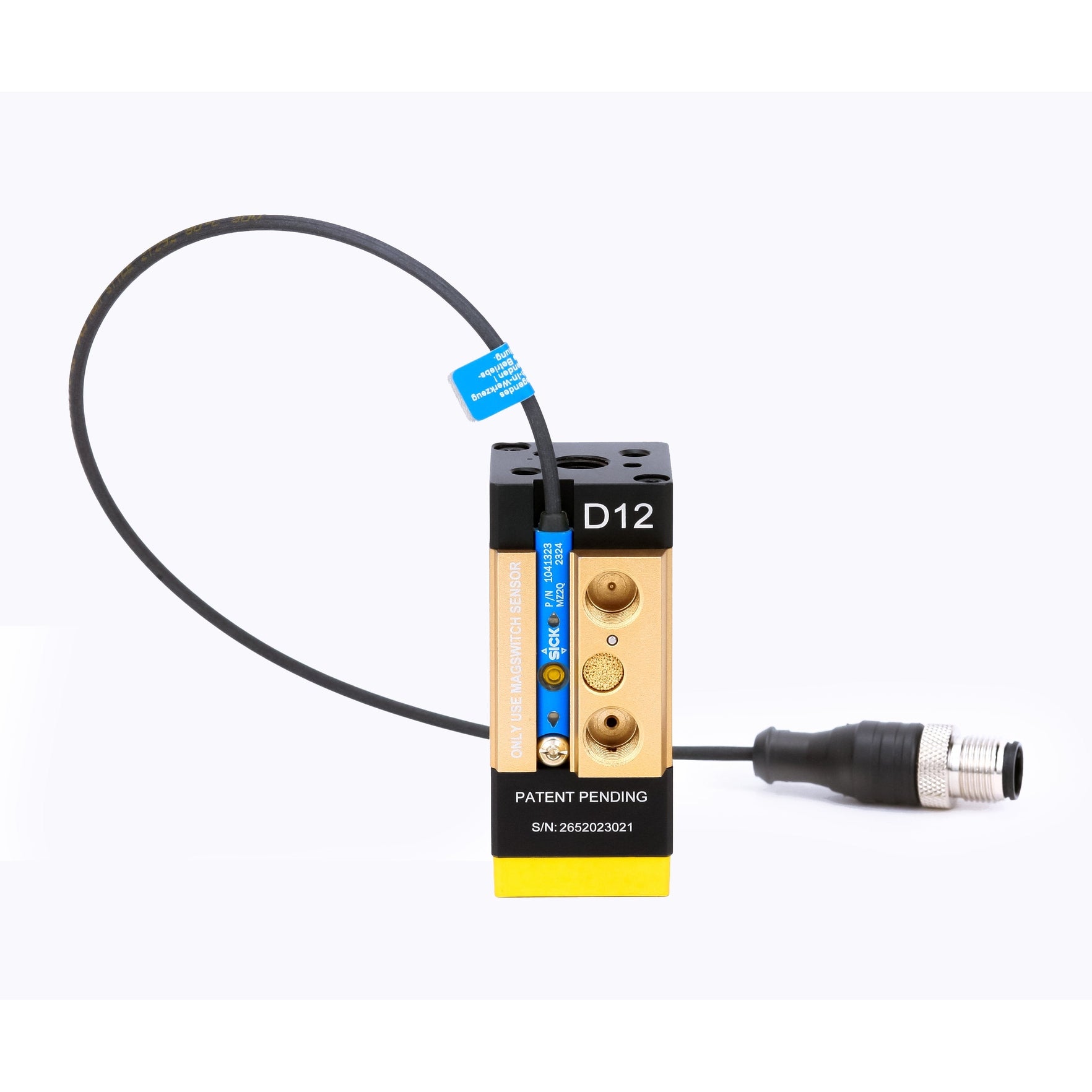

Magswitch D12 with Sensor Kit (sensor installed)

88001584

Standard Kits Available:

D5/D12 Friction Pad Kit (included and pre-installed)

88001560

D5/D12 Rubber Band Kit (included in package)

88001558

D5/D12 Sensor Kit (sold separately)

88001580

D5/D12 28.5mm Ball Mount Kit (sold separately)

88001562

Note: Magswitch D12 (81401541) does NOT come with a Sensor Kit (88001580). 88001584 is the bundle kit of D12 with the Sensor Kit installed.

SPECIFICATIONS

Maximum Breakaway Force (Without Friction Pad) 1

118 N

Maximum Breakaway Force (With Friction Pad) 1

111 N

Maximum Shear Force (Without Friction Pad) 1

43 N

Maximum Shear Force (With Friction Pad) 1

49 N

Thickness for De-Stack2

0.059 in

1.5 mm

Maximum Allowable Pressure

145 psi

10.0 Bar

On Target Actuation Pressure (Full Saturation)

57 psi

3.9 Bar

Air Port Threads

2x G1/8 (1/8 BSP)

Net Weight

0.4 lb

0.2 kg

Individual Magnetic Pole Footprint

0.91" x 0.91"

23mm x 23mm



Mounting Options

3x Side: Ø3-M4-Ø3-M4

1x Top (center): G1/8

1x Top: Ø3-M5-Ø3-M5



Material Thickness - mm (in)

0.5

1.0

2.0

3.0

(0.020)

(0.039)

(0.079)

(0.118)

Maximum Force 1 Without Friction Pad - Newton (N)

44

90

118

118

Maximum Force 1 With Friction Pad - Newton (N)

35

88

111

111

Required Air Pressure 3 Without Friction Pad - Bar (psi)

2.4

3.4

(50)

3.9

(57)

3.9

(57)

(35)

Required Air Pressure 3 With Friction Pad - Bar (psi)

2.4

3.4

(50)

3.9

(57)

3.9

(57)

(35)


  • 1 Determined in laboratory environment on 2” thick SAE1018 Steel with surface roughness 63 micro inches with optimized pole shoes. Many factors contribute to the actual breakaway force and safe working load in each application. Consult a Magswitch Applications Engineer and test the Magswitch in each application before deployment.

  • 2 Tested and Determined with Two SAE1018 Steel Sheets L=200mm W=200mm Thickness=1.5 mm.
  • 3 Values may vary by +/- 5%.
  • 4 Maximum forces listed above are not safe lifting forces. Designer must take into account safety factor when specifying tool. Magswitch recommends SWL = 5:1 for most applications.
