AR50 2.0 - 81401167

Write a review
$2,105.00 USD
$2,105.00 USD
Shipping calculated at checkout.
Quantity must be 1 or more

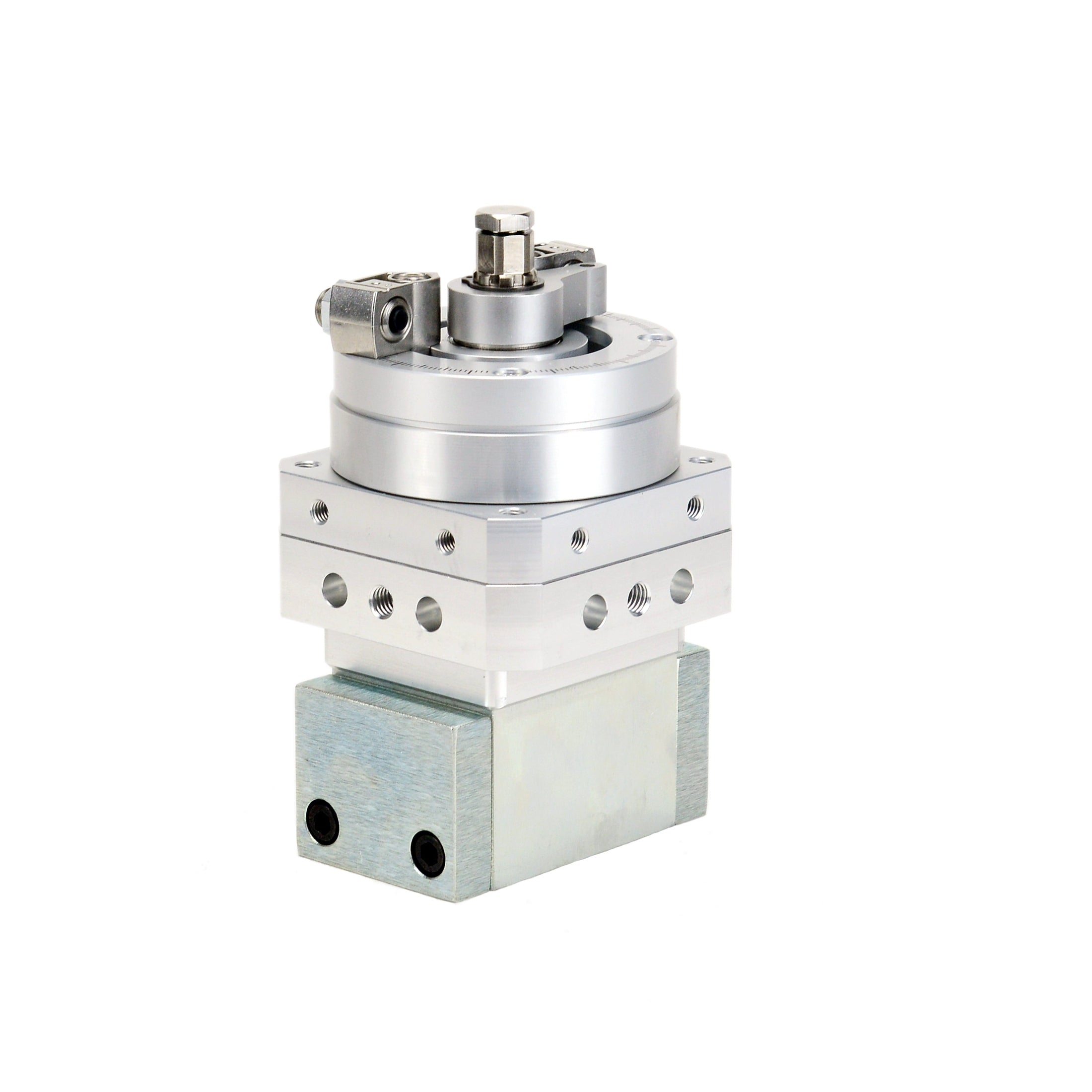

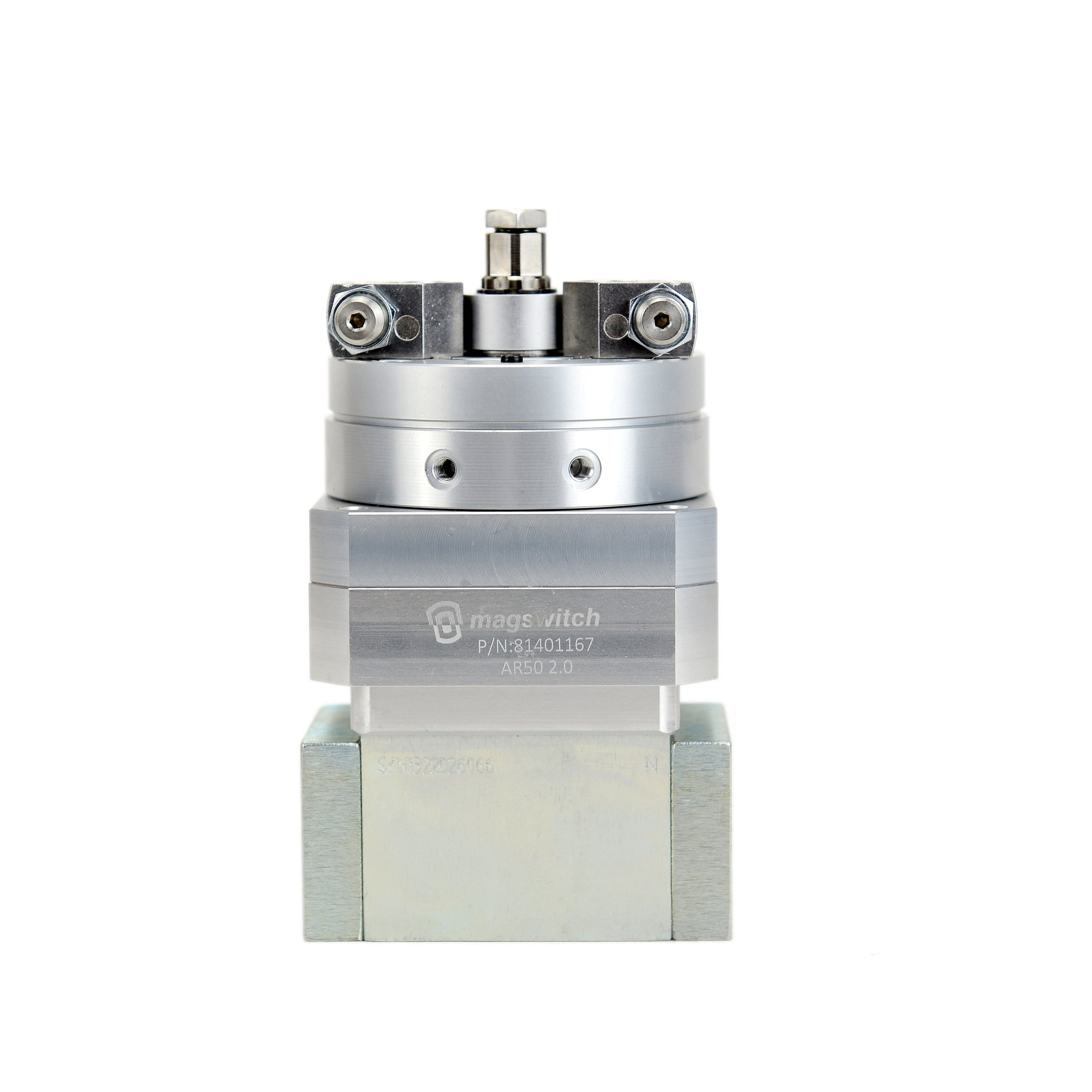

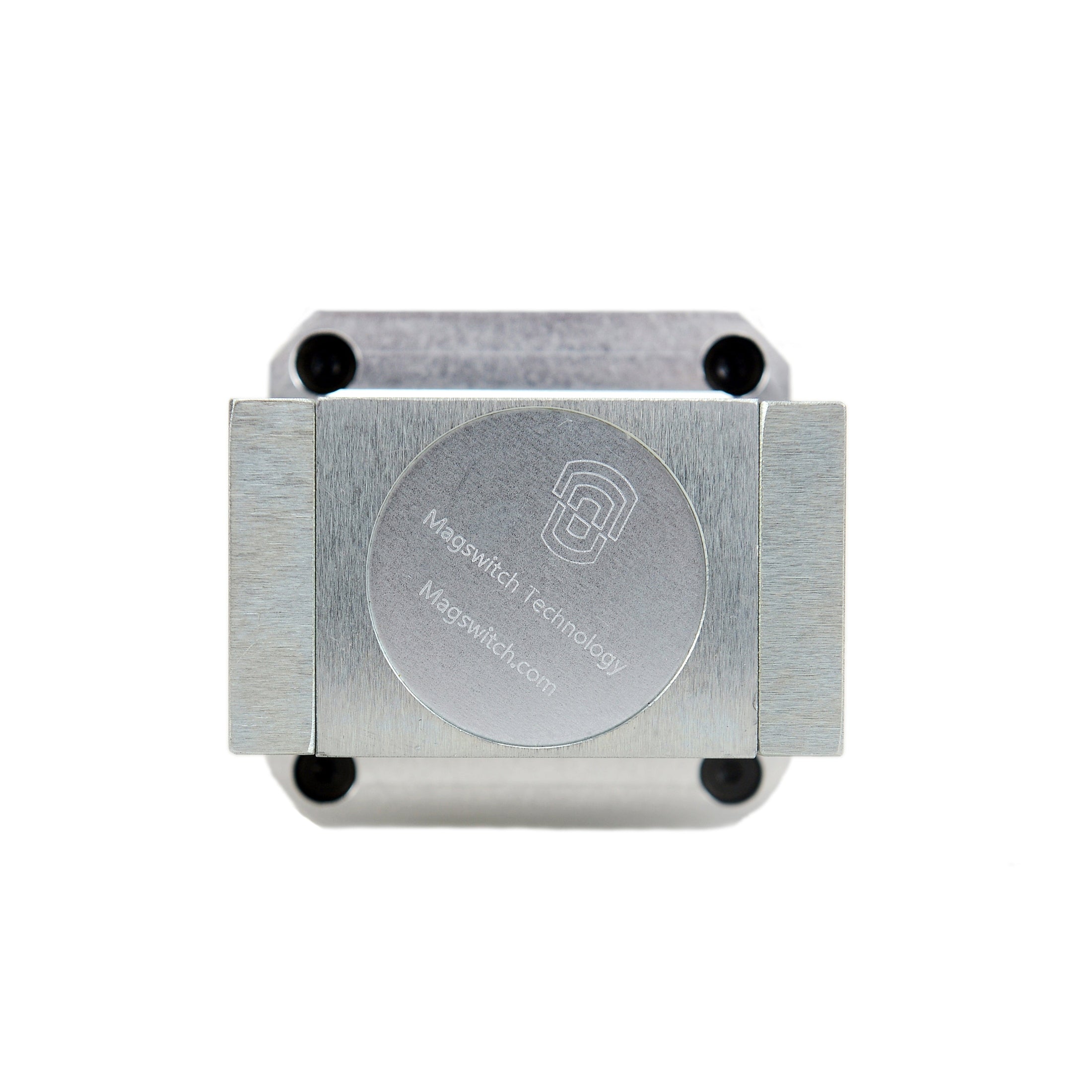

Magswitch AR50 2.0 is compact and powerful boasting cutting edge technology enhancements and precision mounting interfaces. These tools are great for fixtures, pin locating and thin part material handling. Additional custom pole shoe geometry allows for extreme flexibility in applications. This tool is a precision fit for your next project!

FEATURES & BENEFITS

  • Compact single magnet design
  • Manufactured to precision tolerances with symmetrical NAAMS mounting
  • Customizable contact surface
  • Maximum power to weight ratio
  • Saves energy – 90% less air
  • Fail-safe operation

Contact Magswitch engineers for help selecting and customizing an appropriate solution via applications@magswitch.com.

ACCESSORIES (Sold Separately)

Product SKU Product Description
8800797 SENSOR BRACKET, M8 PROX, FIT AR50 2.0/AR50 CLASSIC
8800881 AR50 2.0 COMBO FLAT/V PS KIT
88001012 AR50 Standard Pin Clamp Pole Shoe Kit
88001428 ARMOR KIT, AR50 2.0, BIN PICKING KIT
88001429 PSK, AR50 2.0, FLAT POLE SHOES, ARMOR READY
88001430 PSK, AR50 2.0, 135deg V-CUT, 2"-5" DIA. Range, ARMOR READY
88001431 PSK, AR50 2.0, 155deg V-CUT, 5"-10" DIA. Range, ARMOR READY

*Pole Shoes are required. Not Included with base tool.

SPECIFICATIONS

Maximum Breakaway Force 1,2 476 lb / 216kg
Maximum Shear 1,2 165 lb / 75 kg
Minimum Thickness for De-Stack 3 3/8 in / 9.5 mm
Maximum Allowable Pressure 90 psi / 6.2 Bar
Off Target Actuation Pressure 58 psi / 4.0 Bar
Net Weight 4.9 lb / 2.2 kg
Air Port Thread 2x M5 x 0.8
Mounting Options Side: 3x NAAMS Ø8-M8-Ø8
Magnetic Pole Footprint 64 x 52 mm
Material Thickness – mm (in) 0.5
(.019)		 1
(.039)		 2
(.078)		 3
(.118)		 4
(.157)		 5
(.196)		 6
(.236)		 7
(.28)		 9.5
(.37)		 12.7
(.5)
Maximum Force – kg (lbs) 13.2
(29.0)		 31.7
(70.0)		 58.2
(128)		 96.5
(213)		 122
(269)		 168
(370)		 184
(406)		 199
(438)		 215
(475)		 216
(476)
Required Air Pressure 4 – bar (psi) 4.0
(58)		 3.0
(44)		 2.6
(38)		 2.0
(29)		 1.8
(27)		 1.6
(24)		 1.6
(24)		 1.4
(21)		 1.4
(21)		 1.4
(21)
  • SWL (Safe Working Load) = Maximum Force5/ Safety Force (≥5)
  • 1Determined in laboratory environment on 2” thick SAE1018 Steel with surface roughness 63 micro inches with optimized pole shoes. Many factors contribute to the actual breakaway force and safe working load in each application. Consult a Magswitch Applications Engineer and test the Magswitch in each application before deployment.
  • 2All data applies to unit with flat pole shoes installed.
  • 3Determined with SAE1018 Steel L=200mm W=200mm.
  • 4Values may vary by +/- 5%.
  • 5Maximum forces listed above are not safe lifting forces. Designer must take into account safety factor when specifying tool. Magswitch recommends SWL = 5:1 for most applications.
