The MLAY1000x12 is also available in 600, 600×2, 600×4, 1000, 1000×2, 1000×3, 1000×4, and 1000×6

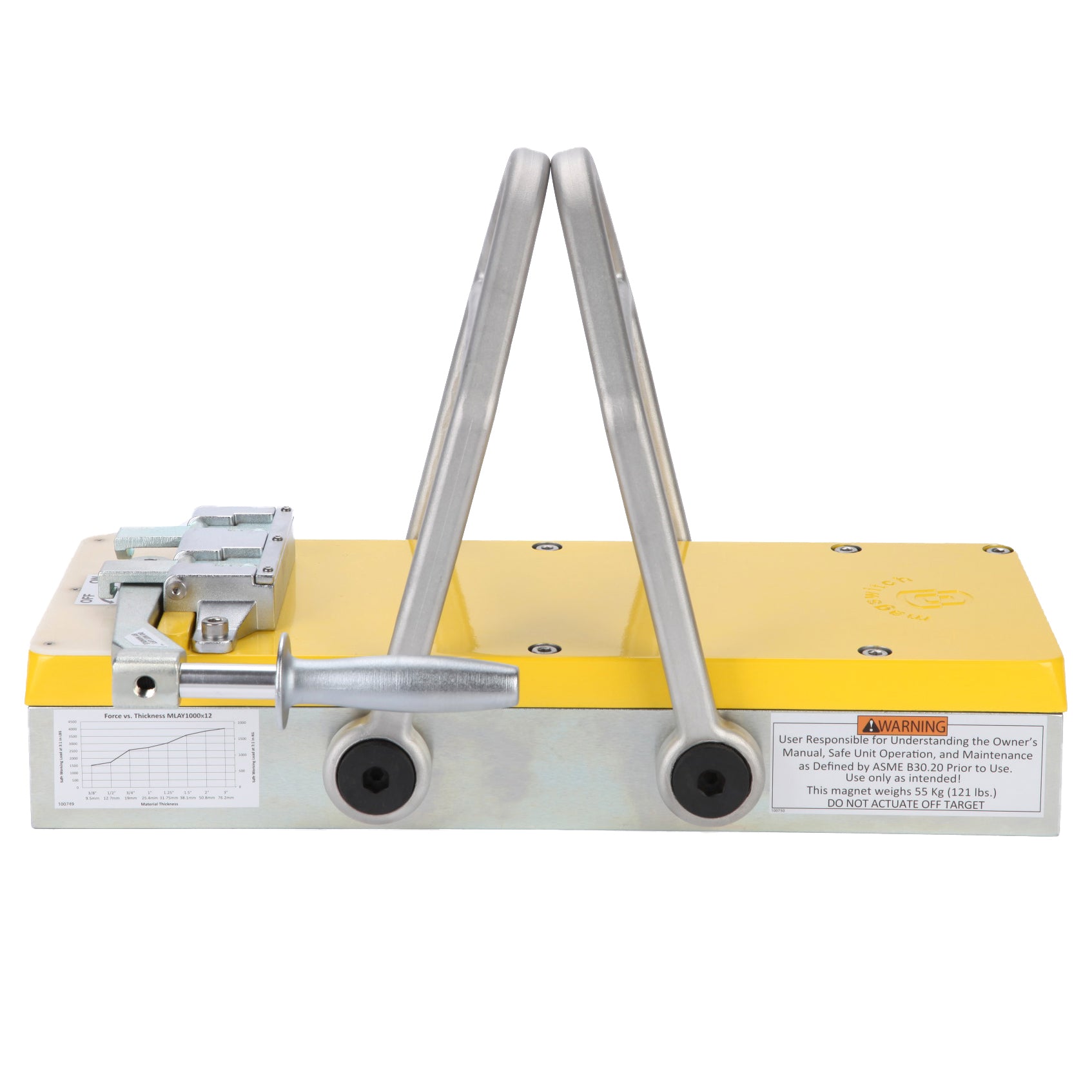

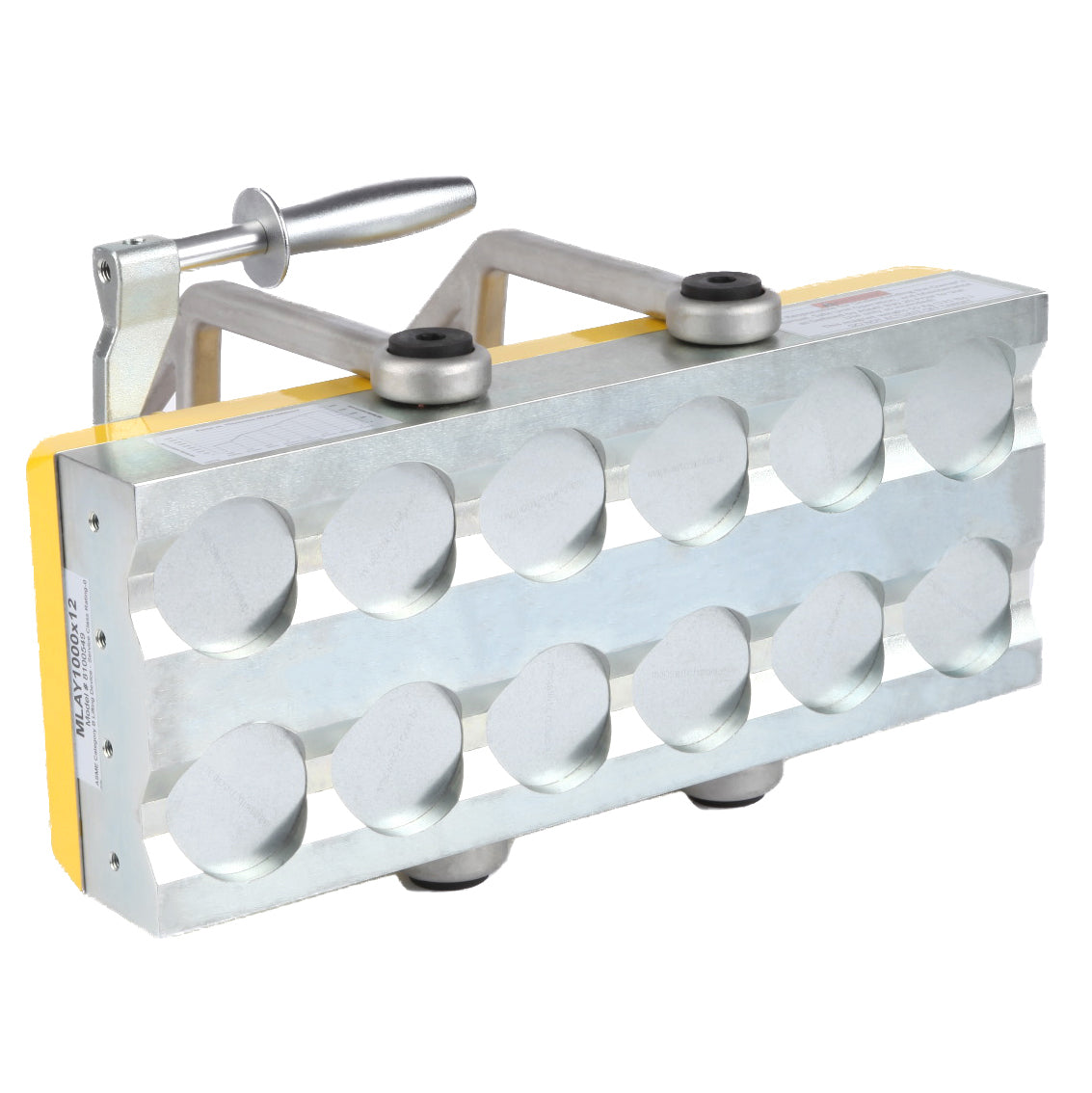

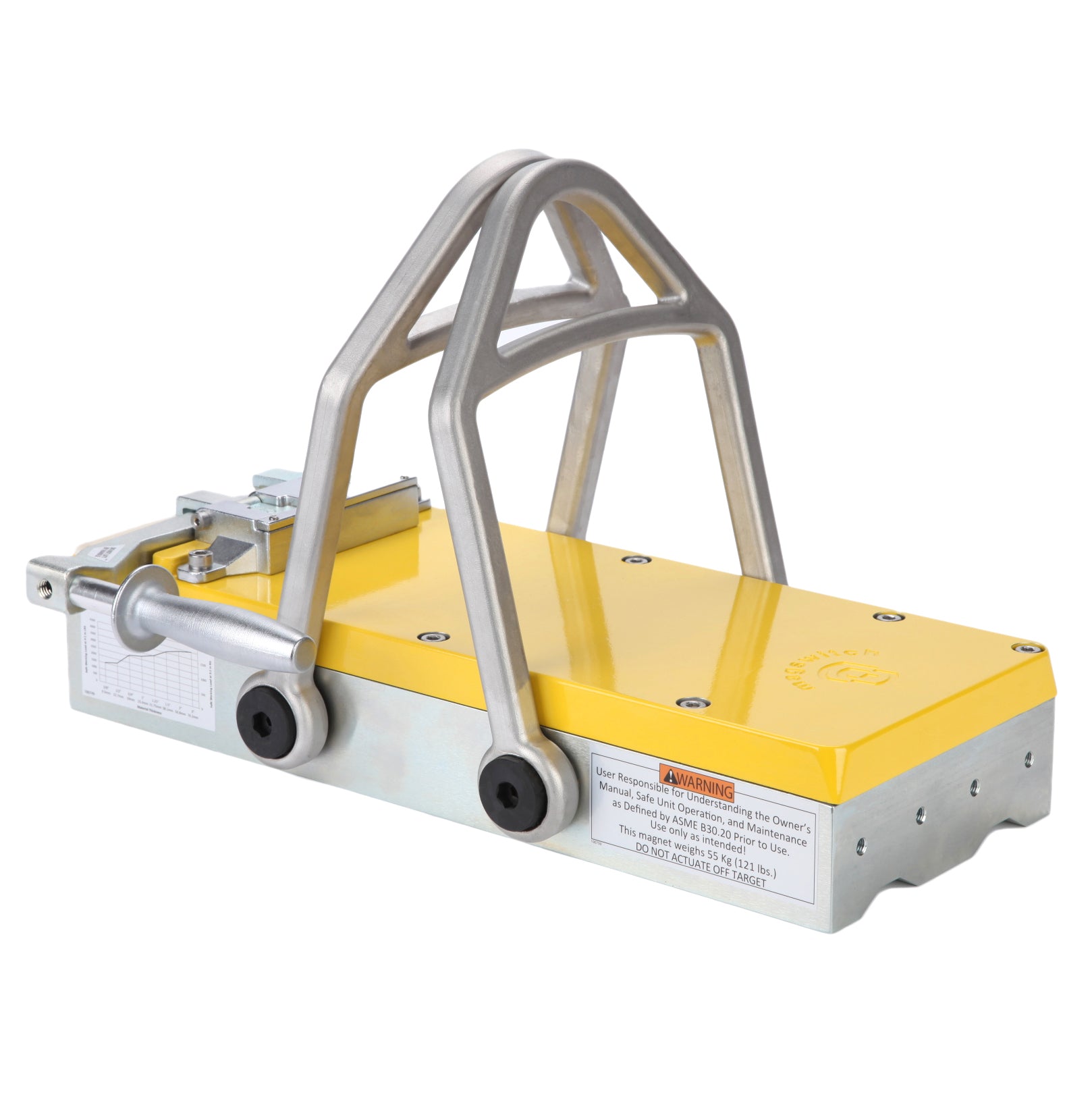

Magswitch MLAY 1000×12 Lifting Magnet – 8100549
The Magswitch MLAY1000x12 lifting magnet is built for heavy-duty lifting! Our magnet technology is powerful without the need for a power source. Safely lock in both the On and Off position with a safe working load of 4016 pounds. The dual lift hook offers the stability to lift horizontally and a single hook to lift into a vertical position.
Features
- Superior hold force on thin steel (maximum hold on 1.25″ plate).
- Compact, light weight and easy actuation.
- Use Dual Hook to stabilizes load and use Single Hook for lift to vertical.
- Lock ON/OFF handle.

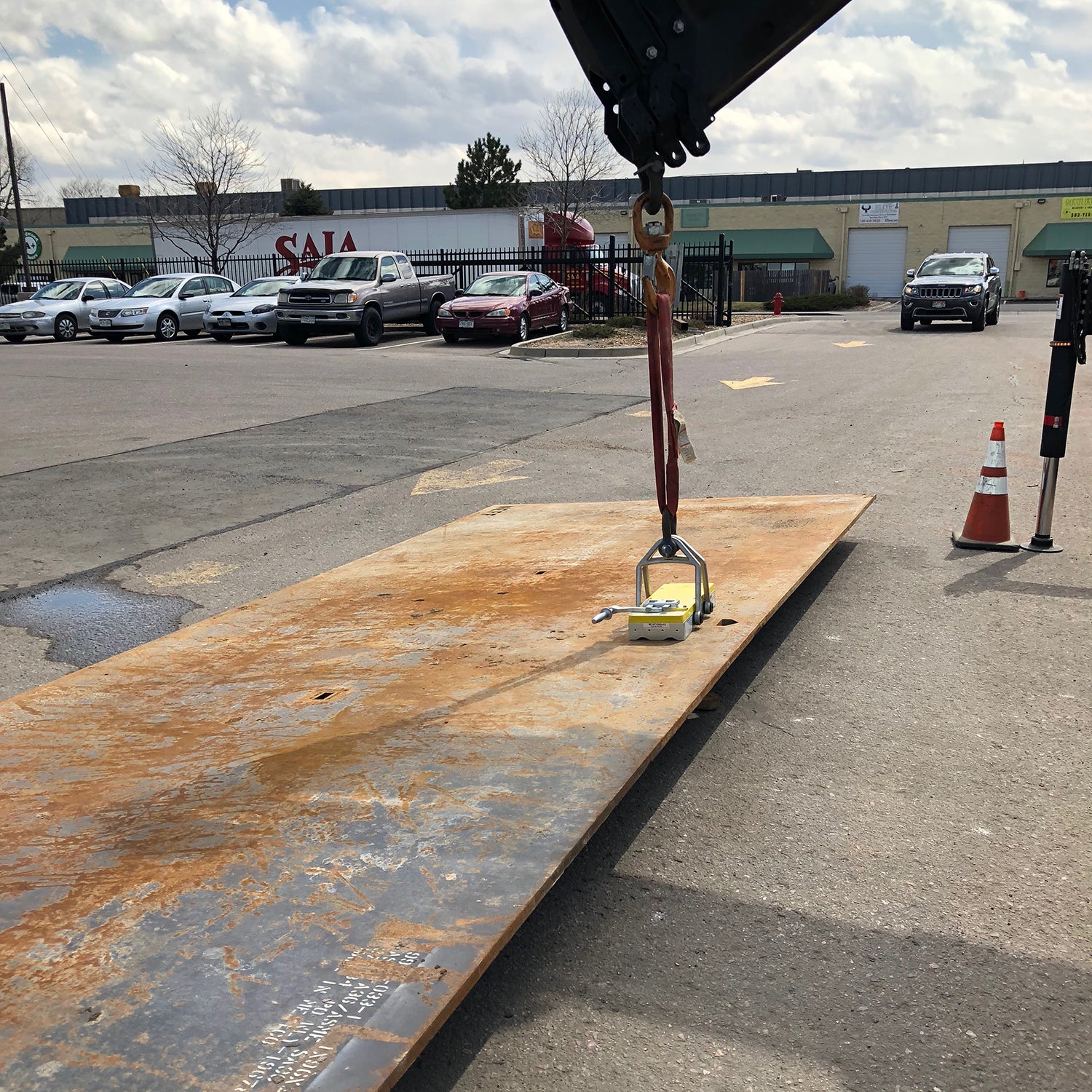

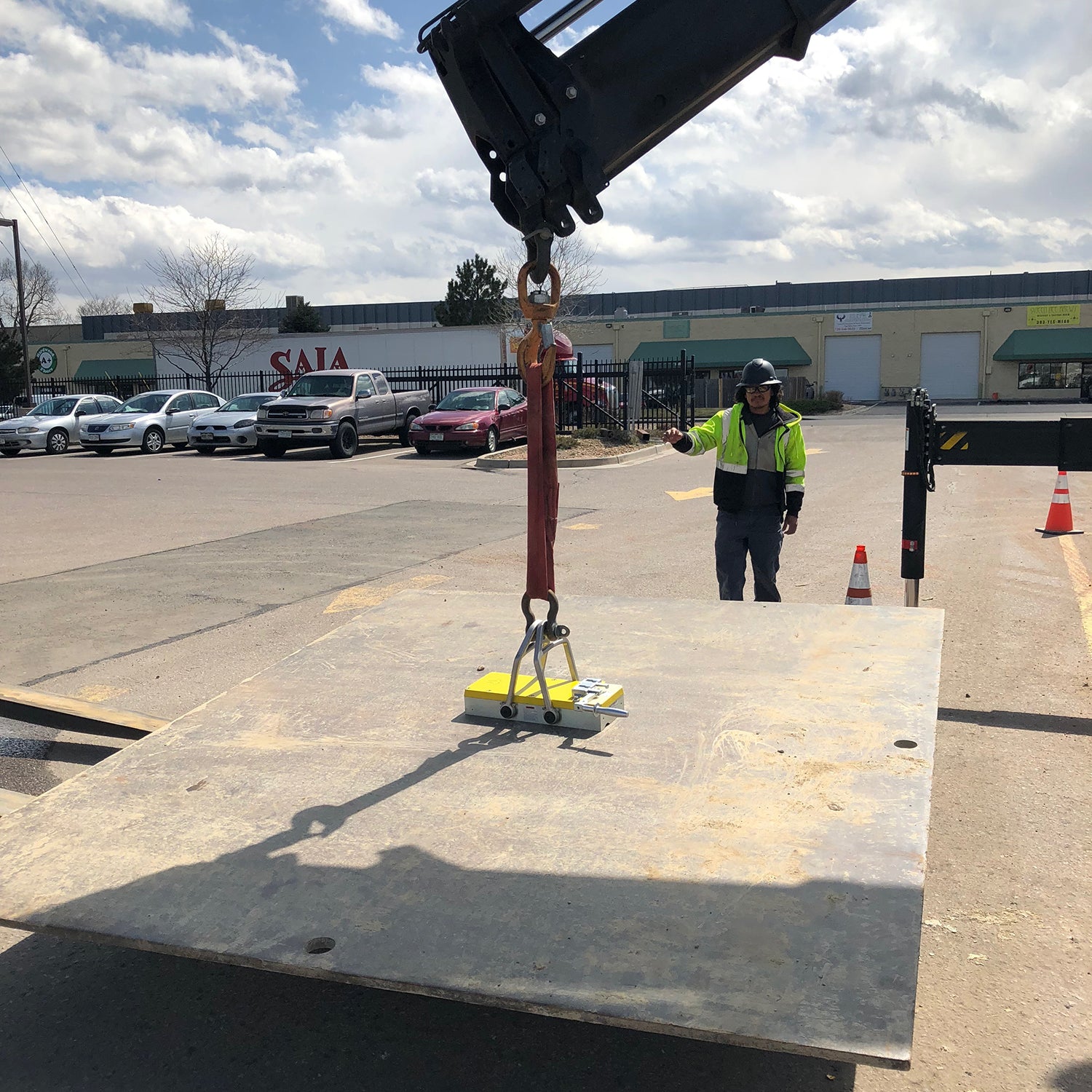

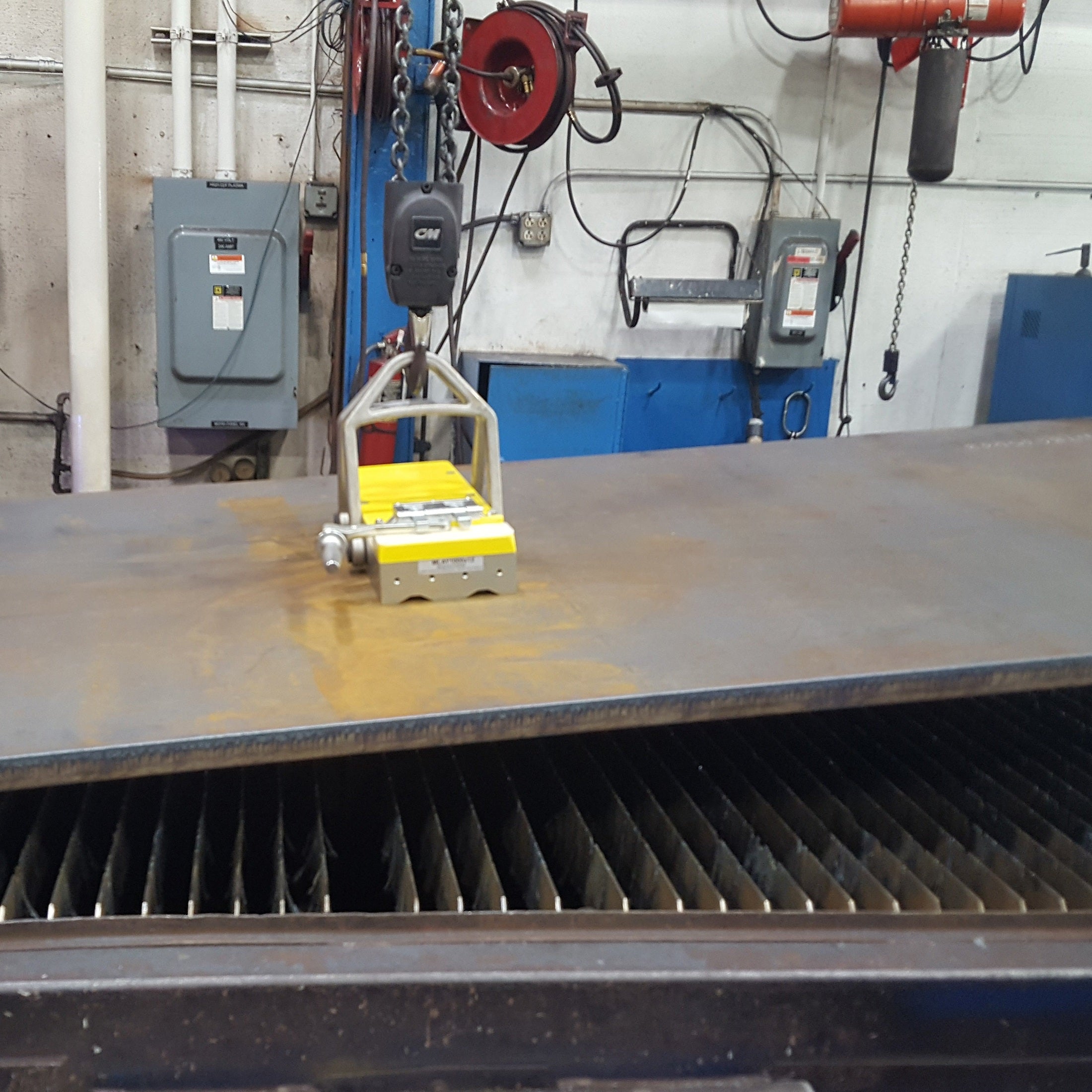

- Lifts large flat sheets.
- Outperforms other magnetic lifters on Thin Steel (You can buy a smaller less expensive Magswitch to match what you’re lifting).
- Superior performance in the presence of Air Gaps: such as rust, paint and uneven surfaces.
Specifications
- Max Breakaway: 12050 lbs/5477 kg
- Safe Working Load: 4016 lbs/1825 kg
- Full Saturation Thickness: 1.25” / 31.8mm
- Max Safe Shear: 1791 lbs/814 kg
- Minimum Thickness for De-Stack: 1.25” / 31.8mm
- Net Weight: 120 lbs/55 kg
- Mounting Thread: M20x2.5
- Overall Height: 301.8 mm
- Magnetic Pole Footprint: 492.75mm x 195.2mm
