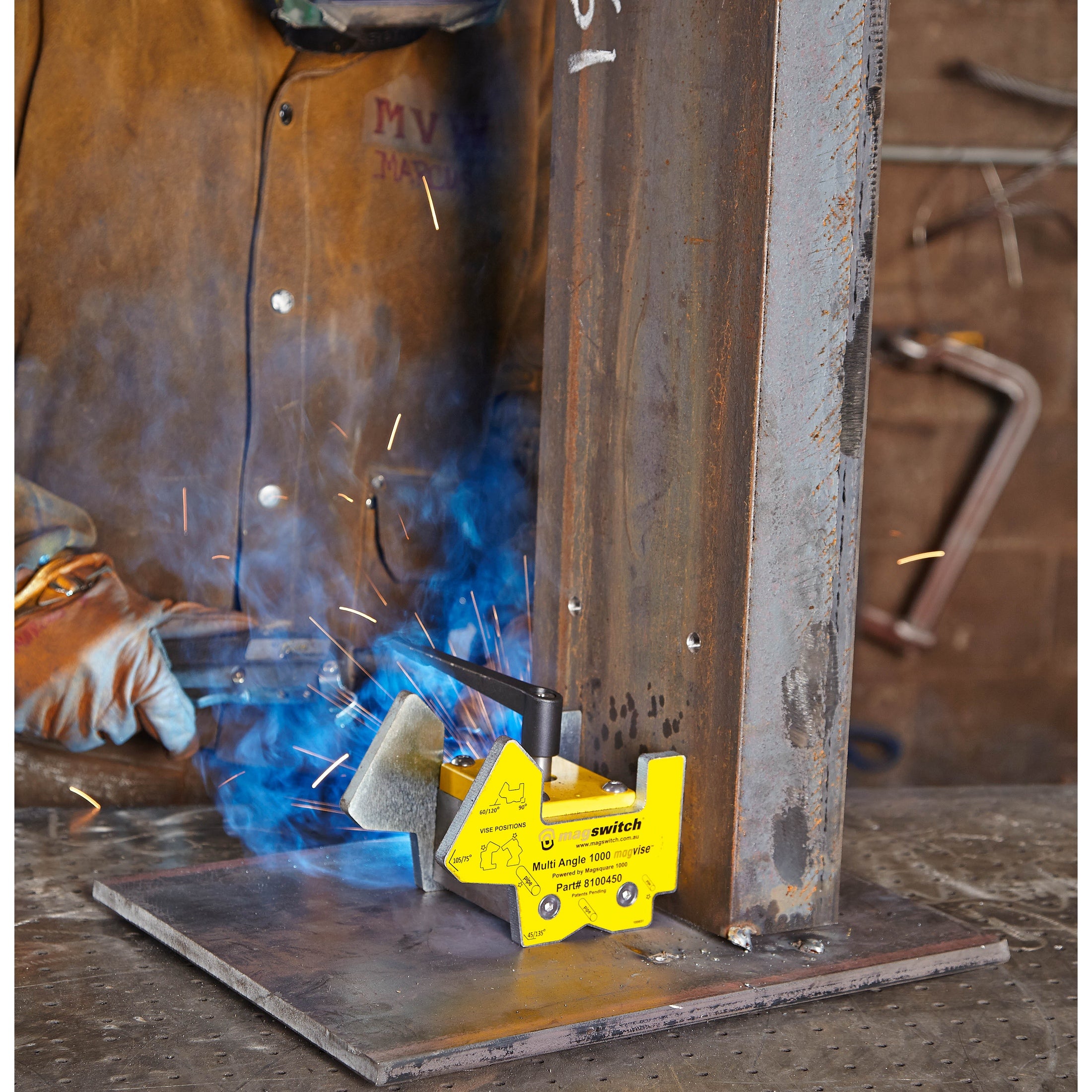

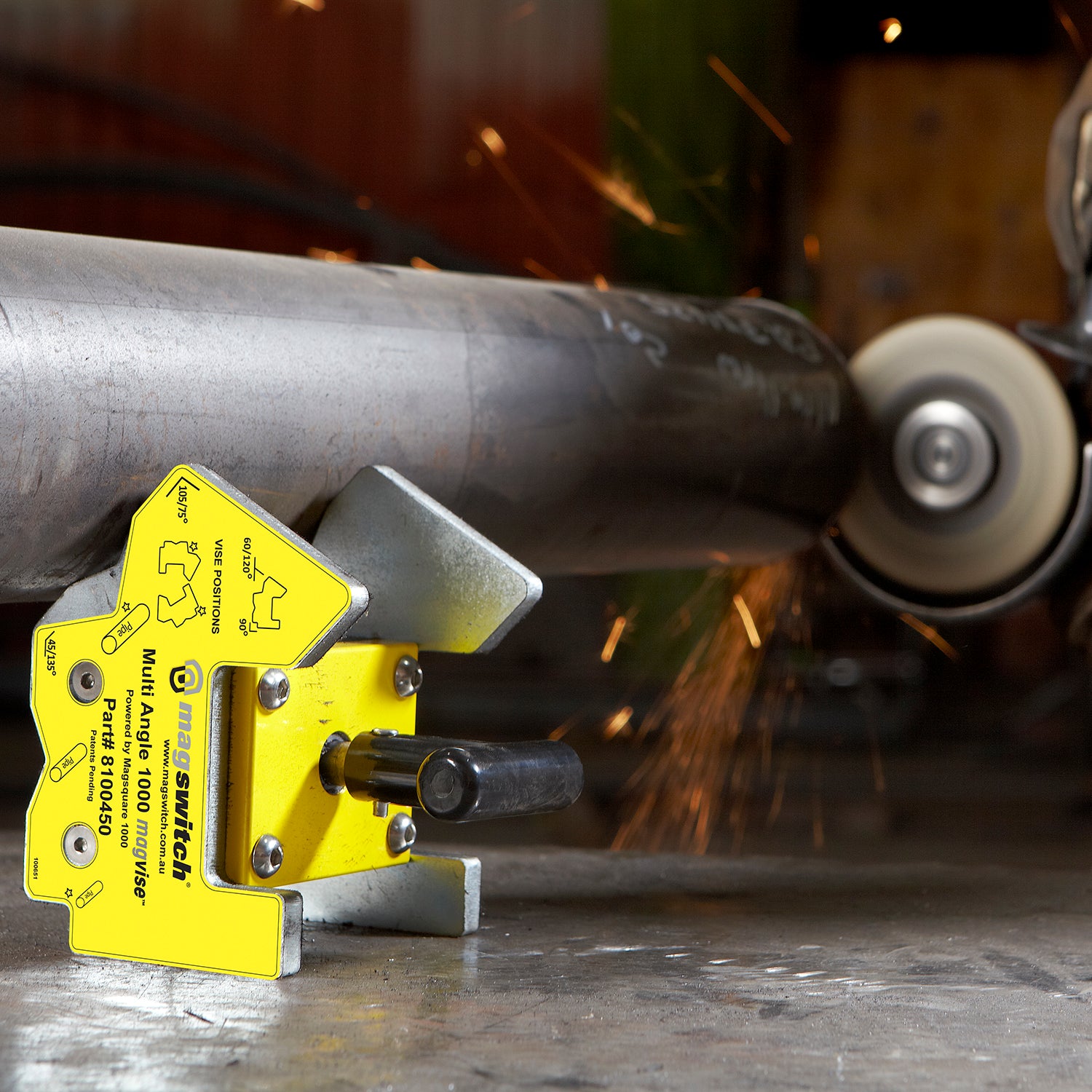

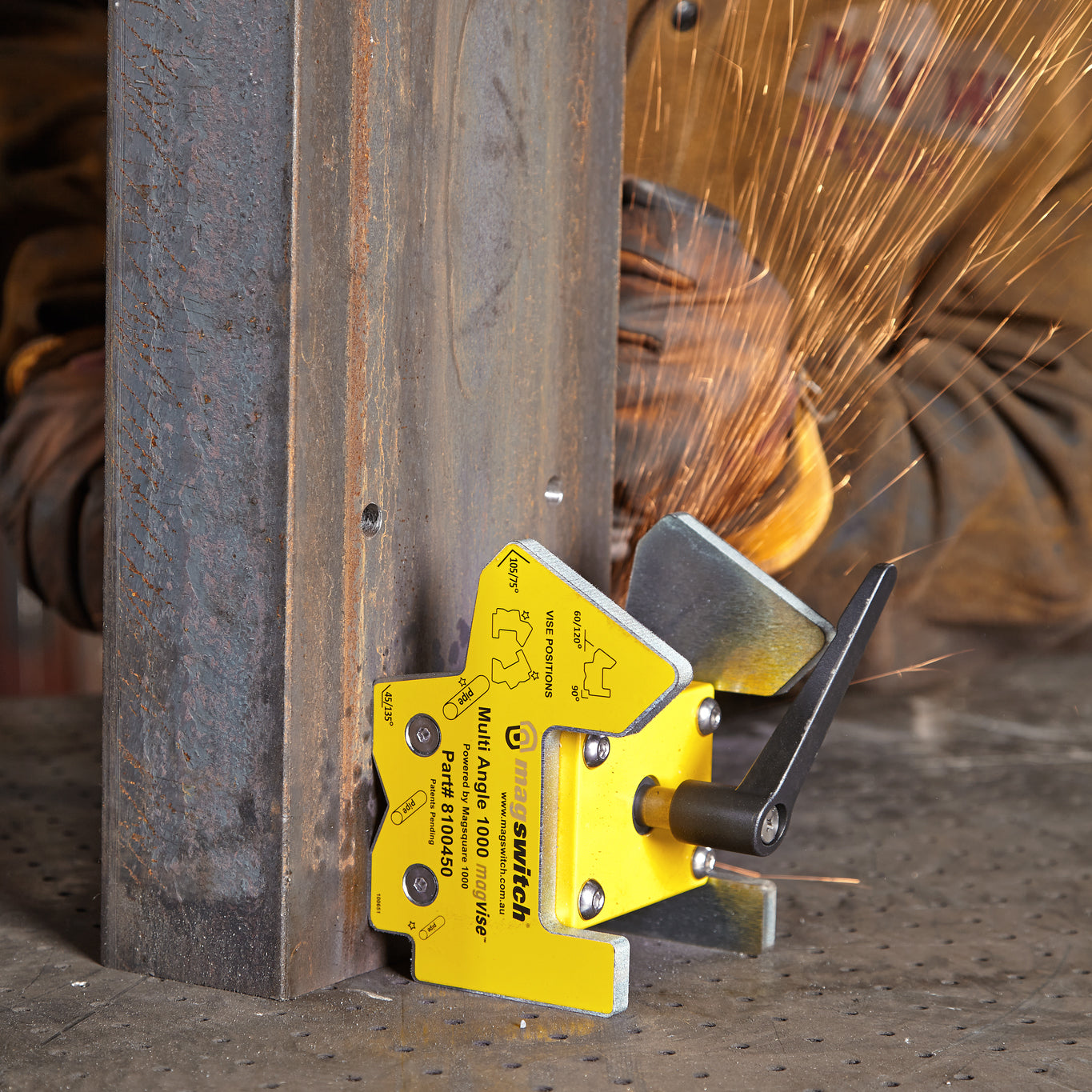

The vise that you don't have to bolt in place! Perfect for drilling, cutting, grinding and beveling small to medium size pieces. Switch on and off 413 pounds magnetic hold force by rotating the knob. When you're done, just carry it to where it's needed next.

FEATURES & BENEFITS

• Magnet turns completely on and off.

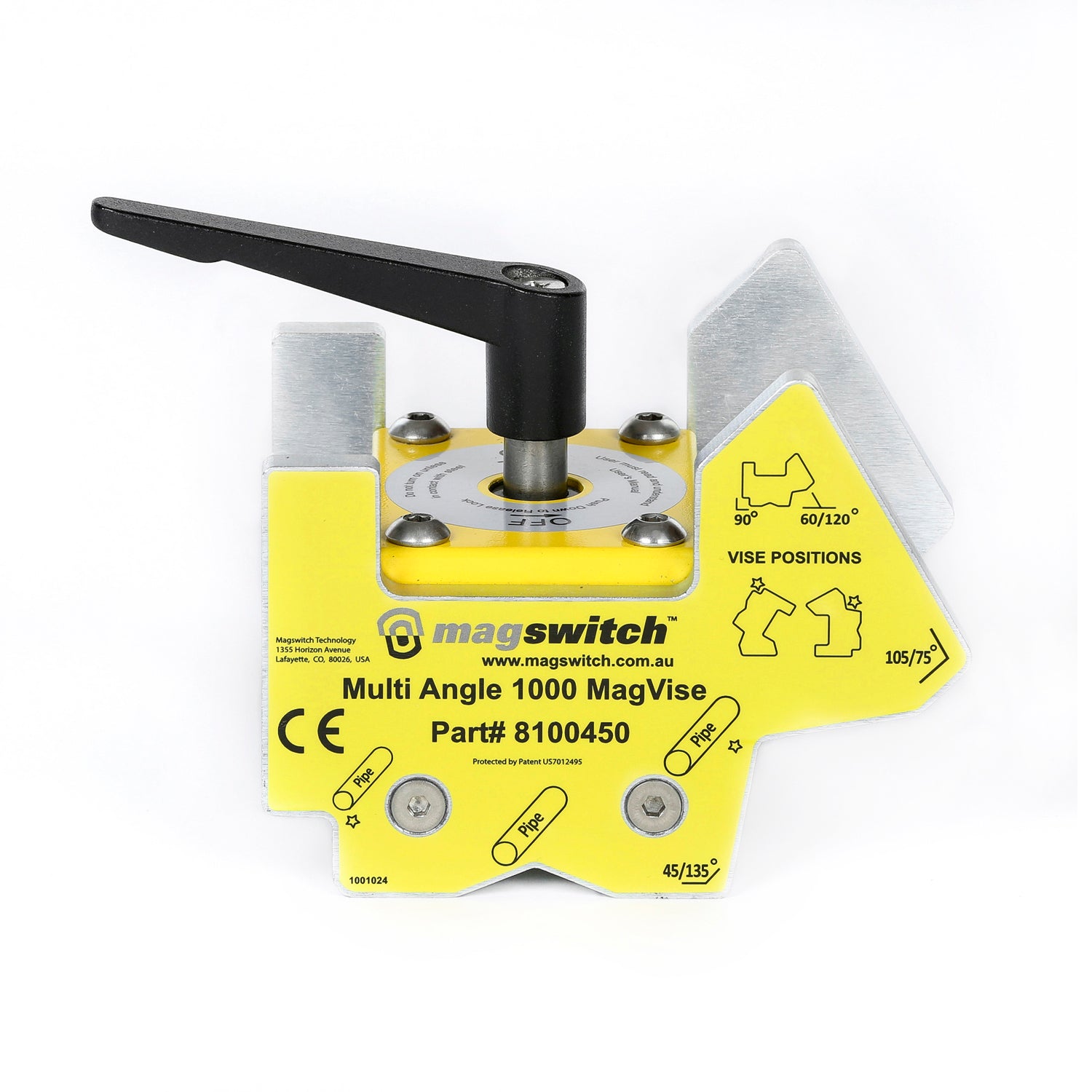

• Offers 45/135° + 60/120°+ 75/105° + 90° angles.
• Does not use an electrical power source.
• Magnet stays clean.
• Holds to flat and round surfaces of steel.
• Doubles as a multi-angle work holding tool.
• Vise options include round, angle stock, square bar or flat.

SPECIFICATIONS

• Max Breakaway: 413 lbs / 187.3 kg
• Full Saturation Thickness: 0.5 in / 13 mm
• 2:1 Shear Working Load: 74 lb / 33.5 kg
• Product Weight: 9.4 lbs / 4.2 kg
• Dimensions: 5.9 x 4.3 x 5.4 in / 149.8 x 109.2 x 137.1 mm
• Magnetic Pole Footprint: 72 mm x 108 mm

Downloads

MAGVISE 1000 Downloads:

• MagVise 1000 Spec Sheet
• MagVise 1000 STEP File

Magswitch Downloads:

• Welding & Fabrication Brochure
• Magswitch Manual Catalog
