Magswitch M30 2.0 Magnetic Gripper- 81401590

Magswitch M30 2.0 Magnetic Gripper- 81401590
Magswitch M30 2.0 Magnetic Gripper- 81401590
Magswitch M30 2.0 Magnetic Gripper- 81401590
Magswitch M30 2.0 Magnetic Gripper- 81401590

Magswitch M30 2.0 Magnetic Gripper- 81401590

Write a review
Regular price
Sold out
Sale price
$455.00 USD
Shipping calculated at checkout.
Quantity must be 1 or more

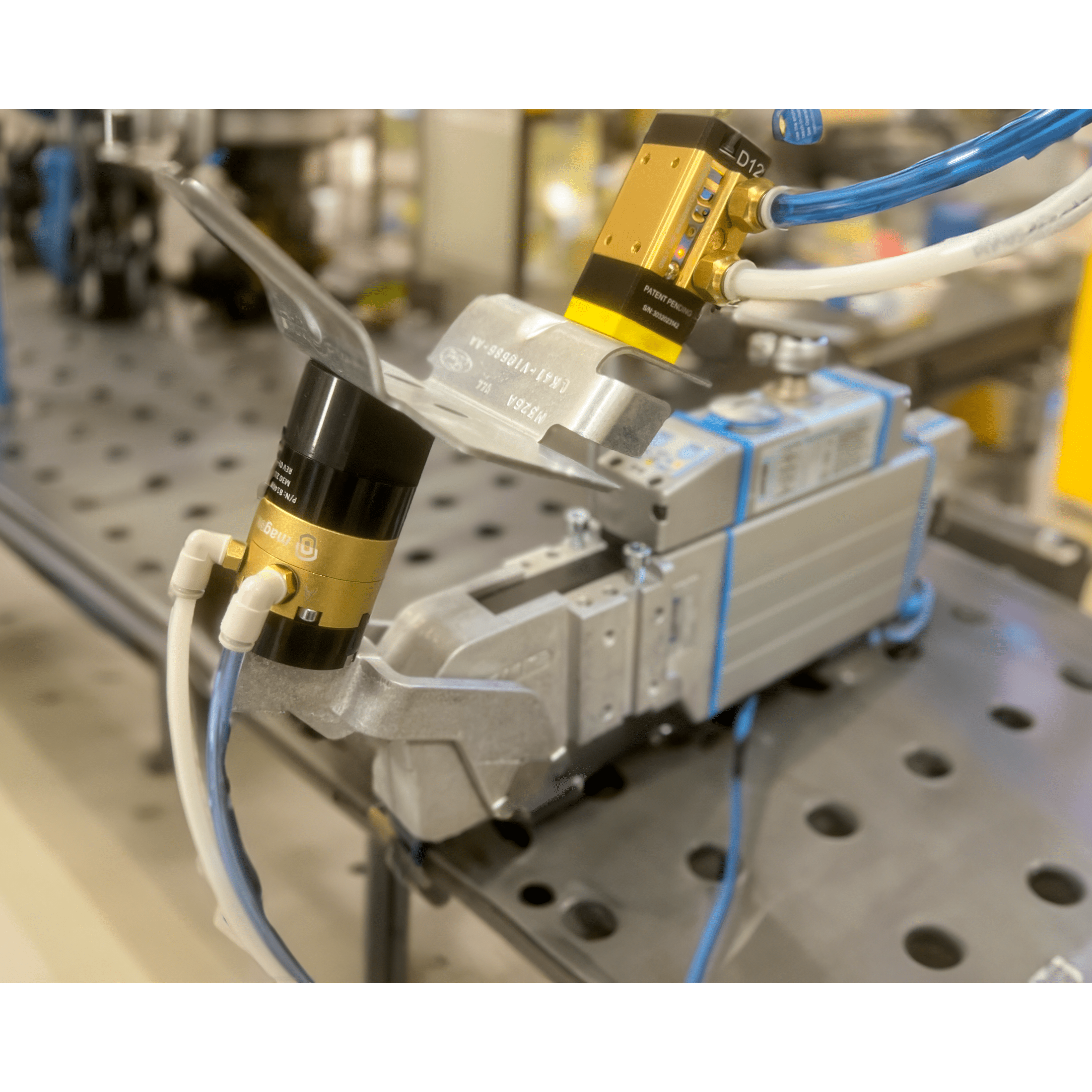

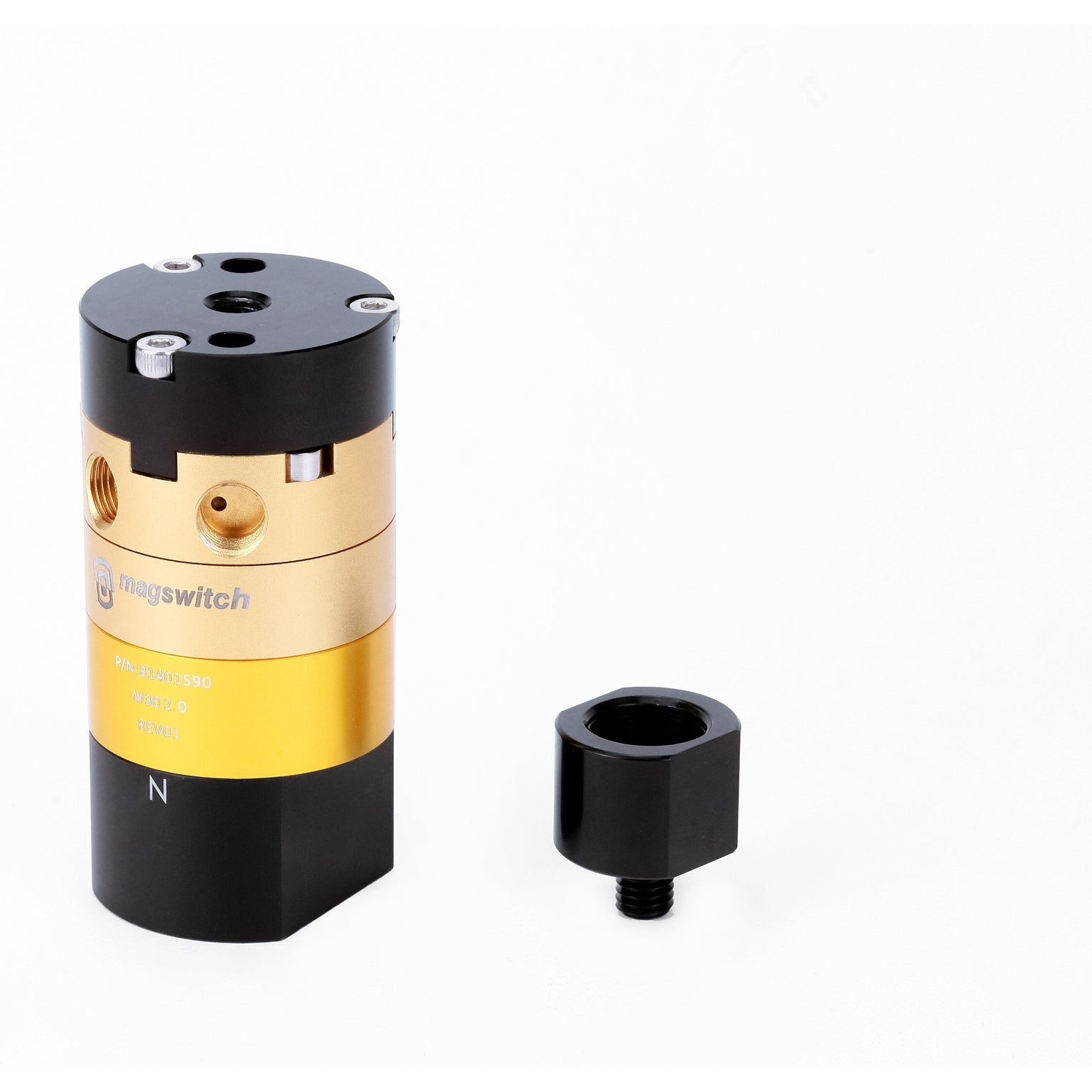

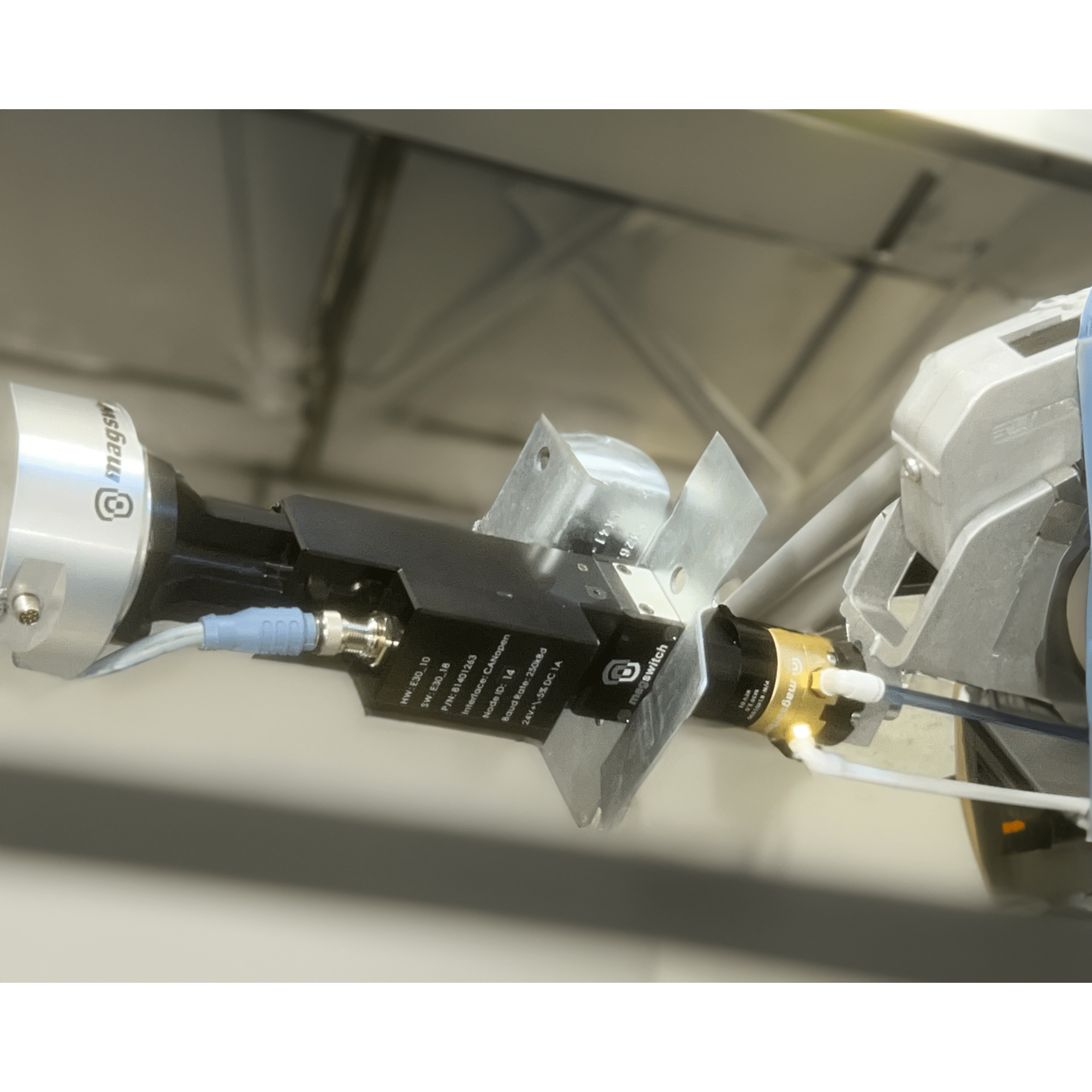

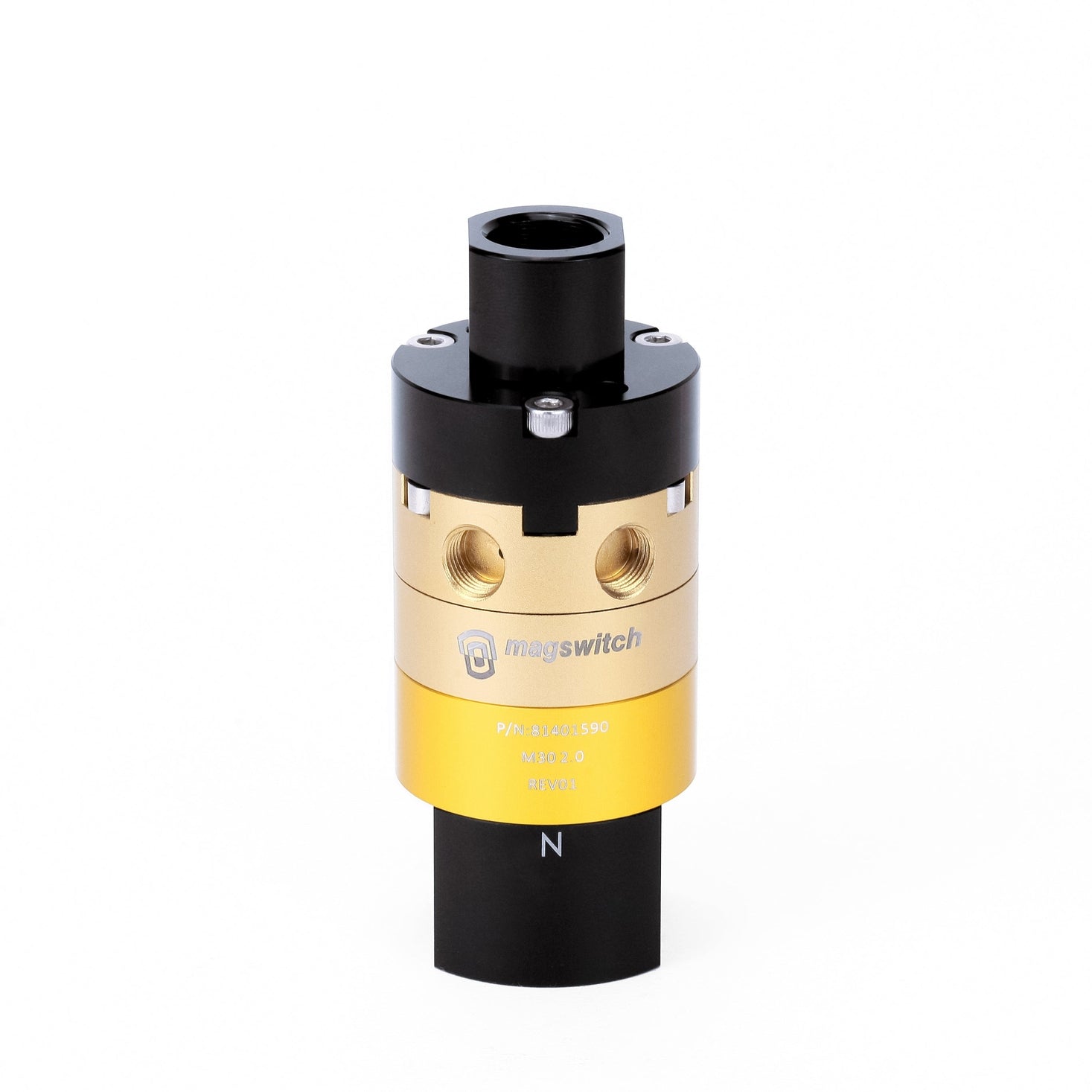

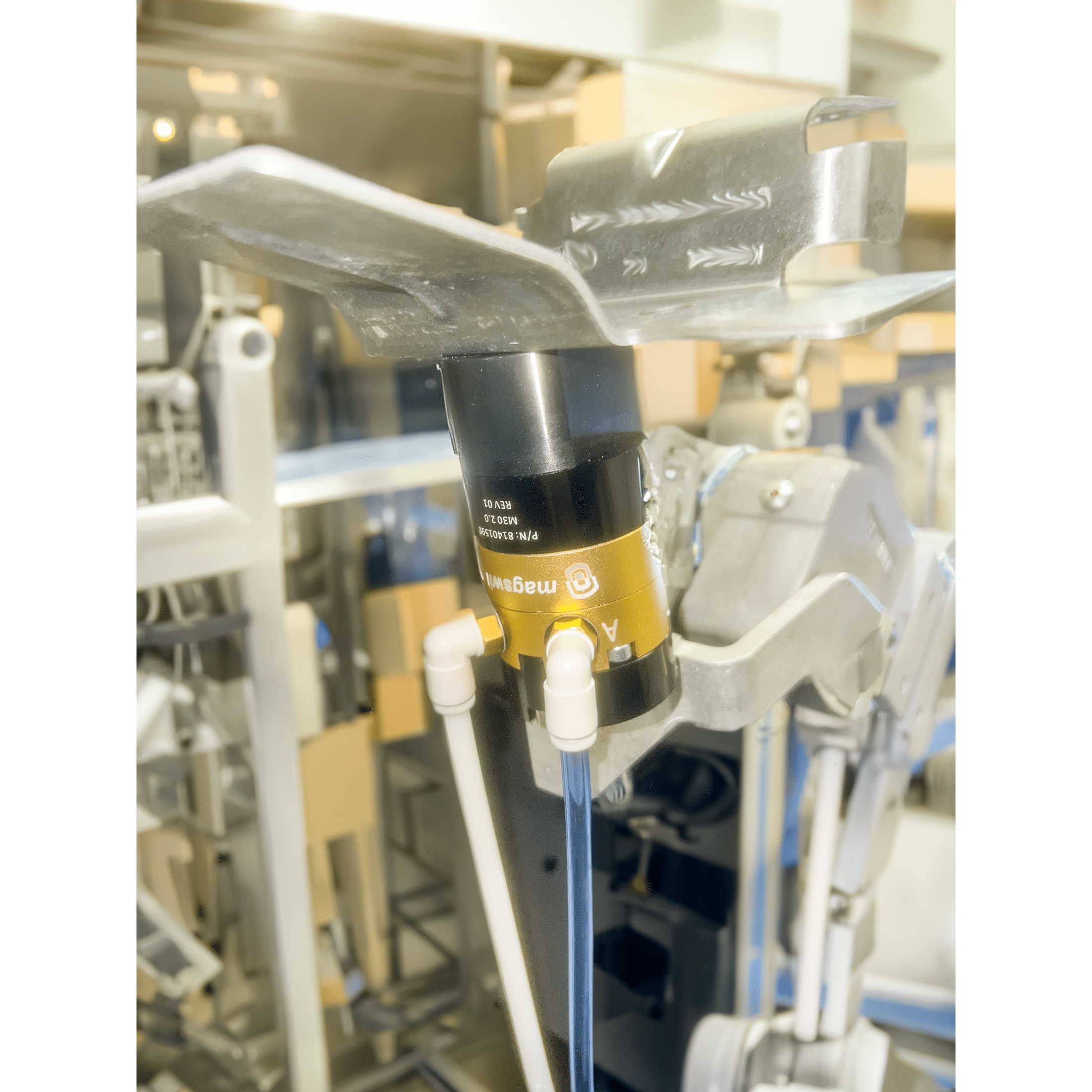

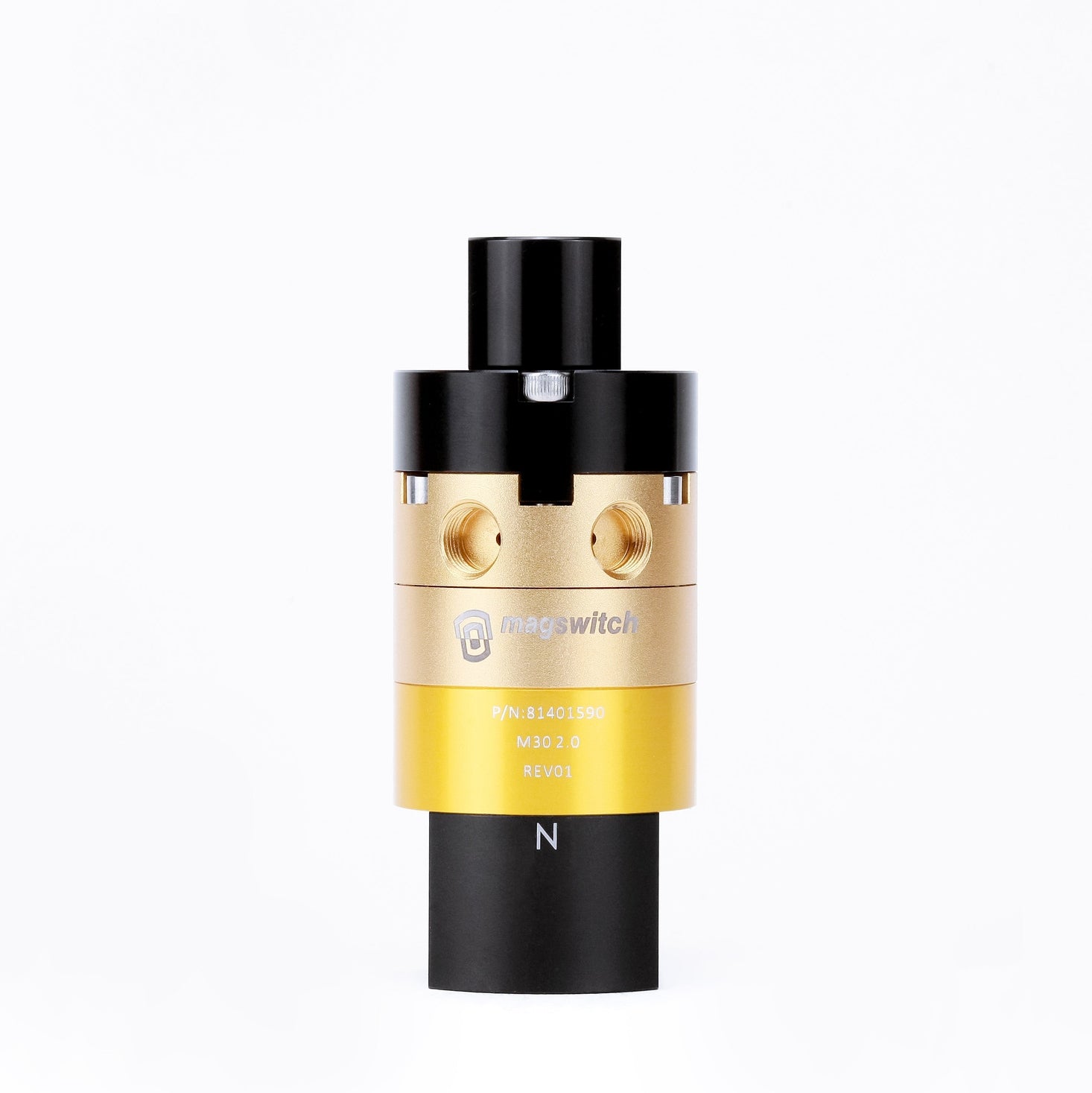

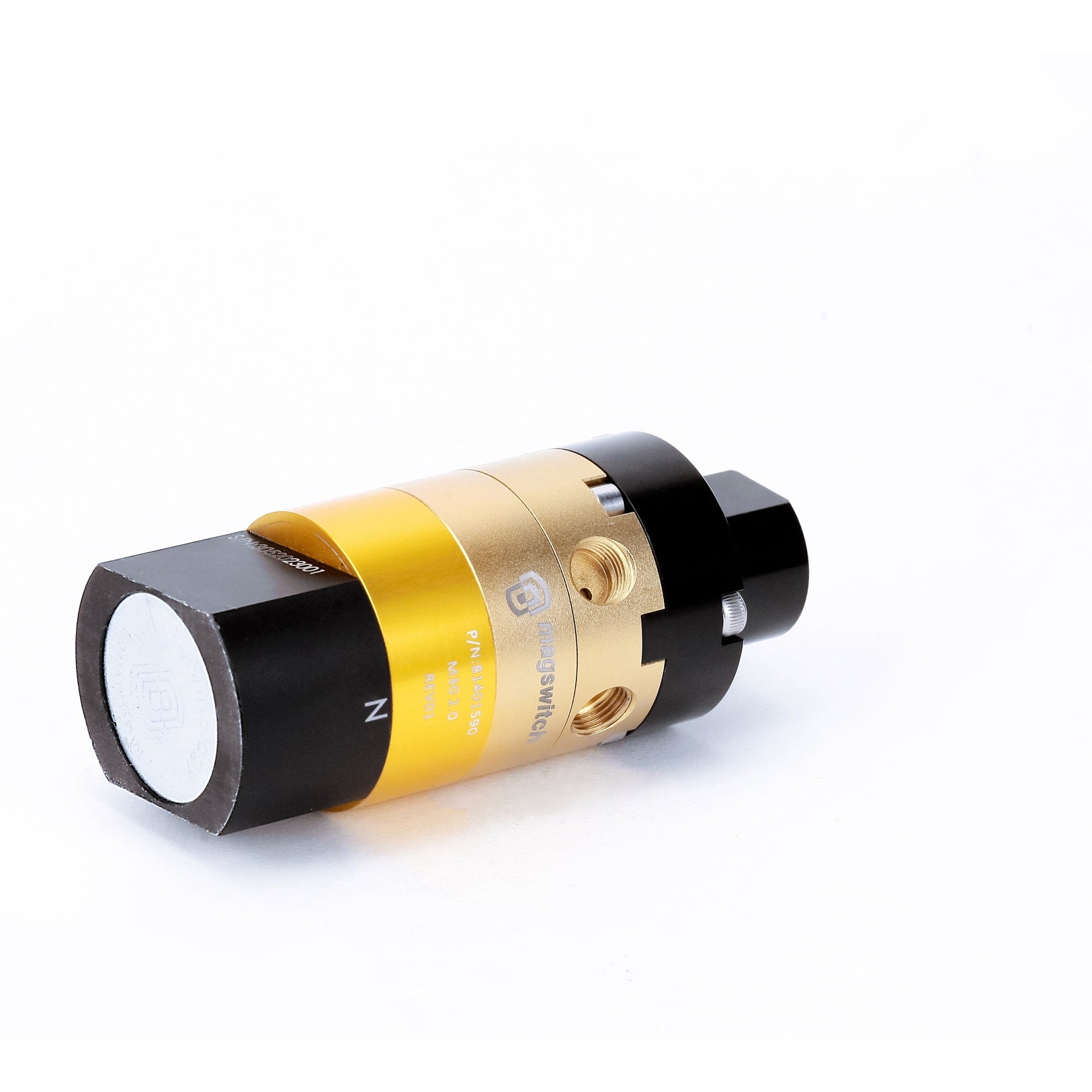

The M30 2.0 magnetic gripper brings back a classic design with several upgrades. This deep-field pneumatic magnet is compact and powerful boasting cutting-edge technology enhancements and NAAMS (and optional G-threaded) mounting interfaces. This automation magnet is great for industrial applications, Pick and Place, Robotic End of Arm Tools (EOAT) material handling, sheet metal handling, automation fixtures in Body-in-White (BIW), COBOT and other robotic process automation.

SPECIFICATIONS

Maximum Breakaway Force 1

729 N

Maximum Shear Force 1

157 N

Thickness for De-Stack2

0.157 in

4 mm

Maximum Allowable Pressure

145 psi

10.0 Bar

On Target Actuation Pressure

28 psi

1.9 Bar

Air Port Threads

2x G1/8

Net Weight

1.03 lb

0.47 kg

Individual Magnetic Pole Footprint

1.65" x 1.23"

42mm x 31.2mm



Mounting Options

1x Top (With 3/8 NPT Mounting Option): 3/8 - 18 NPT

1x Top (With NAAMS Mounting Option):

Ø6-M8-Ø6



Material Thickness - mm (in)

0.5

0.6

0.8

1.0

2.0

3.0

4.0

5.0

6.0

(0.020)

(0.024)

(0.031)

(0.039)

(0.079)

(0.118)

(0.157)

(0.197)

(0.236)

Maximum Force 1 - Newton (N)

71

83

129

219

437

645

710

729

729

Required Air Pressure 3 - Bar (psi)

4.1

3.8

(55)

3.4

(50)

3.1

(45)

2.2

(32)

1.9

(28)

1.9

(28)

1.9

(28)

1.9

(28)


  • 1 Determined in laboratory environment on 2” thick SAE1018 Steel with surface roughness 63 micro inches . Many factors contribute to the actual breakaway force and safe working load in each application. Consult a Magswitch Applications Engineer and test the Magswitch in each application before deployment.

    2 Tested and Determined with Two SAE1018 Steel Sheets L=200mm W=200mm Thickness=4 mm.

    3 Values may vary by +/- 5%.

    4 Maximum forces listed above are not safe lifting forces. Designer must take into account safety factor when specifying tool. Magswitch recommends SWL = 5:1 for most applications.
