Magswitch AR70 Classic - 8140320

Magswitch AR70 Classic - 8140320 - Mag-Tools

Magswitch AR70 Classic - 8140320

Write a review
$2,632.00 USD
$2,632.00 USD
Shipping calculated at checkout.
Quantity must be 1 or more

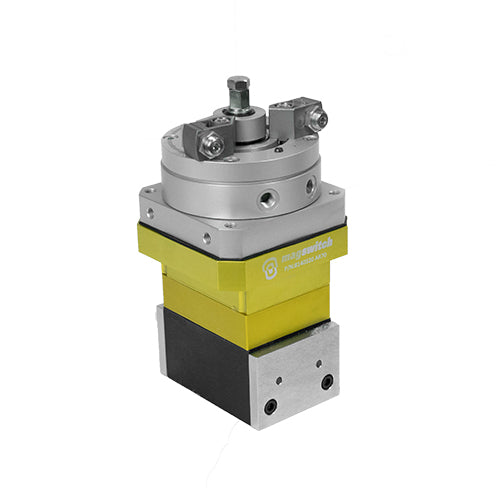

Magswitch AR70 Classic delivers a high power to weight ratio to handle material applications of any magnitude. As one of our most versatile grippers, its built to be customizable. Contact our engineers to customize the design and to fabricate custom pole shoes for your application at applications@magswitch.com.

FEATURES & BENEFITS

  • Compact single magnet design
  • Maximum power to weight ratio
  • Saves energy - 90% less air
  • Classic mounting is the most compact range
  • Customizable contact surface
  • Fail-safe operation

ACCESSORIES (Sold Separately)

Product SKU Product Name
8800072 Kit AR70 Combo Flat/Pipe Poles Standard
8800493 AR70 Standard Pin Clamp Pole Shoe Kit
8800797 SENSOR BRACKET, M8 PROX, AR70 CLASSIC
88001415 ARMOR KIT, AR70, Bin Picking Kit
88001416 PSK, AR70, FLAT, ARMOR READY
88001417 PSK, AR70, 135deg V-CUT, 2"-5" DIA. Range, ARMOR READY
88001418 PSK, AR70, 155deg V-CUT, 5"-10" DIA. Range, ARMOR READY

*Pole Shoes are required. Not Included with base tool.

SPECIFICATIONS

Max Breakaway* 960lbs / 435.4kg
Safe Working Load* 240lbs / 109.1kg
Full Saturation Thickness 1/2” / 12.7mm
Max Safe Shear* 125lbs / 56.7kg
Minimum Thickness for De-Stack 1/2″ / 12.7mm
Min Actuation Pressure 30psi / 2.1×105pa
Max Actuation Pressure 145 psi / 1.0×106 pa
Net Weight 10.6lbs / 4.8kg
Air Port Thread G1/8
Mounting Thread M8 x 1.25
Overall Height 210.2mm
Magnetic Pole Footprint 92 x 72.3mm

* Max Breakaway determined in laboratory environment on 2” thick SAE1018 Steel with surface roughness 63 micro inches. Many factors contribute to the actual breakaway force in each application. Always test the magswitch in each application before deployment. Refer to the magswitch information booklet for more information.

  • SWL (Safe Working Load) = Maximum Force5/ Safety Force (≥5)
  • 1Determined in laboratory environment on 2” thick SAE1018 Steel with surface roughness 63 micro inches with optimized pole shoes. Many factors contribute to the actual breakaway force and safe working load in each application. Consult a Magswitch Applications Engineer and test the Magswitch in each application before deployment.
  • 2All data applies to unit with flat pole shoes installed.
  • 3Determined with SAE1018 Steel L=200mm W=200mm.
  • 4Values may vary by +/- 5%.
  • 5Maximum forces listed above are not safe lifting forces. Designer must take into account safety factor when specifying tool. Magswitch recommends SWL = 5:1 for most applications.
