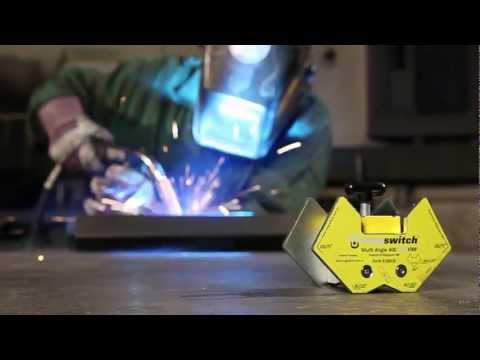

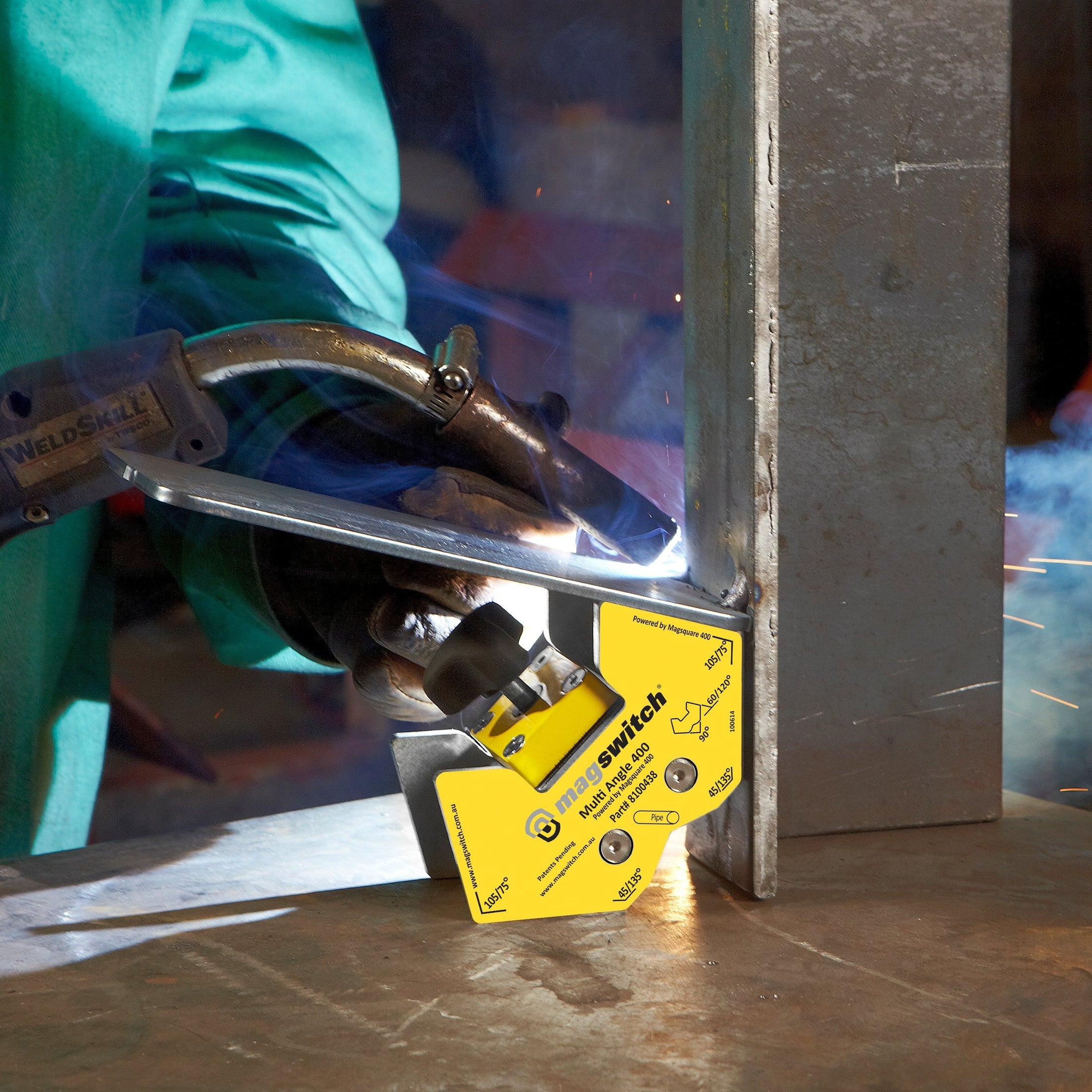

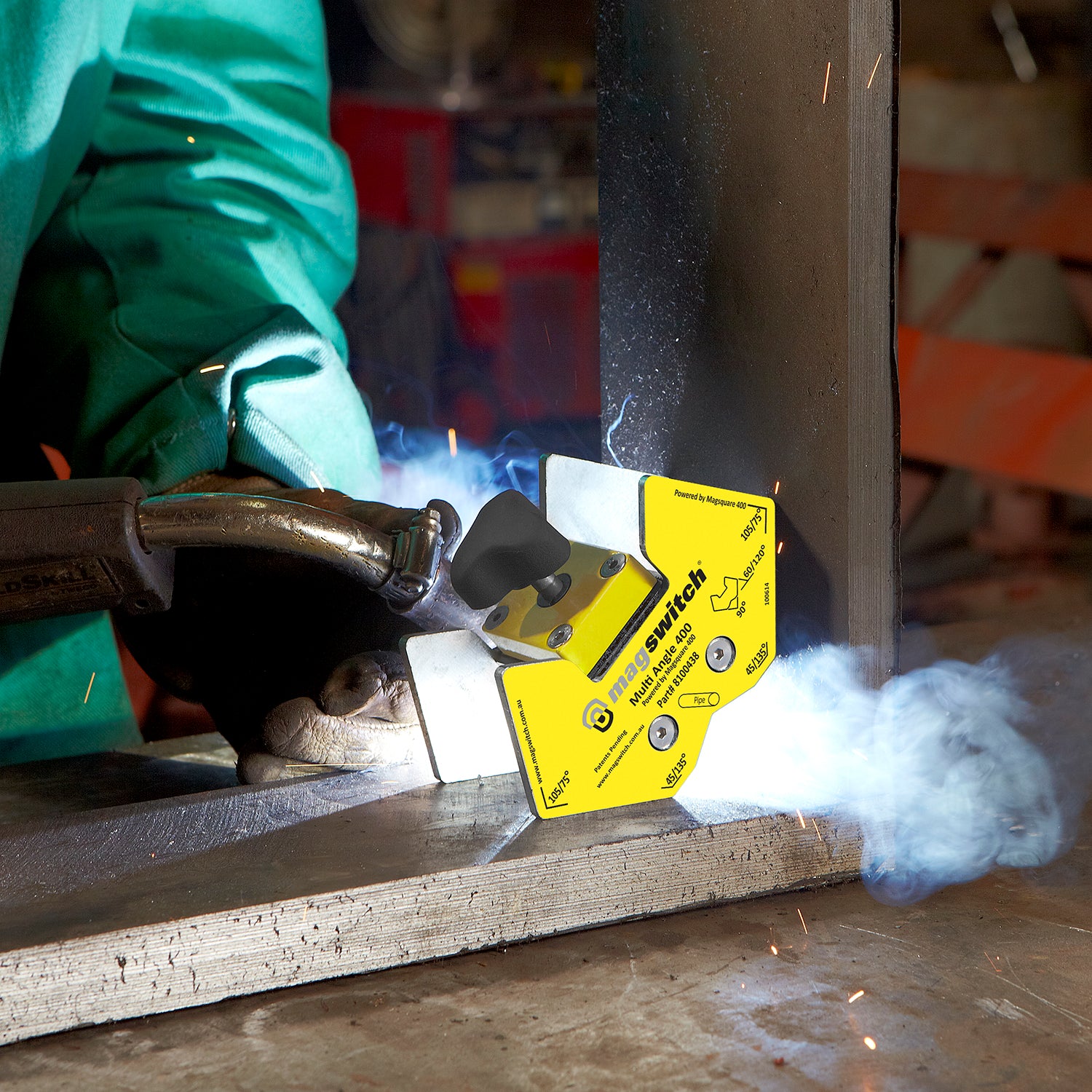

The Magswitch magnetic workholding tool with multiple angles in one! Offers 45/135°, 60/120°, 75/105°, and 90° angles. Switch on and off 205 pounds of magnetic holding force.

FEATURES & BENEFITS

• Magnetic field turns completely on and off mechanically.
• Magnet stays clean.
• Does not use an electrical power source.
• Holds flat and round surfaces of steel.
• Accommodates flat sheets and pipes.

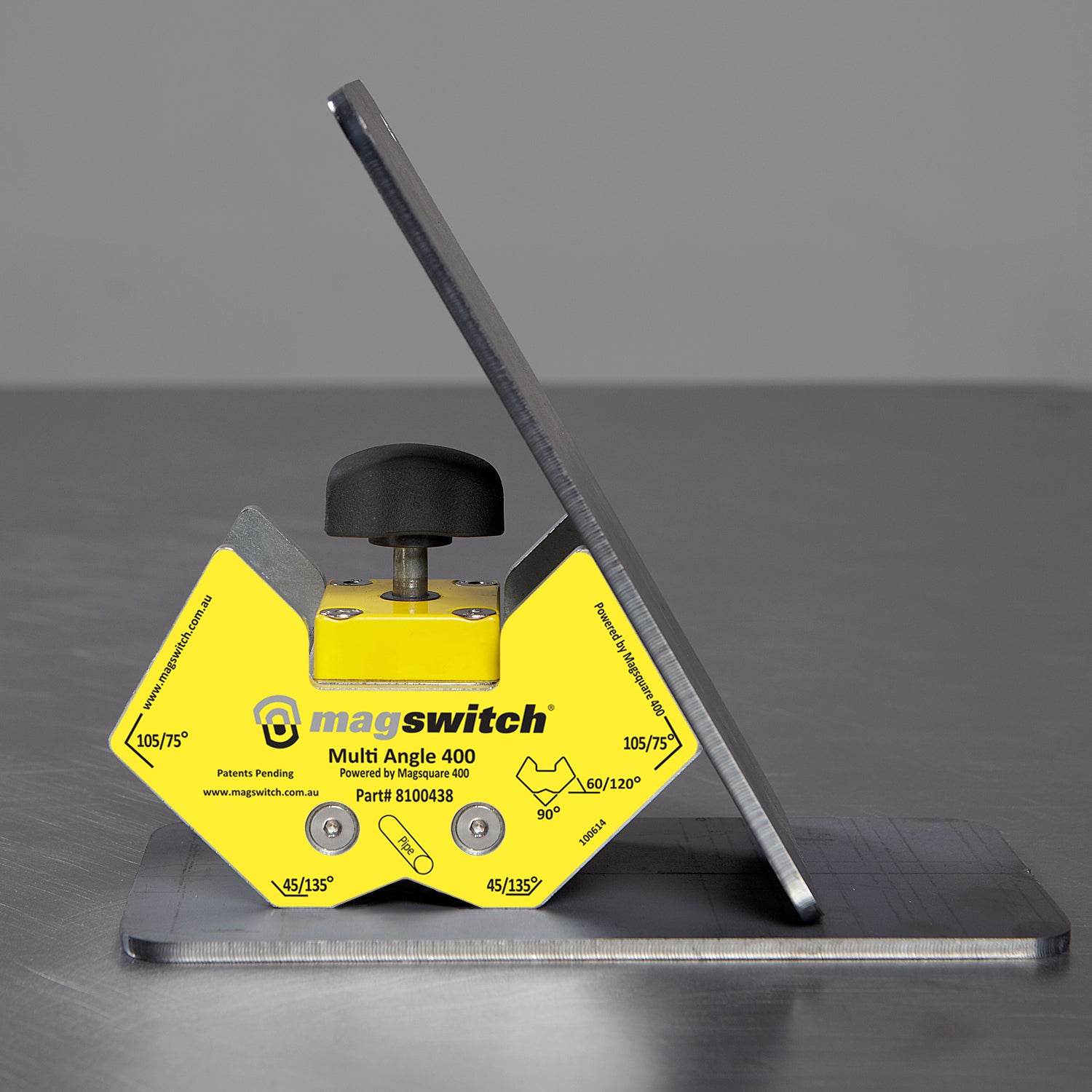

• Offers several common angles.
• Sturdy and compact.

SPECIFICATIONS

• Max Breakway: 205 lbs / 93 kg
• Full Saturation Thickness: 0.1345 in / 3.43 mm
• 2:1 Shear Working Load: 20 lbs / 9 kg
• Product Weight: 2.6 lbs / 1.2 kg
• Dimensions: 5.1 x 2.6 x 3.8 in / 129.5 x 66 x 96.5 mm
• Magnetic Pole Footprint: 64 mm x 41.26 mm

Downloads

MINI MULTI ANGLE 400 Downloads:

• Mini Angle 400 Spec Sheet
• Mini Angle 400 STEP File

Magswitch Downloads:

• Welding & Fabrication Brochure
• Magswitch Manual Catalog
