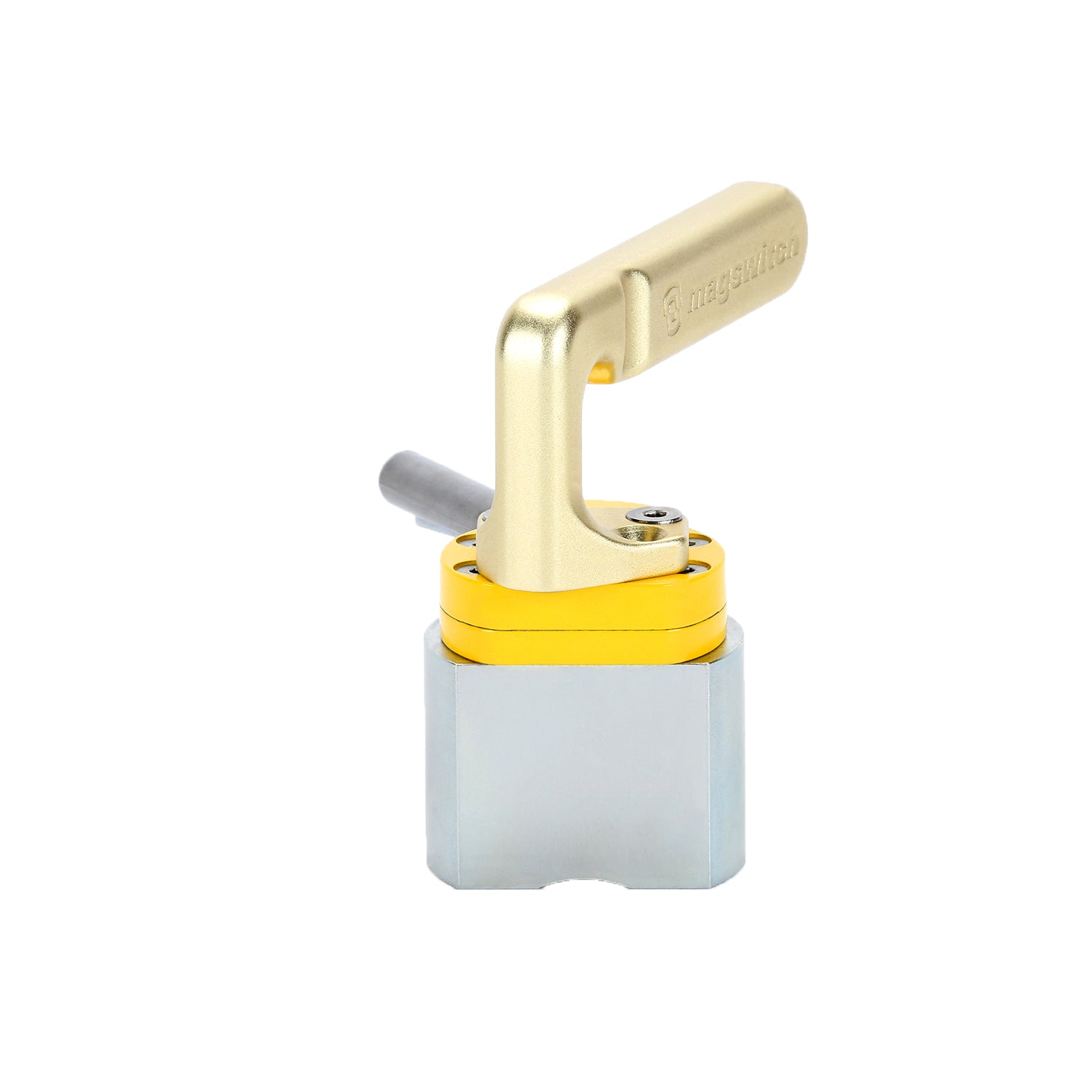

Magswitch Fixed Hand Lifter 400 - 8100810

Magswitch Fixed Hand Lifter 400 - 8100810 - Magswitch
Magswitch Fixed Hand Lifter 400 - 8100810 - Magswitch
Magswitch Fixed Hand Lifter 400 - 8100810 - Magswitch
Magswitch Fixed Hand Lifter 400 - 8100810 - Magswitch
Magswitch Fixed Hand Lifter 400 - 8100810 - Magswitch

Magswitch Fixed Hand Lifter 400 - 8100810

3 Reviews
Regular price
$180.99 USD
Sale price
$180.99 USD
Shipping calculated at checkout.
Quantity must be 1 or more

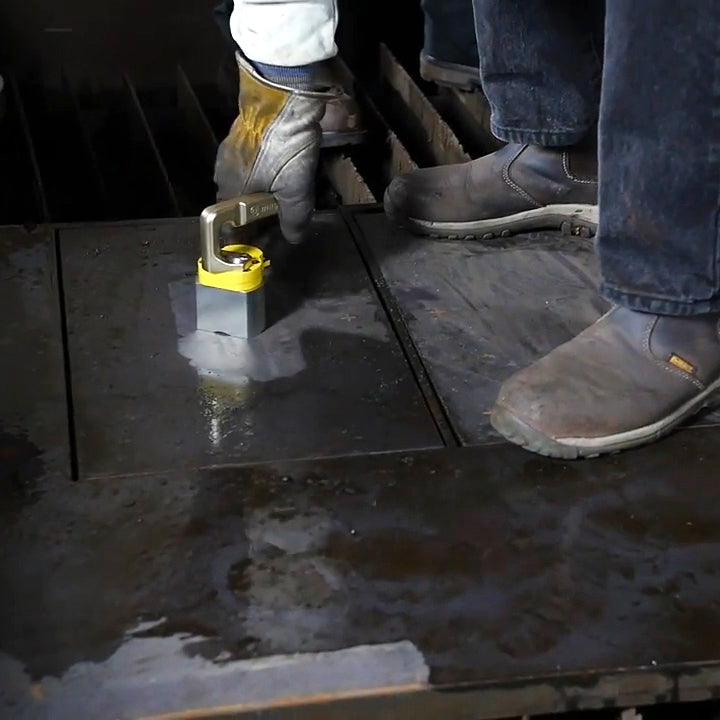

An easy one-handed operation to safely pick up and transport hot, sharp or dirty steel without touching it. Our fixed hand lifter features a locking mechanism that prevents accidental release. Easily lift a small steel sheet with 375 pounds of magnetic holding force.

FEATURES & BENEFITS

  • Magnetic field turns completely on and off mechanically.
  • Magnet stays clean.
  • Does not use an electrical power source.
  • Holds flat and round surfaces of steel.
  • Lightweight and easy to use.
  • Shallow field magnets allow for de-stacking of thin materials.
  • Ideal for small parts from the cutting table.

SPECIFICATIONS

  • Max Breakaway: 375 lbs (170 kg) on 1'' plate steel
  • 2:1 Shear Working Load: 3/8'' (9.5 mm)
  • Product Weight: 2.4 lbs (1 kg)
  • Dimensions: 6.9 x 4.9 x 5 in (175.2 x 124.4 x 127 mm)
  • Magnetic Pole Footprint: 67 mm x 42 mm
