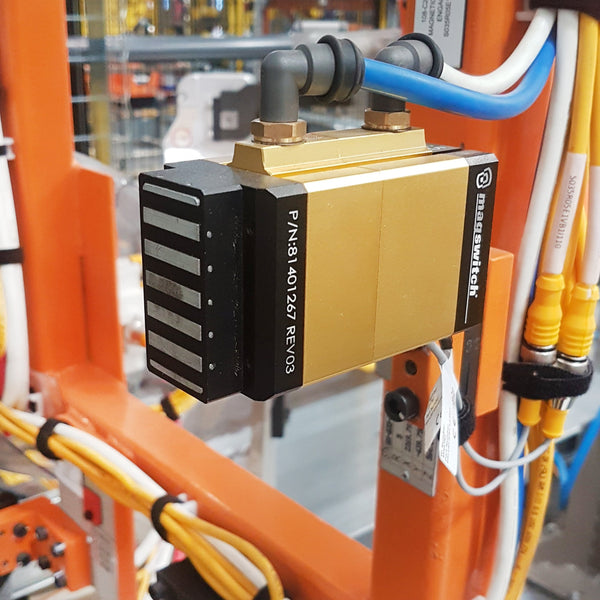

D85 Magnetic Gripper Tool for Robotic End of Arm Tooling (EOAT) - 81401267

D85 Robotic End of Arm Tooling (EOAT) Magnetic Gripper Tool and End Effector - 81401267
D85 Robotic End of Arm Tooling (EOAT) Magnetic Gripper Tool and End Effector - 81401267
D85 Robotic End of Arm Tooling (EOAT) Magnetic Gripper Tool and End Effector - 81401267
D85 Robotic End of Arm Tooling (EOAT) Magnetic Gripper Tool and End Effector - 81401267
D85 Robotic End of Arm Tooling (EOAT) Magnetic Gripper Tool and End Effector - 81401267
D85 Robotic End of Arm Tooling (EOAT) Magnetic Gripper Tool and End Effector - 81401267
D85 Robotic End of Arm Tooling (EOAT) Magnetic Gripper Tool and End Effector - 81401267

D85 Magnetic Gripper Tool for Robotic End of Arm Tooling (EOAT) - 81401267

Write a review
$625.00 USD
$625.00 USD
Shipping calculated at checkout.
Quantity must be 1 or more

The D85 is a narrow footprint, pneumatically actuated, ultra-shallow field array, magnetic gripper tool specifically designed to excel on thin sheet metal where traditional magnets cannot get a grip.

This exciting new end-of-arm tooling (EOAT) is Ideally suited for robotic automation processes including press loading/unloading, part de-racking, machine tending, pick and place, robotic picking, or ergonomic lift assist.  The D85 outpaces the competition with standard sensing options, NAAMS standard mounting, fail-safe operation, and the highest holding force per sq mm on thin sheet metal available in the market today.

FEATURES

Featuring advanced NAAMS mounting interfaces, the D85 ultra shallow field magnetic gripper outclasses alternatives with its:

  • Unparalleled holding power per square centimeter
  • Flexible mounting capabilities
  • Actuation times under 300ms
  • Fail-Safe Operation
  • Available ON/OFF Sensing
  • Full range of standard accessories
  • Ideal for sheet metal pick and place
  • Small footprint for locating complicated geometries
  • Low Air Pressure Requirement

Competitive Benefits

  • Improved hold force per square centimeter
  • Delivers the most hold force in a small footprint
  • Industry best de-stack capability – ultra shallow field technology enables the D85 to lift a single sheet of 2.0mm thickness from a stack of sheets
  • Fewer tools are required to move apart
  • Simpler end-of-arm designs
  • Magswitch is a world leader in magnetic single-sided gripping

Industrial Automation Applications

Automotive

Hoods, roofs, floor pans, door panels, dash panels, and roof bows are critical components in automotive manufacturing. Magswitch can facilitate safe and secure handling during assembly processes, reducing the risk of accidents and ensuring precise positioning.

Stamping Operations

Loading and unloading blanks and transferring parts require careful handling to maintain efficiency and safety. The Magswitch D series provides a reliable solution for these tasks, improving productivity and minimizing downtime.

White Goods Manufacturing

Handling large appliance shells (washing machines, clothing dryers, and dishwashers) demands robust equipment to ensure safety and efficiency. Magswitch offers a dependable solution for securely gripping and maneuvering these bulky components while streamlining production processes.

Consumer Goods Production

From grills and smokers to mowers and blowers, consumer goods consist of various components that require careful handling during assembly. Magswitch D series provides the stability and precision needed for these tasks, contributing to higher-quality end products.

Unlock unbeatable robotic automation performance with Magswitch's innovative D85 pneumatic magnetic gripper.

SPECIFICATIONS

Maximum Breakaway Force 1,2 548N
Maximum Shear 1,2 130N
Thickness for De-Stack 0.08 in/2.0 mm
Maximum Allowable Pressure 116 psi / 8 Bar
ON Target Actuation Pressure 55 psi / 3.8 Bar
Net Weight 1.46 lb / 0.67 kg
Air Port Thread
 2x G1/8 (1/8 BSP)
Mounting Options

Side - 1x NAAMS Ø6-M8-Ø6

Top - 1x 3/8-18 NPT
Magnetic Pole Footprint 2.13×1.12 in / 54.0×28.5 mm
Material Thickness – mm (in) 0.5
(.020)		 0.6
(.025)		 0.7
(.028)		 0.8
(.031)		 0.9
(.035)		 1
(.039)		 1.1
(.043)		 1.2
(.047)		 1.3
(.051)		 1.4
(.055)		 1.5
(.059)		 2
(.079)		 3
(.118)		 4
(.157)		 5
(.197)
Maximum Force – N1,25 163 177
 244 293
 356 415 432 456 465 480 494 532
 541
 545
 548
Required Air Pressure 4 – bar (psi) 2.4
(35)		 2.4
(35)		 2.8
(40)		 2.8
(40)		 3.1
(45)		 3.1
(45)		 3.1
(45)		 3.4
(50)		 3.4
(50)		 3.7
(53)		 3.7
(53)		 3.8
(55)		 3.8
(55)		 3.8
(55)		 3.8
(55)
  • SWL (Safe Working Load) = Maximum Force5/ Safety Force (≥5)
  • 1Determined in laboratory environment on 2” thick SAE1018 Steel with surface roughness 63 micro inches with optimized pole shoes. Many factors contribute to the actual breakaway force and safe working load in each application. Consult a Magswitch Applications Engineer and test the Magswitch in each application before deployment.
  • 2All data applies to unit with flat pole shoes installed.
  • 3Determined with SAE1018 Steel L=200mm W=200mm.
  • 4Values may vary by +/- 5%.
  • 5Maximum forces listed above are not safe lifting forces. Designer must take into account safety factor when specifying tool. Magswitch recommends SWL = 5:1 for most applications.

ACCESSORIES (Sold Separately)

Product SKU Description
270414 D85/D120 Sensor (TWO REQUIRED PER TOOL)
88001640 D85 Compliance Device
880501 Ball Mount, NAAMS, 28.5mm, Kit
