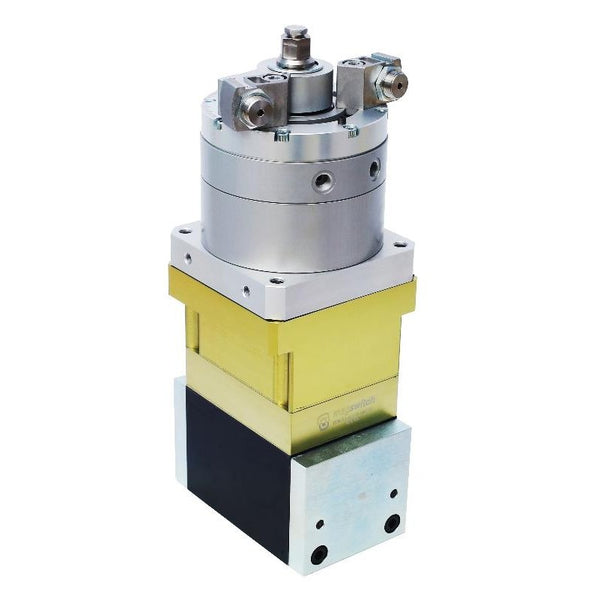

Magswitch AR110 delivers a high power to weight ratio to handle material applications of any magnitude. As one of our most versatile grippers, it's built to be customizable. Contact our engineers to customize the design and to fabricate custom pole shoes for your application at applications@magswitch.com.

FEATURES & BENEFITS

  • Compact single magnet design
  • Maximum power to weight ratio
  • Saves energy - 90% less air
  • Classic mounting is the most compact range
  • Customizable contact surface
  • Fail-safe operation

ACCESSORIES (Sold Separately)

Product SKU Product Description
8800073 Kit AR110 Combo Flat/Pipe Pole Standard
88001448 ARMOR KIT, AR110, BIN PICKING KIT
88001449 PSK, AR110, Flat, Armor Ready
88001450 PSK, AR110, 135deg V-CUT POLE SHOES, ARMOR READY
88001451 PSK, AR110, 155deg V-CUT POLE SHOES, ARMOR READY

*Pole Shoes are required. Not Included with base tool.

SPECIFICATIONS

Nominal Maximum Breakaway Force ¹,², ⁴
 12795N
Nominal Maximum Shear Force ¹,², ⁴
 850N
Minimum De-Stack Thickness
 1.5” / 38.1mm
Net Weight (with pole shoes)
 68.34lbs / 31kg
Minimum Actuation Pressure
 28psi / 1.9×105pa
Maximum Actuation Pressure
 70psi / 4.8×105pa
Air Port Thread
 G1/4
Magnetic Pole Footprint (with pole shoes)
 7.5x4.5in / 190 x 114mm




*All values are approximate please contact Magswitch Integrated Solutions for further detail.

**Max Breakaway determined in laboratory environment on 2” thick SAE1018 Steel with surface roughness 63 micro inches. Many factors contribute to the actual breakaway force in each application. Always test the magswitch in each application before deployment. Refer to the magswitch information booklet for more information.

  • SWL (Safe Working Load) = Maximum Force5/ Safety Force (≥5)
  • 1Determined in laboratory environment on 2” thick SAE1018 Steel with surface roughness 63 micro inches with optimized pole shoes. Many factors contribute to the actual breakaway force and safe working load in each application. Consult a Magswitch Applications Engineer and test the Magswitch in each application before deployment.
  • 2All data applies to unit with flat pole shoes installed.
  • 3Determined with SAE1018 Steel L=200mm W=200mm.
  • 4Values may vary by +/- 5%.
  • 5Maximum forces listed above are not safe lifting forces. Designer must take into account safety factor when specifying tool. Magswitch recommends SWL = 5:1 for most applications.
