Magswitch MLAY 1000x2 Lifting Magnet - 8100484

Write a review
Regular price
$1,349.99 USD
Sale price
$1,349.99 USD
Shipping calculated at checkout.
Quantity must be 1 or more

Built for heavy-duty lifting, our magnet technology is powerful without the need for a power source. Safely lock in the on and off position with a 3:1 Safe Working Load of 668 pounds. The pivoting lift hook offers the stability to lift from horizontal to vertical.

FEATURES & BENEFITS

  • Magnetic field turns completely on and off mechanically.
  • Magnet stays clean.
  • Does not use an electrical power source.

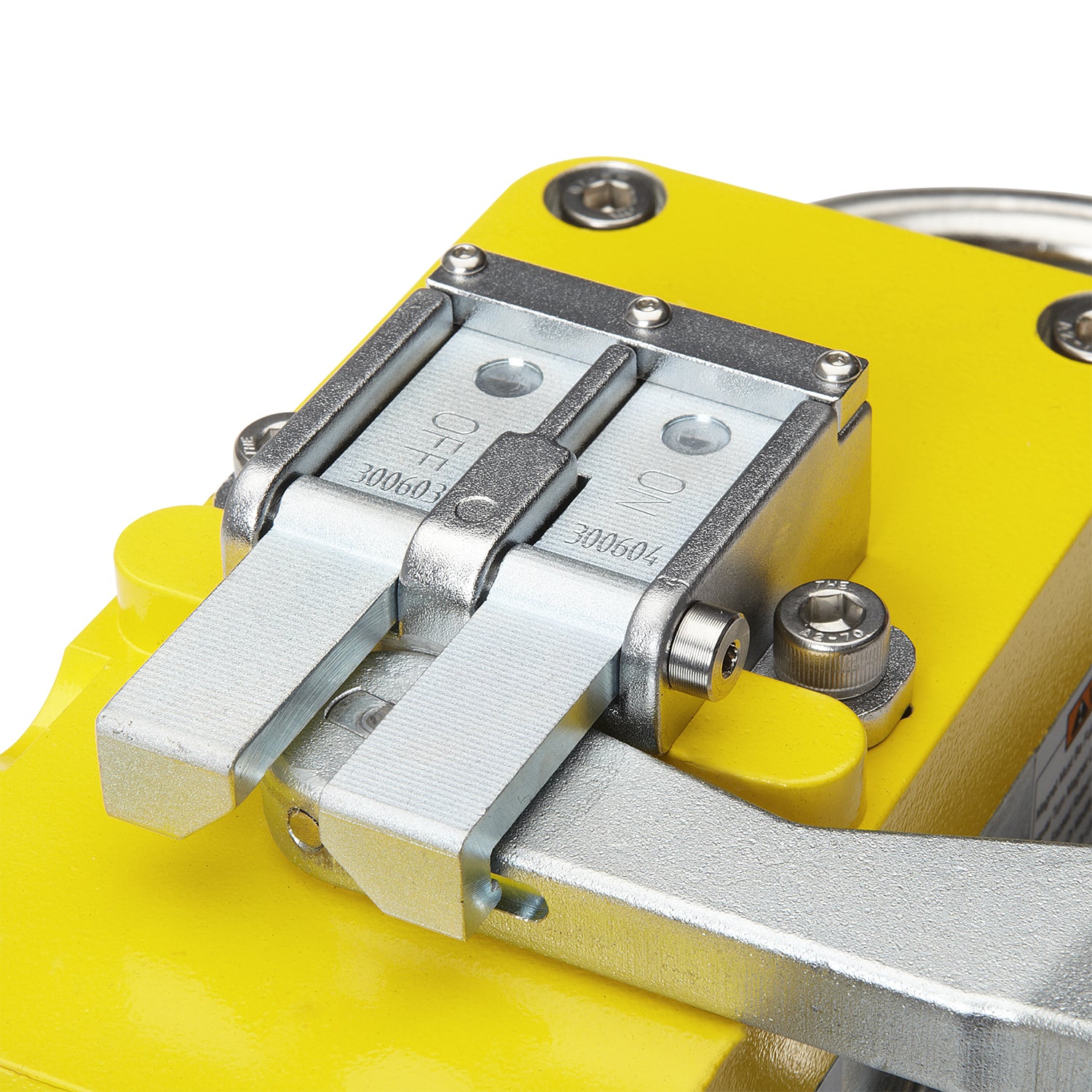

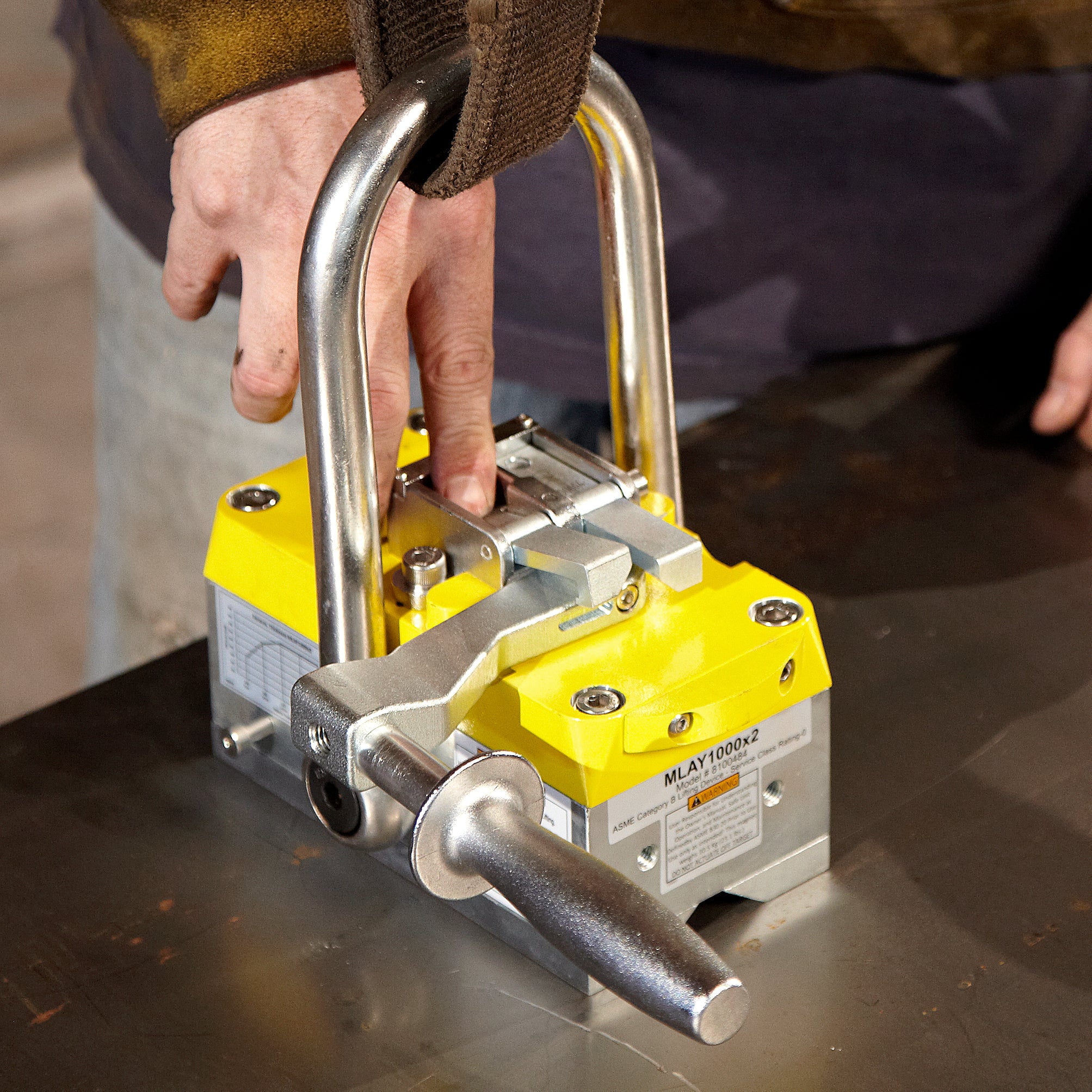

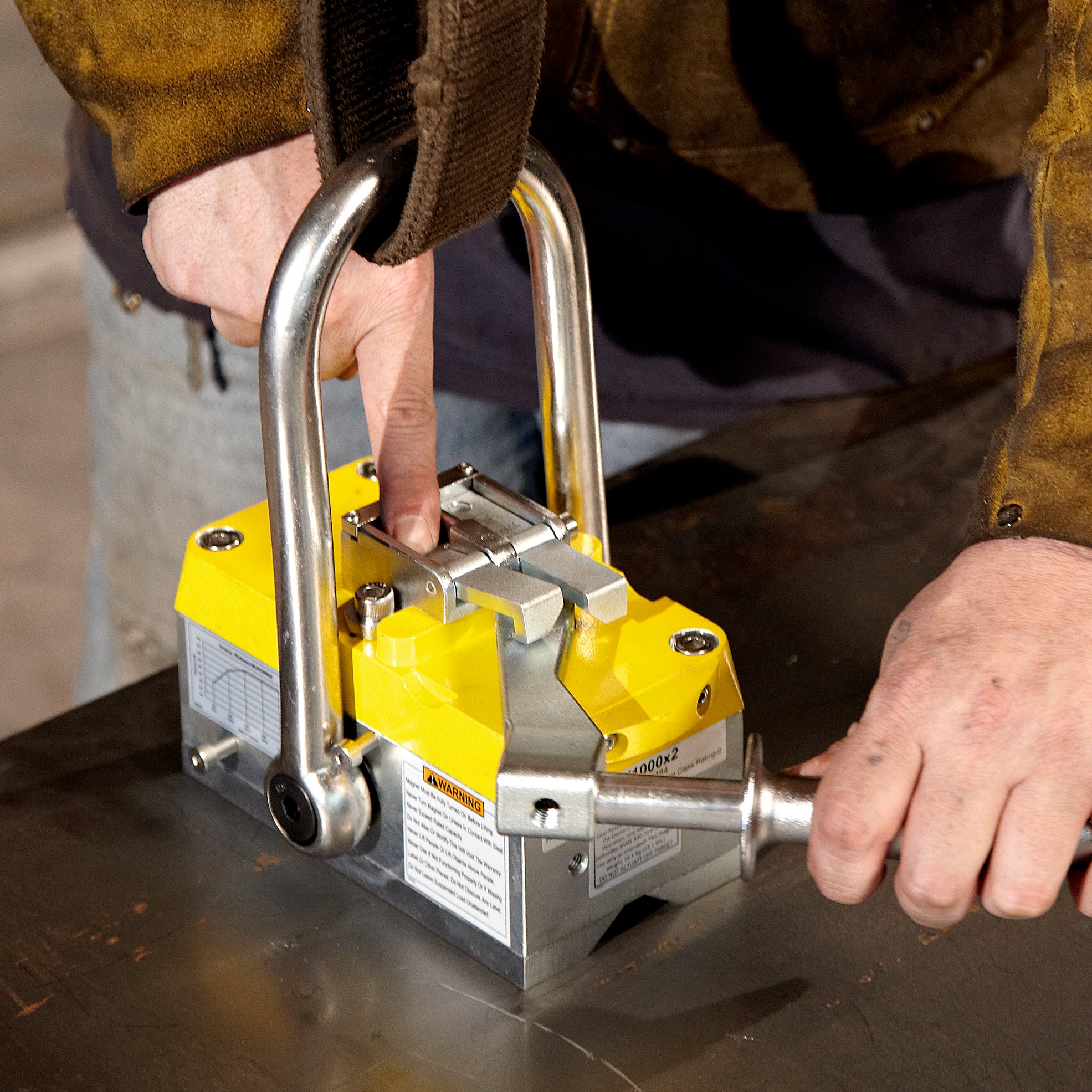

  • Lock On/Off handle.
  • Superior hold force on Thin steel (70 mm deep field).
  • Compact, lightweight and easy actuation.

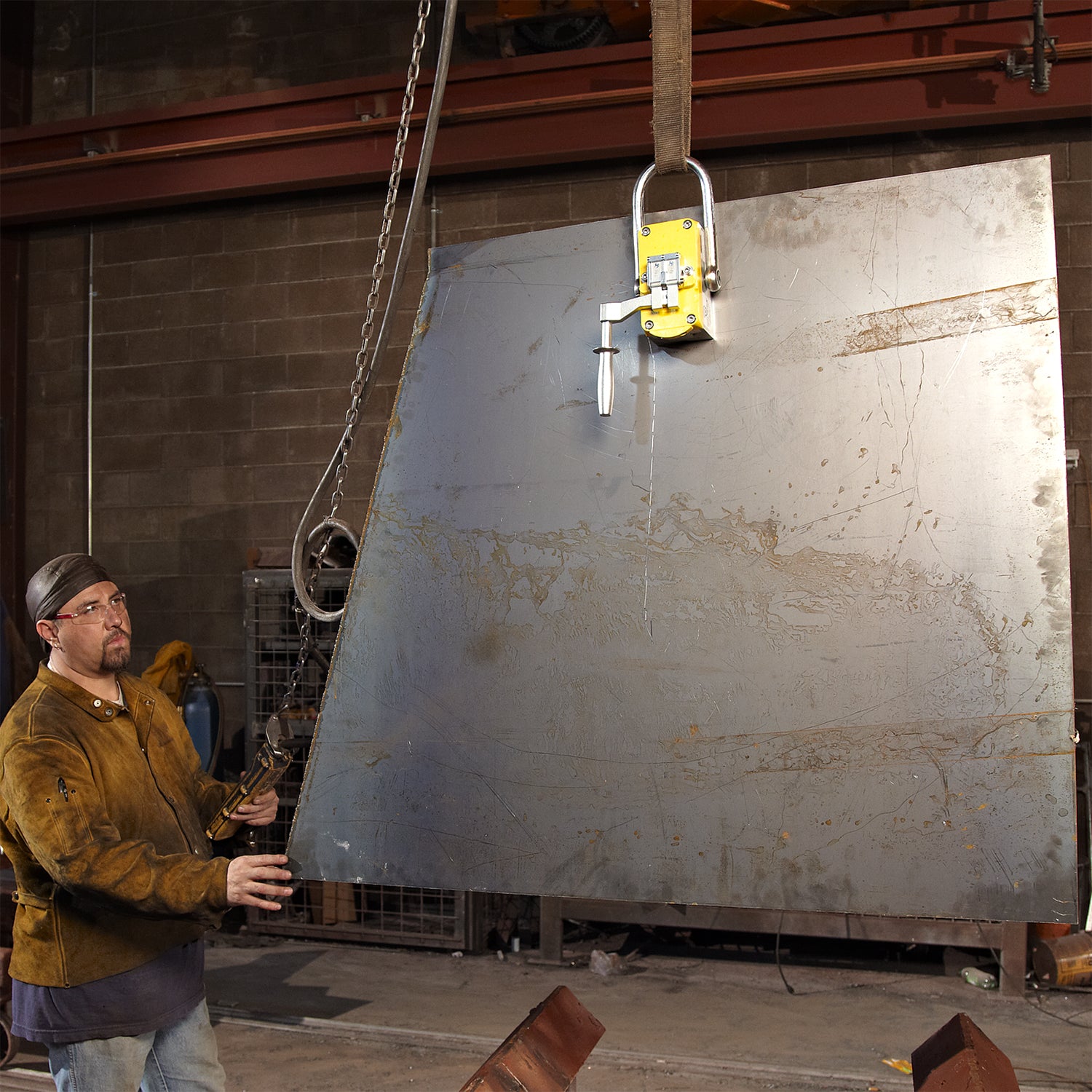

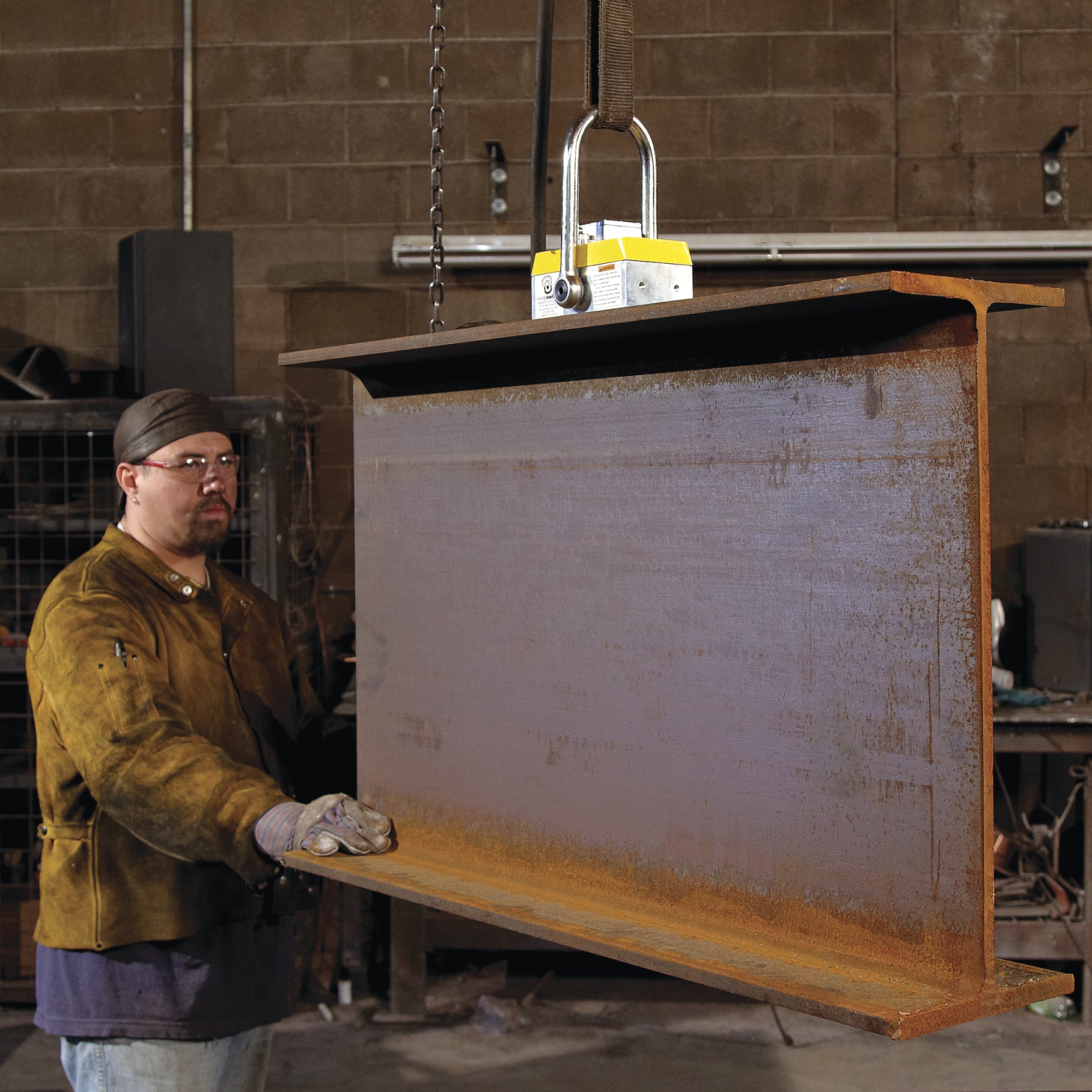

  • Lifts large flat sheets, beams, pipe.
  • Performs well on air gaps such as rust and dirt.
  • Customizable pole shoes to fit almost any application.

SPECIFICATIONS

  • Max Breakaway: 2004 lbs / 909 kg on 1'' steel
  • 3:1 Safe Working Load: 668 lbs / 303 kg
  • 2:1 Shear Working Load: 125 lbs / 56.7 kg
  • Full Saturation Thickness: 0.75 in / 19 mm
  • Minimum Thickness for De-Stack: 0.75 in / 19 mm
  • Product Weight: 23.8 lbs / 10.8 kg
  • Mounting Thread: M8x1.25
  • Overall Height: 12.6 x 7.7 x 10.5 in

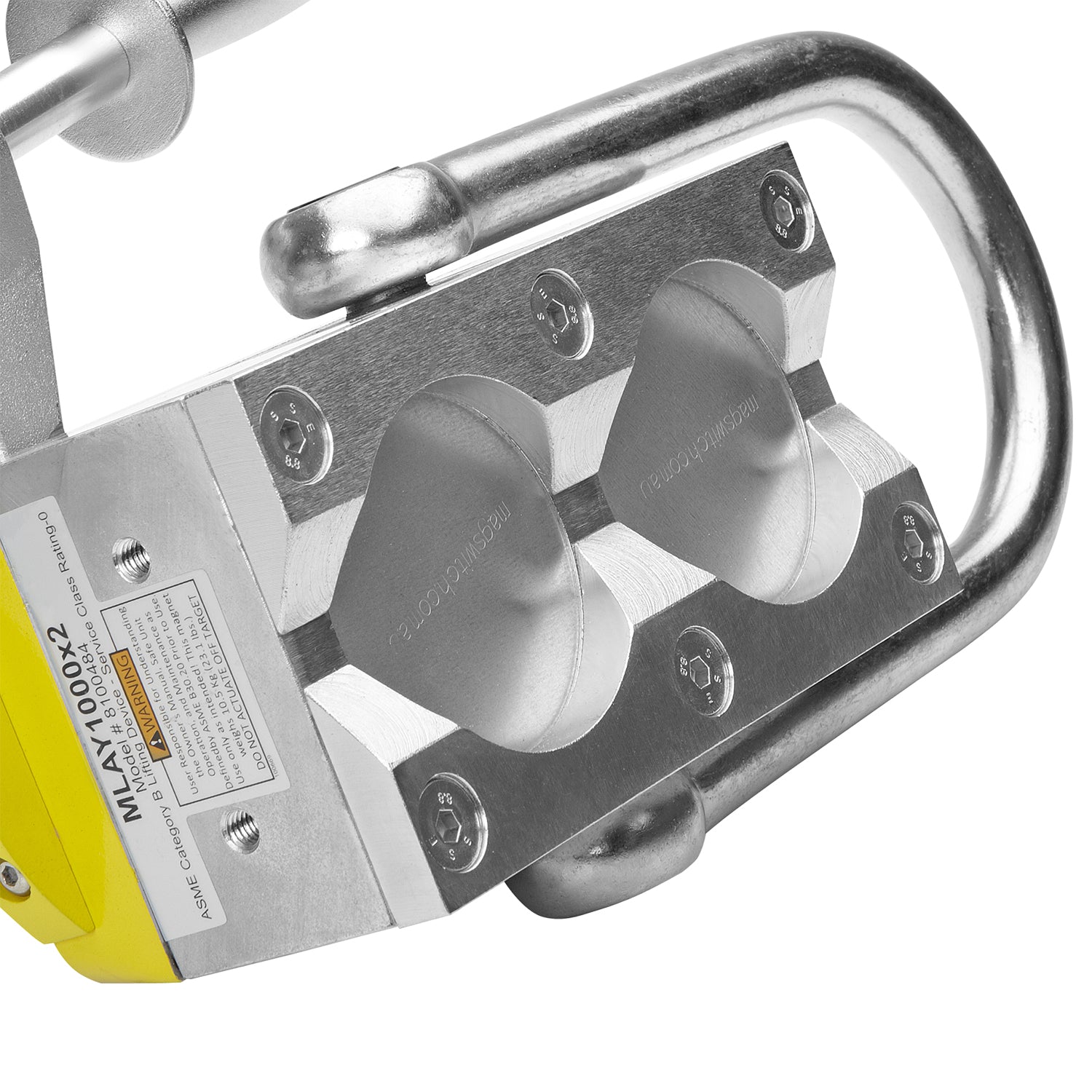

  • Magnetic Pole Footprint: 77.5 mm x 96 mm
